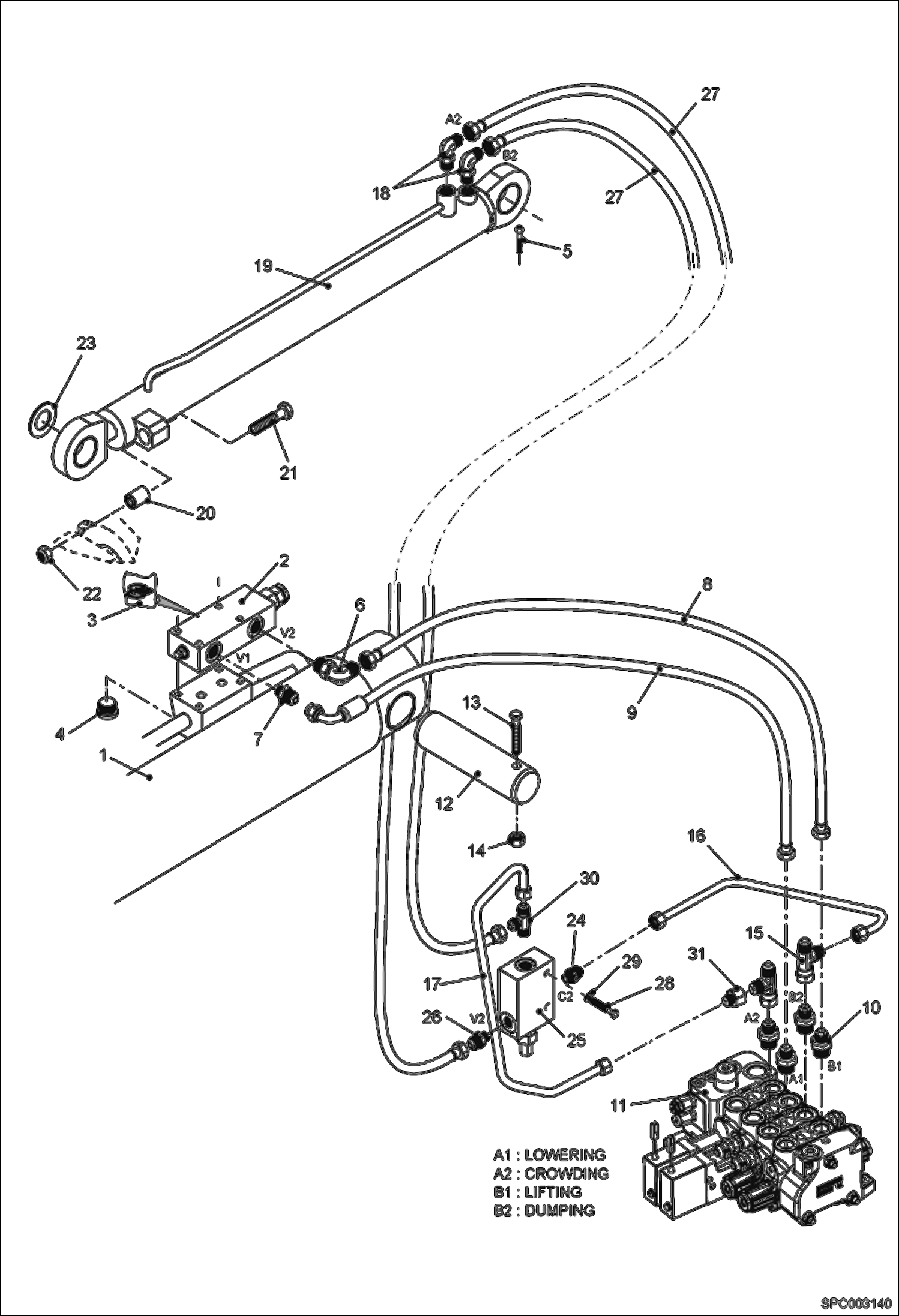

Запчасти Bobcat V518 LIFT & COMPENSATION CYLINDER INSTALLATION HYDRAULIC SYSTEM

1

92242-7

RAM

2

6918850

VALVE, SAFETY See Illustration SAFETY VALVE/ EM6303 Was 6909363 - A

3

93131-1

SEAL KIT

4

78743-2

PLUG

5

88299-3

SCREW

6

65285-9

ELBOW PIECE

7

014375-30H

UNION

8

6908571

HOSE TJ 7/8 12,7 TJ 7/8 L865 Was 103319-62T - A

9

102319-72J

HOSE Was 70224-1 - A

10

014375-02C

UNION 7/8 JIC 3/4 BSPP

11

6908553

DISTRIBUTOR See Illustration HYDRAULIC CONTROL VALVE/ EM1643

12

88713-3

PIN

13

7CM10100

SCREW HEX Was 65397-2 - A

14

100345-09A

NUT

15

008372-28F

UNION

16

6910426

PIPE

17

6910427

PIPE

18

010370-94B

ELBOW PIECE

19

88741-4

CYLINDER

20

88739-8

SILENT BLOCK

21

1CM1470

BOLT Was 52294-6 - A

22

100345-14F

NUT

23

009456-02D

WASHER

24

100375-39T

UNION 7/8 JIC 3/8 BSP

25

7168745

VALVE, SELF LEVELLING Was 98235-5 - C

26

100375-38S

UNION

27

70331-4

HOSE

28

1CM840

BOLT Was 1CM-840 - D

29

89519-3

WASHER

30

100372-22Z

UNION

31

100375-43X

REDUCER
