Запчасти Bobcat V518 OPERATOR CAB II (S/N 367612001 & Above) MAIN FRAME

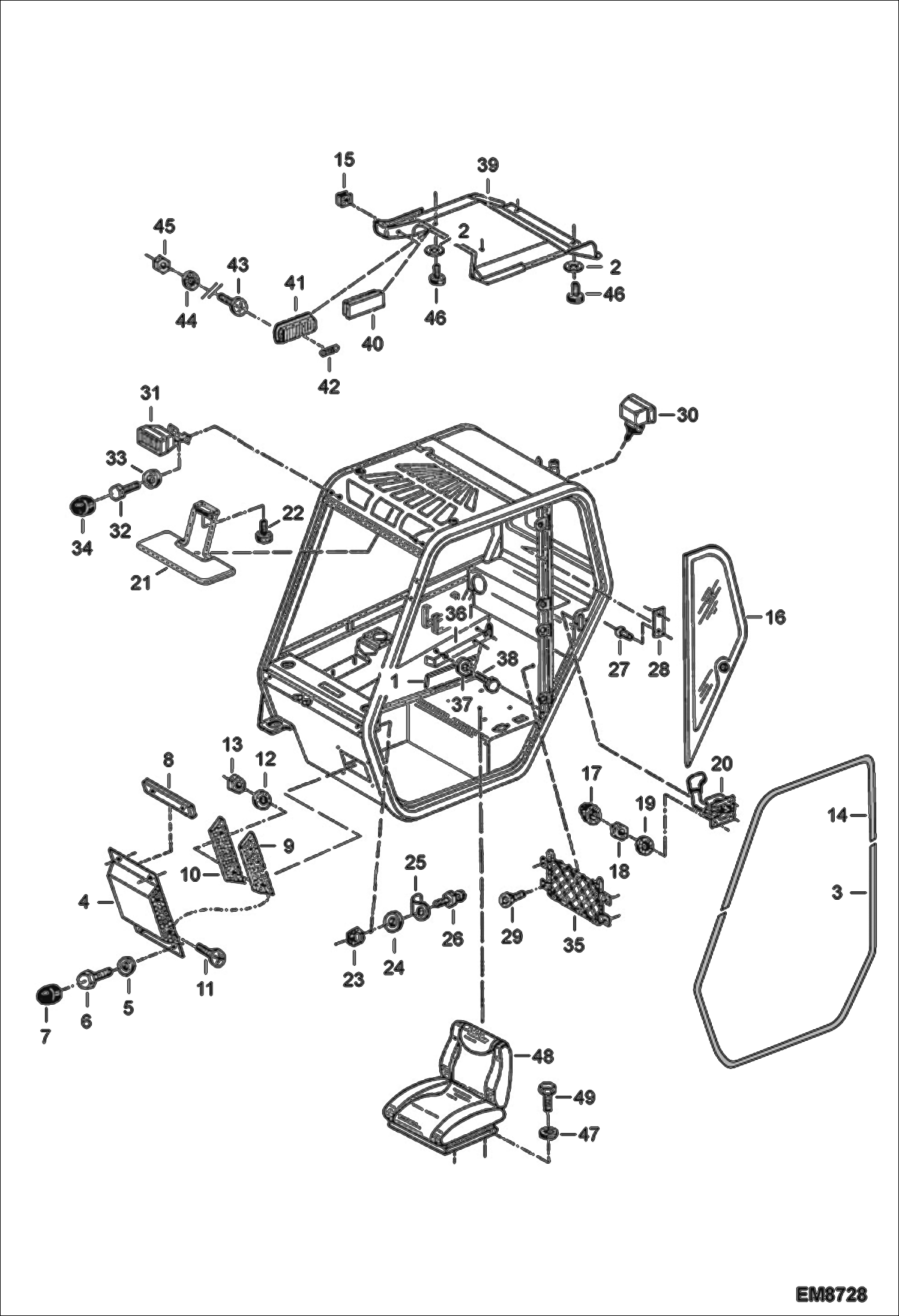

Схема запчастей Bobcat V518 - OPERATOR CAB II (S/N 367612001 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6910908

FOAM STRIP

2

000350-21R

WASHER

3

6914788

SEAL

4

6910503

FILTER BOX

5

01696-4

WASHER

6

01590-9

SCREW

7

63332-1

CAP

8

6910504

SEAL 1,00 m - Sold per meter

9

6910502

FILTER

10

6910929

INTERNAL GRID

11

6910505

SCREW

12

61378-6

WASHER

13

01664-2

NUT , HM4

14

6914787

SEAL

15

86167-4

NUT

16

6908789

WINDOW PANE,REAR LEFT

17

63332-1

CAP

18

01666-7

NUT

19

01717-8

WASHER

20

6910552

DOOR STOP

21

7024867

SUNSCREEN Was 79902-3 - B

22

6910697

SCREW

23

6910948

CATCH,LATCH

24

6910949

WASHER

25

6910947

LATCH PROTECTOR

26

6910946

CATCH,LATCH

27

97964-1

RIVET

28

6909961

PLATE , MFG

29

6910999

SCREW

30

78816-6

WORK LIGHT REAR Was 6909970 - B

31

78815-8

WORK LIGHT Was 6909971 - B

31

6960571

BULB Was 7200932 - A

32

01591-7

SCREW

33

29272-2

WASHER

34

63332-1

CAP

35

7193037

NET, MANUAL Was 75883-9 - B

36

97504-5

HANDLE Was 6909920 - B

37

01717-8

WASHER

38

100338-23F

SCREW

39

6910878

COWLING

40

79581-5

CAP

41

7228070

LIGHT, DOME Was 101438-93V - A

42

7228077

BULB, LIGHT Was 01443-1 - A

43

6910505

SCREW

44

007346-02F

WASHER

45

100345-04U

NUT

46

72186-0

SCREW

47

89519-3

WASHER

48

96039-3

SEAT ( US STANDARD ) See Illustration SEAT/ EM10100

49

1CM820

BOLT Was 01596-6 - B

Выбрано товаров: 50
