Запчасти Bobcat V518 AIR CONDITIONING INSTALLATION ACCESSORIES & OPTIONS

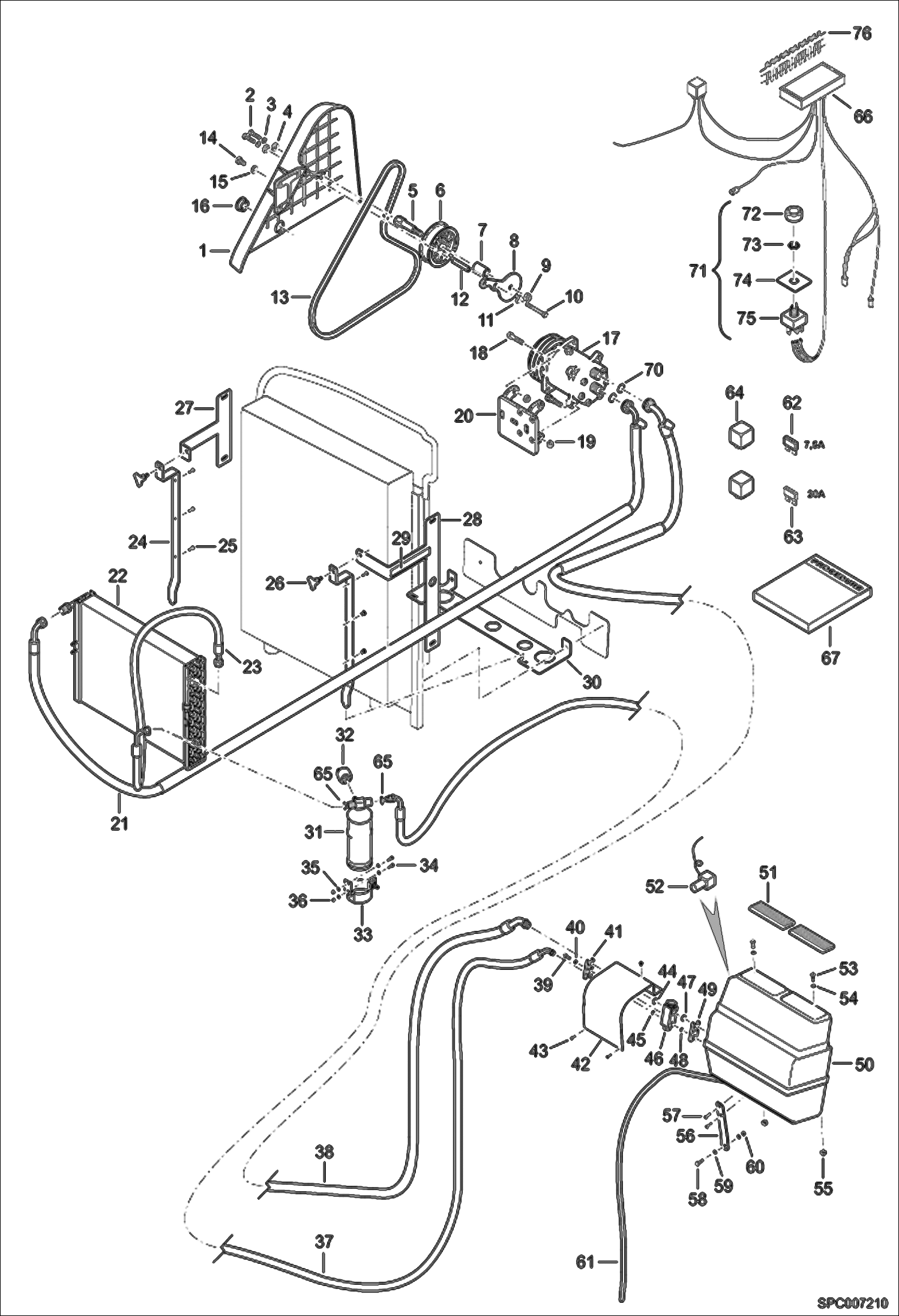

Схема запчастей Bobcat V518 - AIR CONDITIONING INSTALLATION ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6919502

BELT PROTECTOR

2

01578-4

SCREW

3

01697-2

WASHER

4

97610-0

WASHER

5

6908181

SPINDLE

6

90531-5

ROLLER

7

6914328

SPACER

8

6919954

PULLEY SUPPORT Was 6908180 - A

9

000345-96E

NUT

10

01522-2

SCREW

11

000350-20Q

WASHER

12

100345-09A

NUT

13

90545-5

BELT

14

01605-5

SCREW

15

000350-03W

WASHER

16

74335-1

PLUG

17

89644-9

COMPRESSOR, A/C

18

54009-6

SCREW

19

100345-09A

NUT

20

6909391

COMPRESSOR BRACKET

21

89647-2

HOSE

22

81439-2

CONDENSOR

23

88844-6

HOSE

24

6911207

SUPPORT

25

66679-2

RIVET

26

85171-7

BUTTON

27

6911209

SUPPORT

28

6911210

SUPPORT

29

6913148

ADHESIVE SPONGE

30

6911201

SUPPORT

31

89643-1

FILTER

32

89642-3

CONNECTOR

33

89641-5

BRACKET

34

01478-7

SCREW

35

01695-6

WASHER

36

100345-05V

NUT

37

89649-8

HOSE

38

89648-0

HOSE

39

15354-4

SCREW

40

13416-3

WASHER

41

88826-3

BRACKET

42

88827-1

COVER

43

6910951

SCREW

44

98071-4

O-RING

45

98068-0

O-RING

46

97358-6

VALVE

47

7009978

O-RING Was 98070-6 - A

48

98069-8

O RING

49

97359-4

PLATE

50

96082-3

EVAPORATOR

51

97265-3

VENT PLASTIC

52

97432-9

THERMOSTAT CONTROL

53

01591-7

SCREW

54

01696-4

WASHER

55

71921-1

NUT

56

88830-5

PLATE

57

66679-2

RIVET

58

01591-7

SCREW

59

01696-4

WASHER

60

100345-06W

NUT

61

88848-7

HOSE, WATER 79'' (2 M) LONG

62

57792-4

FUSE 7.5A 7.5A

63

6625575

FUSE, 20A 20A

64

80224-9

RELAY

65

98068-0

O-RING

66

96083-1

HARNESS

67

AIRCO MANUAL

70

7009978

O-RING Was 98070-6 - A

71

88825-5

SWITCH W/Ref. 72-75

72

6914433

CLIM BUTTON

73

6925361

NUT

74

6914431

PLATE

75

88825-5

SWITCH Was 6925362 - A

76

6921416

PROTECTOR

Выбрано товаров: 74
