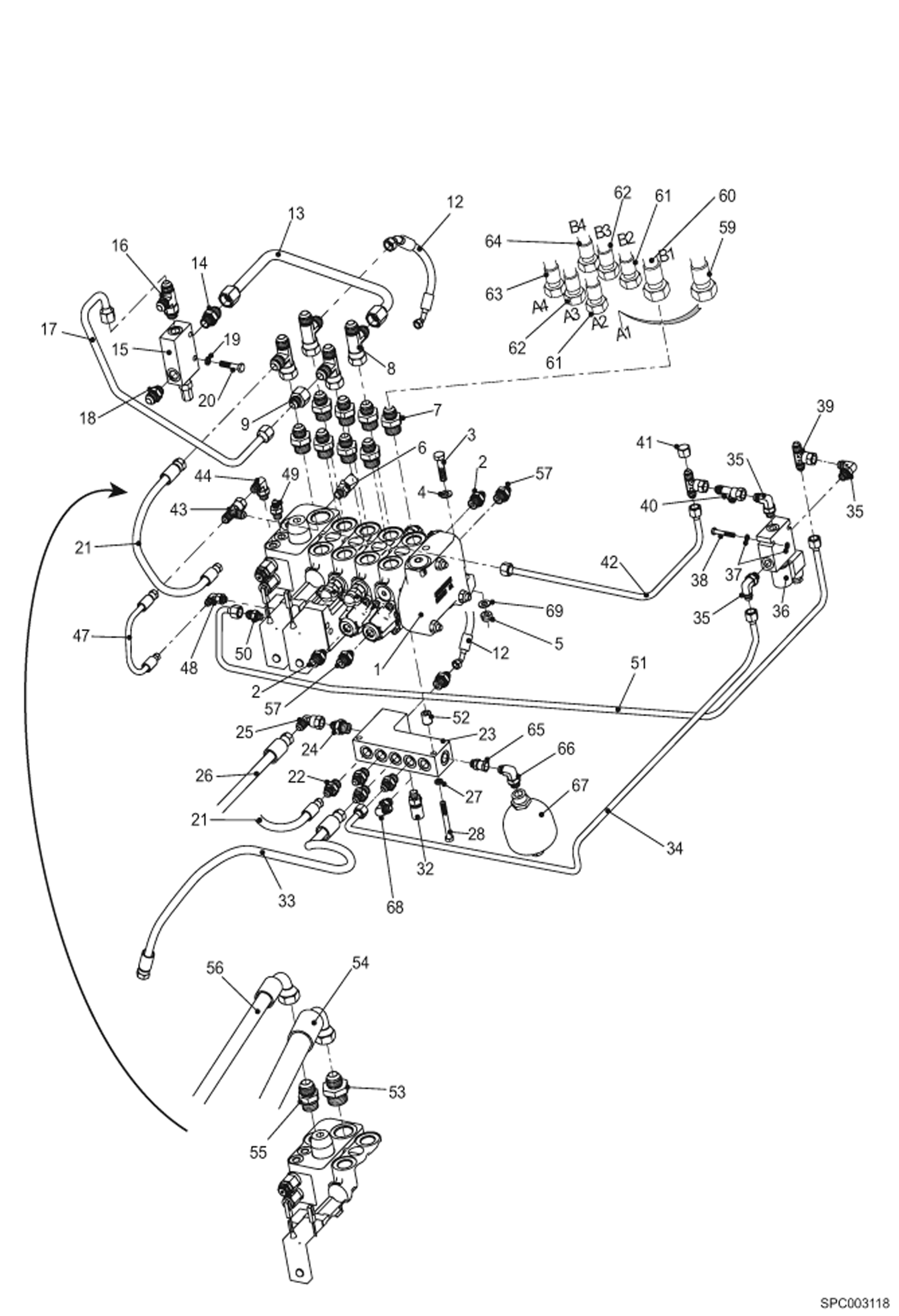

Запчасти Bobcat V518 HYDRAULIC CONTROL VALVE INSTALLATION HYDRAULIC SYSTEM

1

CONTROL VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM1643 Was 6908552 - A

2

022375-31Z

UNION

3

1CM1045

BOLT Was 10944-7 - A

4

000350-21R

WASHER Was 89516-9 - B

5

100345-09A

NUT

6

54367-8

SWITCH, PRESSURE

7

014375-02C

UNION 7/8 JIC 3/4 BSPP

8

008372-28F

UNION

9

100375-43X

REDUCER

12

6913560

HOSE

13

6910426

PIPE

14

100375-39T

UNION 7/8 JIC 3/8 BSP

15

7168745

VALVE, SELF LEVELLING Was 98235-5 - C

16

100372-22Z

UNION

17

6910427

PIPE

18

100375-38S

UNION

19

89519-3

WASHER

20

1CM840

BOLT Was 1CM-840 - D

21

6913559

HOSE

22

77013-1

UNION

23

6910660

HYD BLOCK

24

77013-1

UNION

25

100370-29P

ELBOW PIECE

26

96808-1

HOSE

27

89519-3

WASHER

28

01511-5

SCREW

32

54367-8

SWITCH, PRESSURE

33

67198-2

HOSE ASSEM

34

6910430

PIPE

35

100370-18C

ELBOW PIECE

36

6910208

VALVE 3/2 CE12V

37

94574-1

WASHER

38

000326-25M

SCREW

39

100372-23A

UNION

40

100372-06G

UNION

41

100374-18M

PLUG

42

6910429

PIPE

43

100372-06G

UNION

44

100370-18C

ELBOW PIECE

47

6913561

HOSE

48

85955-3

ELBOW , 7/16 JIC 1/8 BSPP

49

022375-28V

UNION

50

82181-9

UNION 9/16 JIC 1/8 BSPP

51

6910428

PIPE

52

6910771

WASHER

53

68609-7

UNION 1.1/16 JIC 1 BSPP

54

6911776

FLEXIBLE HOSE

55

100375-40U

UNION

56

6911181

HOSE

57

022375-31Z

UNION

59

102319-72J

HOSE Was 70224-1 - A

60

6908571

HOSE TJ 7/8 12,7 TJ 7/8 L865

61

76401-9

HOSE

62

76366-4

HOSE +

63

6908561

HOSE TJ 7/8 12,7 MJ 7/8 L610

64

76366-4

HOSE +

65

100375-42W

ADAPTER

66

010370-93A

ELBOW PIECE

67

6911487

ACCUMULATOR 0,7L SB0210-0,75EI

68

6918652

ELBOW UNION Was 77075-0 - B

69

000350-21R

WASHER Was 01698-0 - B
