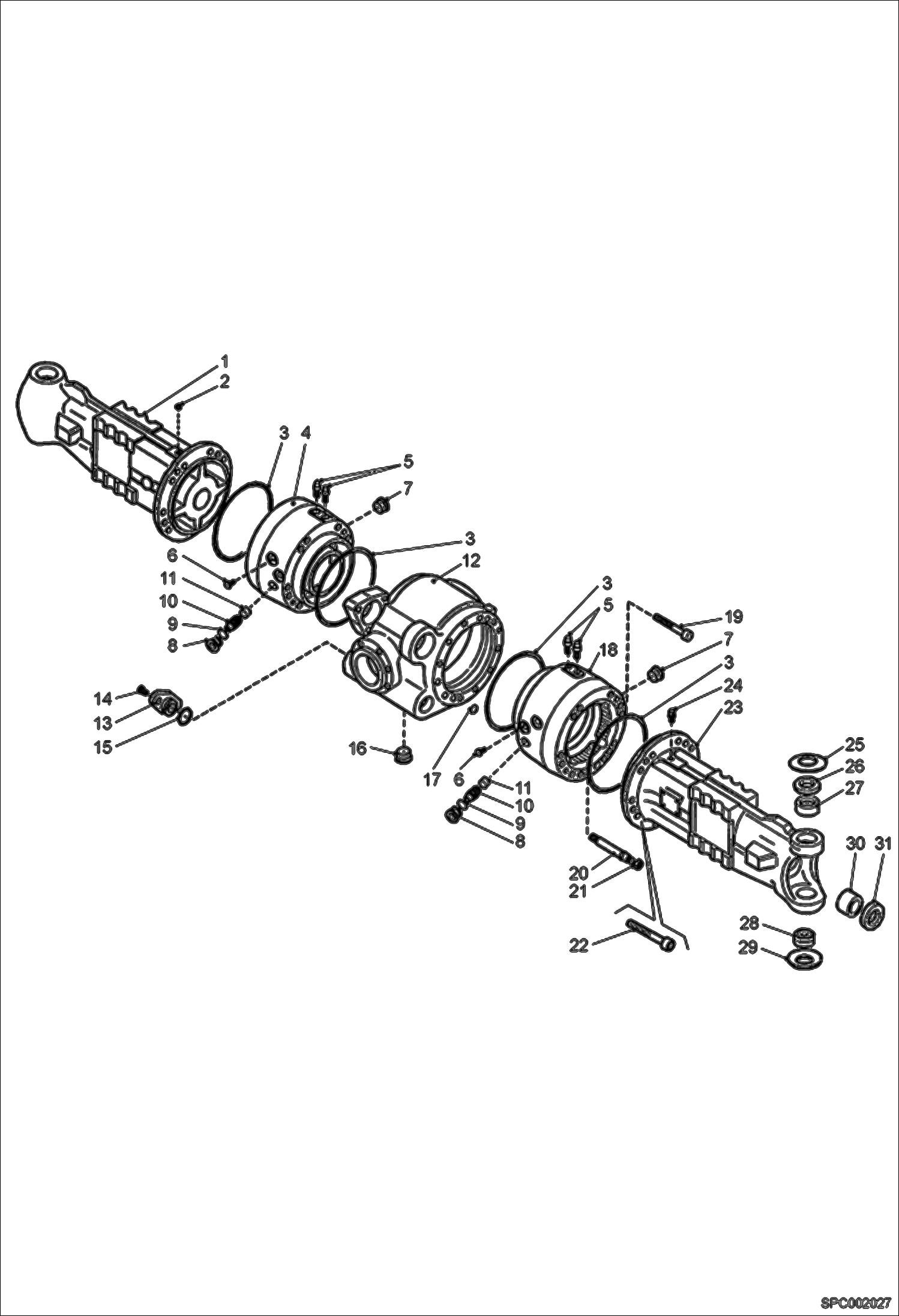

Запчасти Bobcat V518 HOUSING - FRONT AXLE DRIVE SYSTEM

1

98659-6

TRUMPET

2

100458-02A

GREASE NIPPLE

2

75838-3

GREASE NIPPLE

3

75710-4

O RING

4

89905-4

BRACKET

5

63238-0

SCREW

6

64842-8

PLUG

7

100374-32C

PLUG

8

89913-8

SCREW M22X1.5

9

89915-3

O RING

10

89908-8

SCREW

11

89917-9

PIN

12

89955-9

HOUSING

13

75708-8

COVER PLATE

14

4CM825

BOLT Was 01597-4 - B

15

75709-6

O RING

16

100374-32C

PLUG

17

93084-2

O RING

18

89916-1

BRACKET

19

75716-1

SCREW

20

89914-6

STUD

21

89912-0

NUT

22

75715-3

SCREW

23

98659-6

TRUMPET

24

75717-9

BREATHER

24

100505-24H

BREATHER

25

66011-8

WASHER

26

71131-7

WASHER

27

101288-35D

BUSHING

27

6912908

BUSH

28

100400-19P

BUSHING

29

66010-0

WASHER

30

100288-63N

BUSHING

31

98660-4

OIL SEAL
