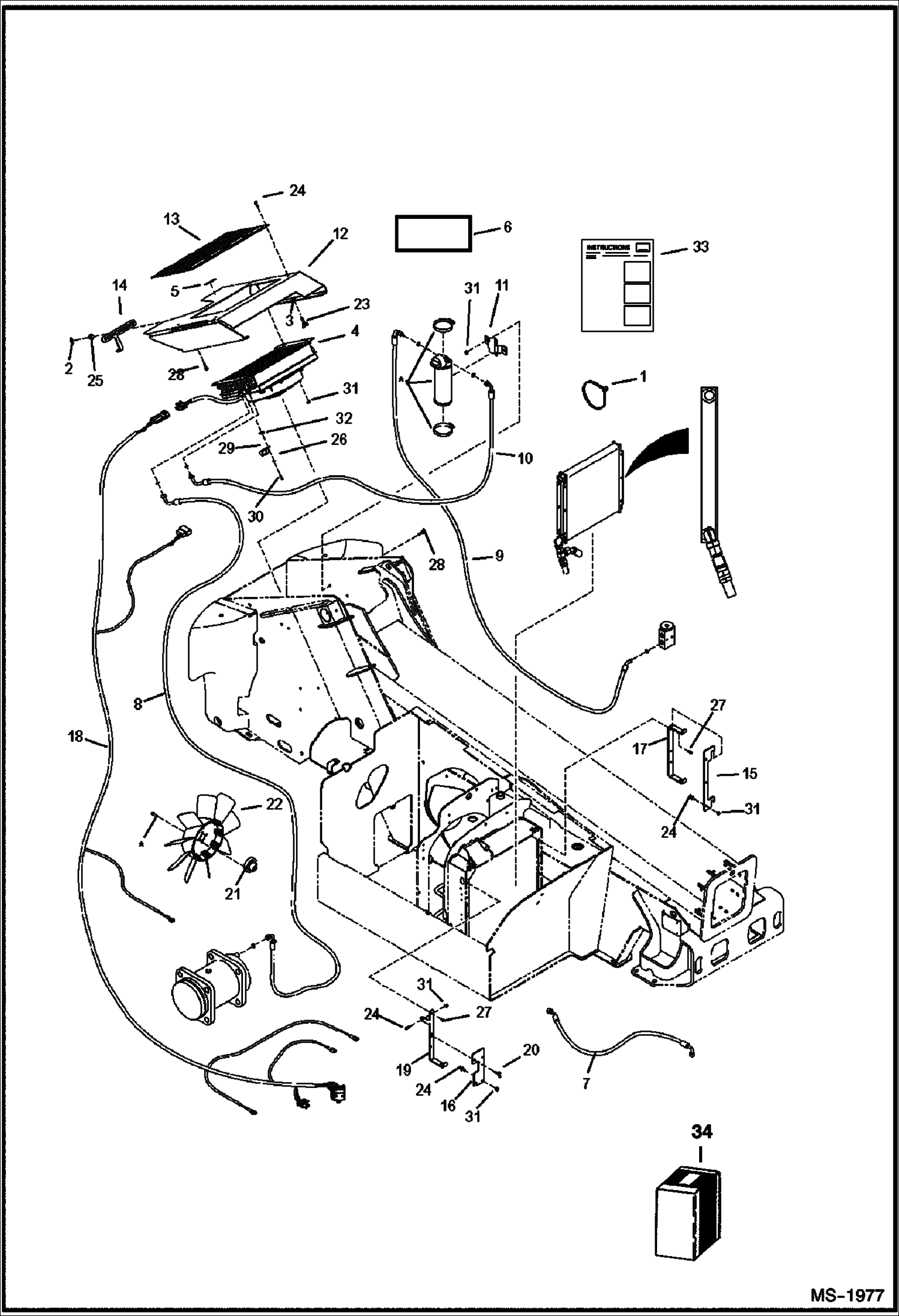

Запчасти Bobcat V518 AIR CONDITIONER CONDENSER RELOCATION KIT ACCESSORIES & OPTIONS

1

6624289

STRAP, TIE

2

6631418

RING, RETAINING

3

6676169

NUT

4

CONDENSOR NLA - Order 6687622 HVAC - Was 6681464 - A

5

6700388

DECAL diesel

6

6809605

DECAL, WARNING

7

7101934

HOSE

8

7100387

HOSE DISCHARGE

9

7100388

HOSE LIQUID

10

7100389

HOSE LIQUID

11

7100410

PLATE DRYER MOUNT

12

7100463

COVER A/C

13

7100464

COVER LOUVERED

14

7100574

BRACKET

15

7100738

BRACKET COOLER LH

16

7100739

BRACKET COOLER RH

17

7100740

BRACKET RAD LH

18

7100978

HARNESS COND FAN

19

7101355

BRACKET RAD RH

20

7101563

BOLT

21

SPACER NLA - Was 7101768 - A

22

7101769

FAN

23

7101776

BOLT

24

30CM820

BOLT

25

17EM100

WASHER

26

25E12

WSHR

27

30CM616

BOLT

28

30CM830

BOLT

29

31H46

CLAMP

30

46G1016

SCREW

31

51DM8

NUT

32

6814436

WASHER tube

33

6902656

INSTRUCTIONS

34

7101610

KIT COOLING V518
