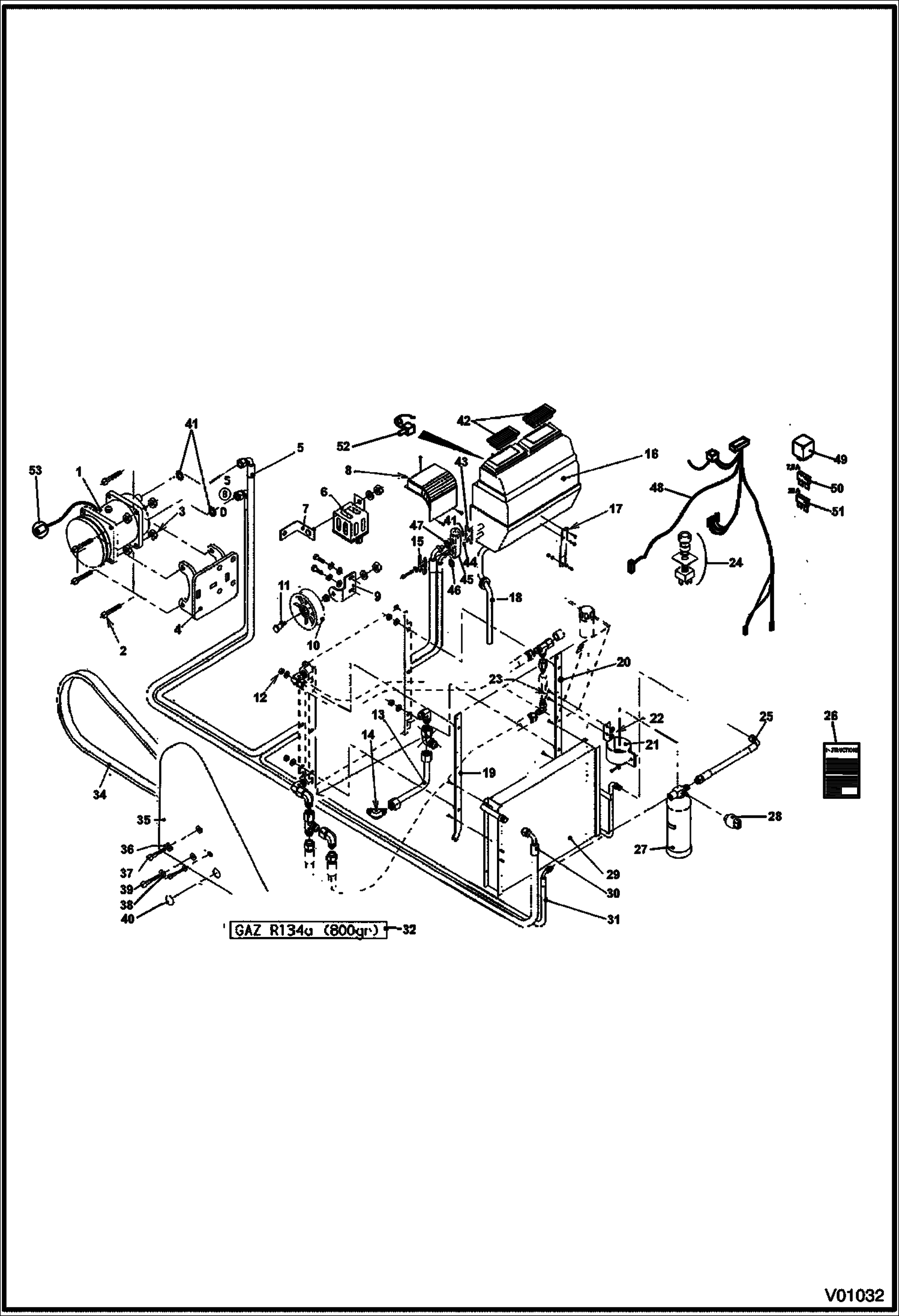

Запчасти Bobcat V518 AIR CONDITIONING 367011001 AND ABOVE ACCESSORIES & OPTIONS

1

89644-9

COMPRESSOR, A/C

2

54009-6

SCREW

3

100345-09A

NUT

4

6909391

COMPRESSOR BRACKET Was 85616-1 - A

5

89648-0

HOSE

6

88845-3

BOX FOR RESISTANCE

7

88846-1

BRACKET

8

88827-1

COVER

9

90533-1

BRACKET

10

90531-5

ROLLER

11

90535-6

PIN

12

51851-4

NUT

13

90528-1

PIPE

14

64052-4

ELBOW PIECE

15

88826-3

BRACKET

16

96082-3

EVAPORATOR

17

88830-5

PLATE

18

88848-7

HOSE, WATER 79'' (2 M) LONG

19

85609-6

BRACKET

20

85613-8

BRACKET

21

89641-5

BRACKET

22

01695-6

WASHER

23

66679-2

RIVET

24

88825-5

SWITCH

25

88844-6

HOSE

26

97515-1

ALARM Was 97514-4 - A

27

89643-1

FILTER

28

89642-3

CONNECTOR

29

81439-2

CONDENSOR

30

89647-2

HOSE

31

89649-8

HOSE

32

88030-2

A/C GAS 0,800L

34

90545-5

BELT

35

90549-7

COVER

36

11463-7

WASHER

37

01512-3

SCREW

38

13416-3

WASHER

39

94192-2

SCREW

40

90736-0

CUP

41

98070-6

O RING

42

97265-3

VENT PLASTIC

43

97359-4

PLATE

44

98069-8

O RING

45

97358-6

VALVE

46

98068-0

O-RING

47

98071-4

O-RING

48

96083-1

HARNESS

49

80224-9

RELAY

50

57792-4

FUSE 7.5A 7.5A

51

6625575

FUSE, 20A

52

97432-9

THERMOSTAT CONTROL

53

6910721

CONNECTOR FOR COMPRESSOR
