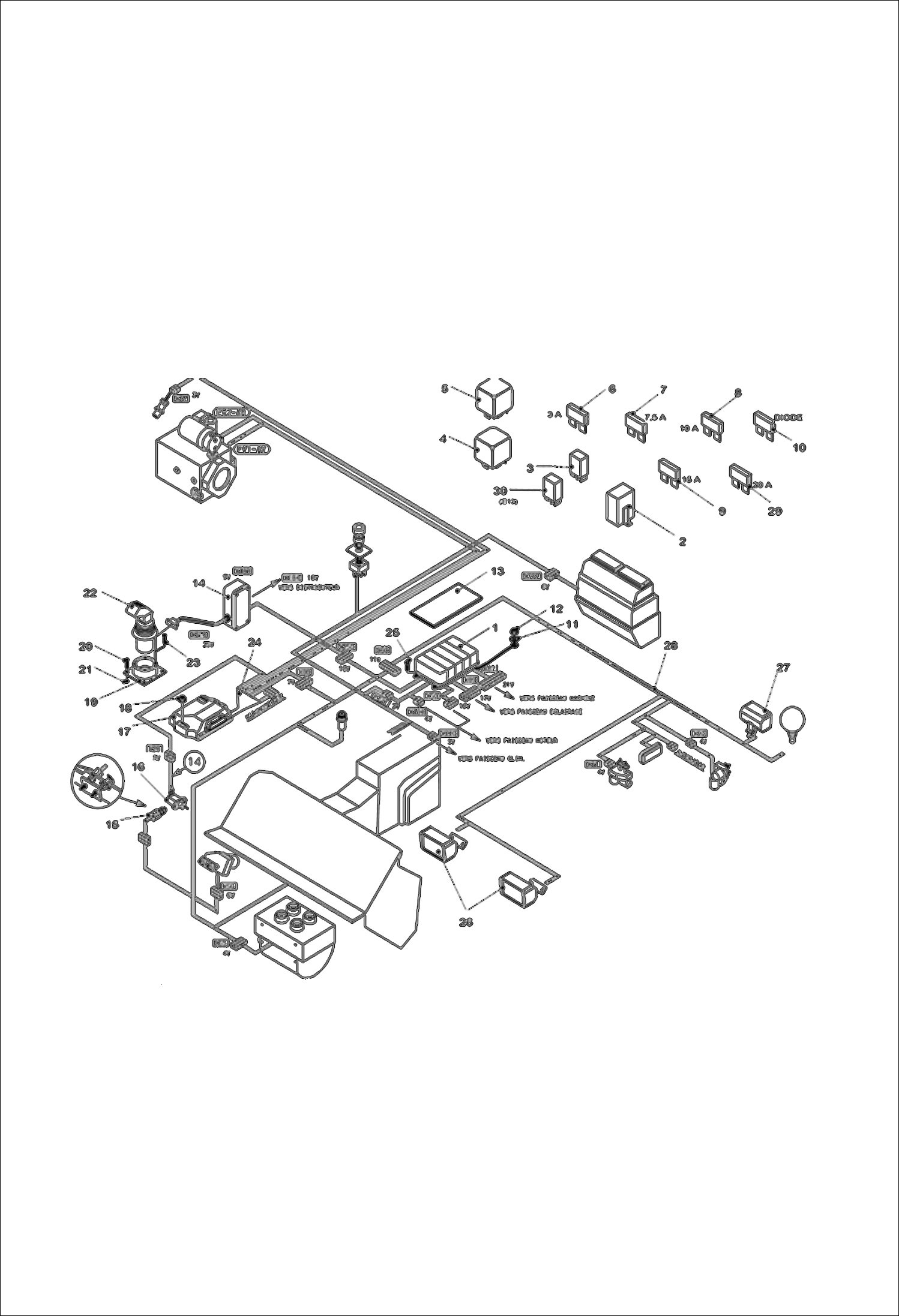

Запчасти Bobcat V518 ELECTRICAL - CONTROL PANEL 367011001 - 367012517 ELECTRICAL SYSTEM

1

96619-2

HARNESS W/Ref. 2-10 - Fuse Box W/Harness

2

96623-4

WINKER RELAY

3

6910955

RELAY,MICRO Was 96618-4 - A

4

79930-4

RELAY black

5

100411-05U

RELAY green

6

64120-9

FUSE 3 A

7

57792-4

FUSE 7.5A 7.5A

8

57752-8

FUSE 10 A

9

57793-2

FUSE 15 A

10

80226-4

DIODE

11

000348-12P

WASHER

12

51851-4

NUT

13

96616-8

DECAL

14

95361-2

HOUSING, ELECTRIC BOX

15

89092-1

DETECTOR

16

79940-3

DETECTOR

17

97509-4

SUSMIC BOX

18

51851-4

NUT

19

92298-9

BRACKET

20

72186-0

SCREW

21

100345-06W

NUT

22

92954-7

JOYSTICK See Illustration CONTROL LEVER/ V02399

23

71879-1

SCREW

24

95371-1

HARNESS wire

25

01590-9

SCREW

26

78815-8

WORK LIGHT

26

58446-6

BULB, FRONT WORK LIGHT (BOOM)

27

78816-6

WORK LIGHT REAR

27

58446-6

BULB, FRONT WORK LIGHT (BOOM)

28

97236-4

WIRING

29

98753-6

FUSE Fuse 20 A.

30

6908341

MICRORELAY E-13
