Запчасти Bobcat V518 DISTRIBUTOR - TILTING ELEMENT 367012501 AND ABOVE 367311001 AND ABOVE HYDROSTATIC/HYDRAULIC

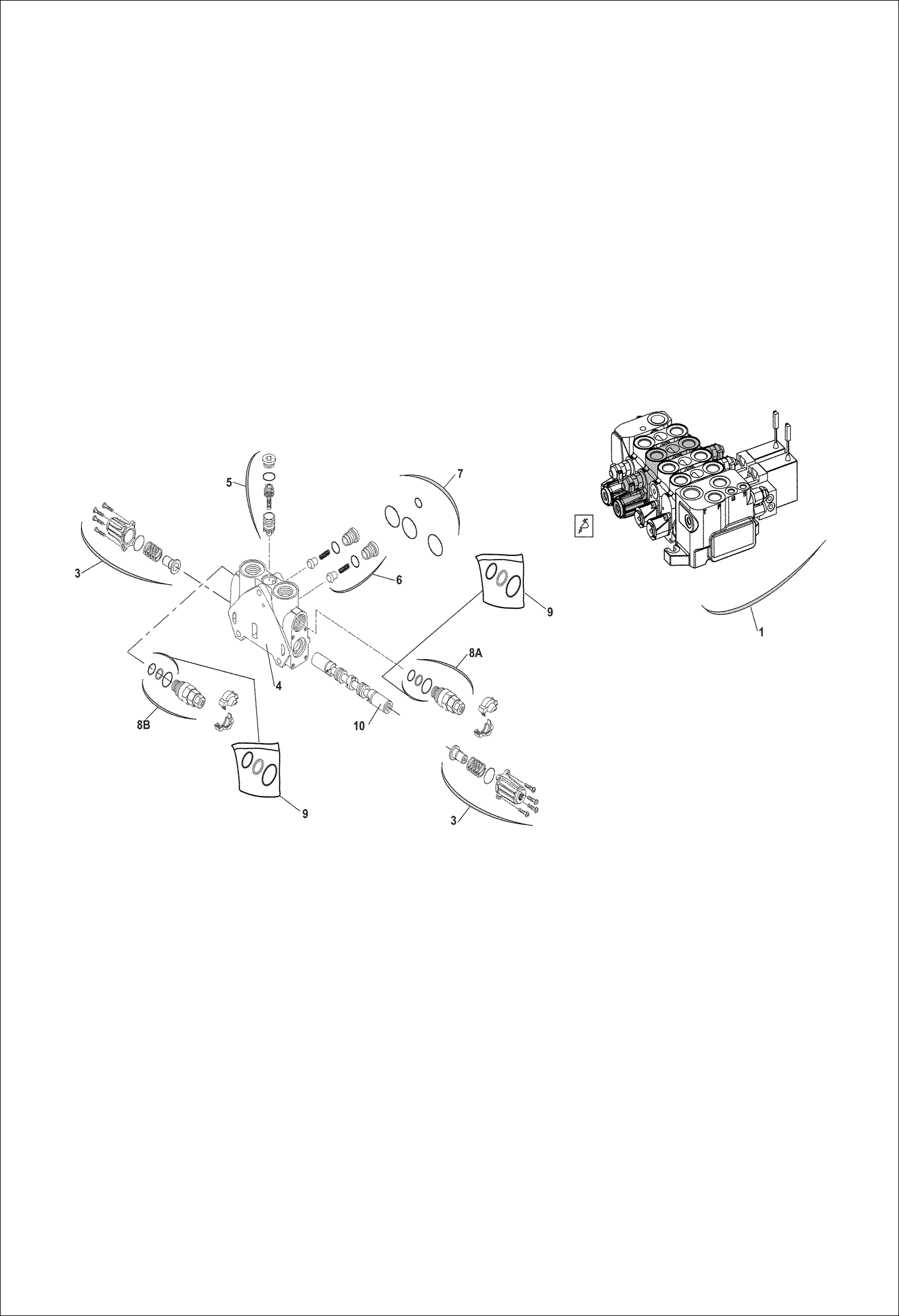

Схема запчастей Bobcat V518 - DISTRIBUTOR - TILTING ELEMENT 367012501 AND ABOVE 367311001 AND ABOVE HYDROSTATIC/HYDRAULIC

Артикул

Название

Примечание

Количество

1

6908552

VALVE, CONTROL

3

6910712

HYDRAULIC OPERATION

4

VALVE

5

97302-4

KIT PRESS COMP

6

6691133

CHECK VALVE WAS 97303-2 - A

7

97295-0

SEAL KIT

8

54090-6

PRESS RELIEF VALVE W/Ref. 9

9

6910713

SEAL KIT

10

VALVE SPOOL NLA

Выбрано товаров: 9
