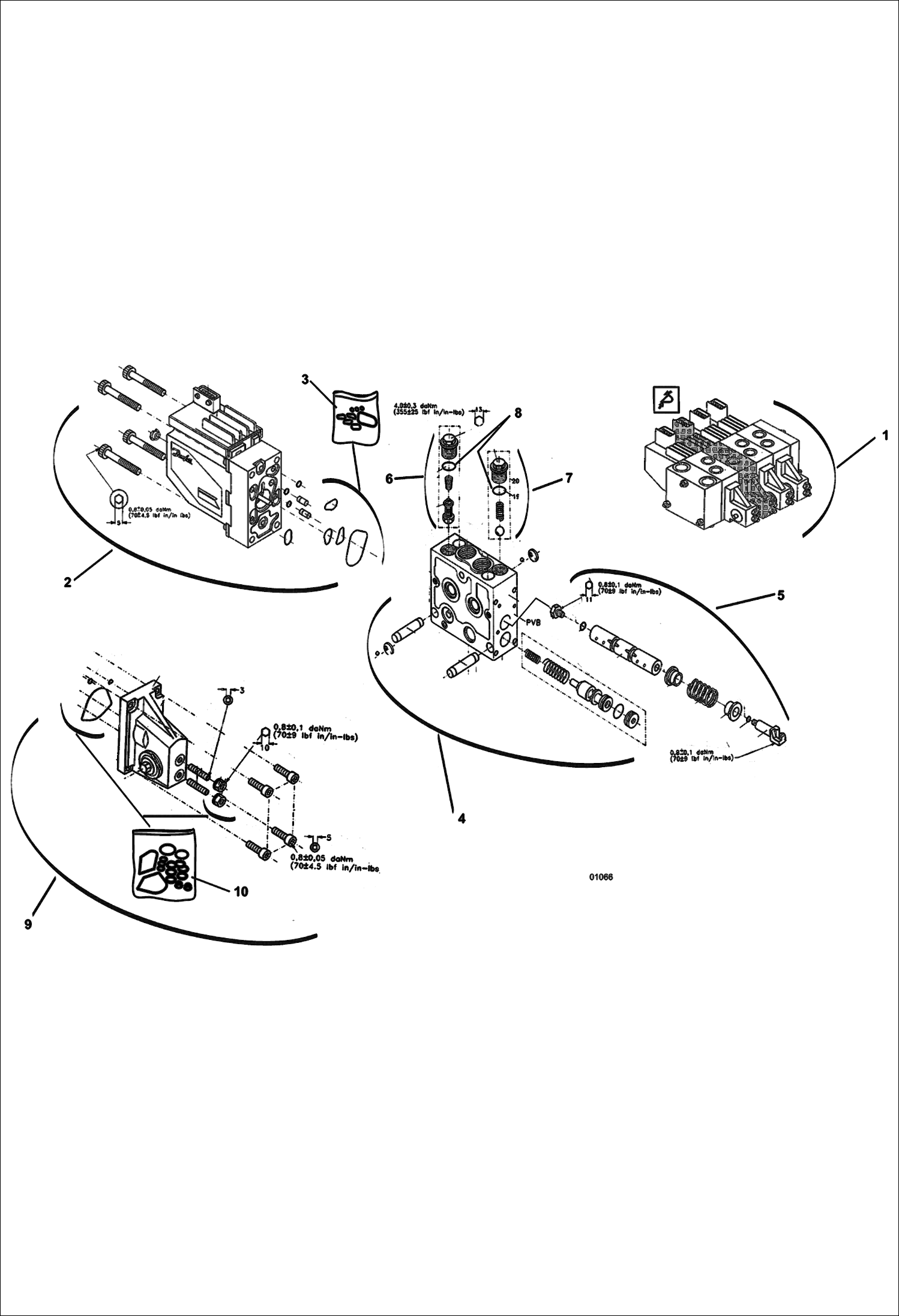

Запчасти Bobcat V518 CONTROL VALVE: TILTING ELEMENT 367011001 - 12001 HYDROSTATIC/HYDRAULIC

1

95296-0

VALVE, CONTROL See Illustration CONTROL VALVE: LIFTING ELEMENT/ V01065 See Illustration CONTROL VALVE: TILTING ELEMENT/ V01066 See Illustration CONTROL VALVE: INLET AND OUTLET/ V01073 See Illustration

2

96006-2

LINK, PROP Ref. 2 & 3

3

95300-0

SEAL KIT

4

95986-6

SECTION

5

96010-4

SPOOL

6

95997-3

VALVE Ref. 6 & 8

7

95284-6

VALVE Ref. 7 & 8

8

97180-4

O'RING

9

95298-6

MANUAL LINK Ref. 9 & 10

10

95299-4

SEAL KIT
