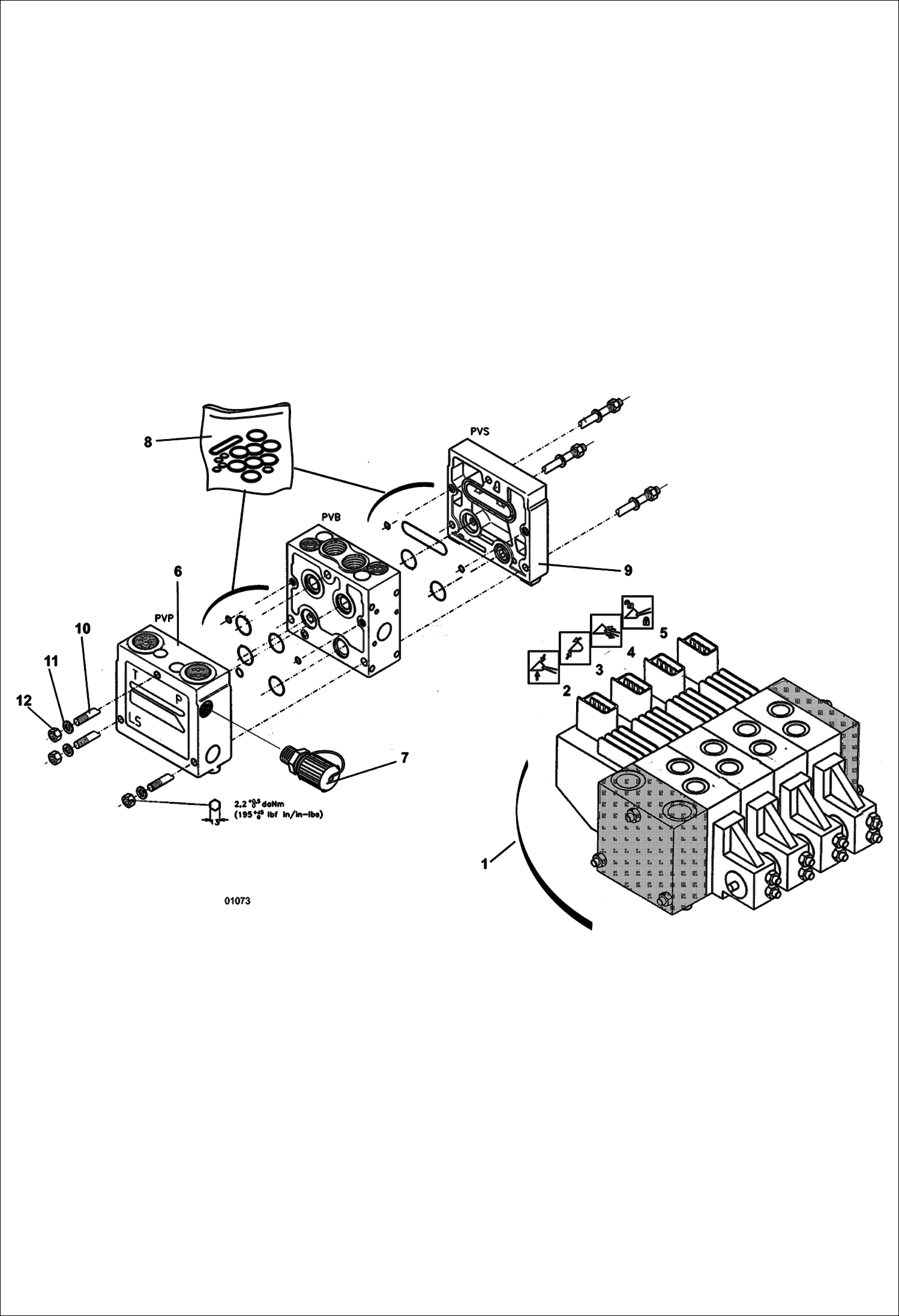

Запчасти Bobcat V518 CONTROL VALVE: INLET AND OUTLET 367011001 -12001 HYDROSTATIC/HYDRAULIC

1

95296-0

VALVE, CONTROL See Illustration CONTROL VALVE: LIFTING ELEMENT/ V01065 See Illustration CONTROL VALVE: TILTING ELEMENT/ V01066 See Illustration CONTROL VALVE: INLET AND OUTLET/ V01073 See Illustration

2

LIFTING ELEMENT See Illustration CONTROL VALVE: LIFTING ELEMENT/ V01065

3

TILTING ELEMENT See Illustration CONTROL VALVE: TILTING ELEMENT/ V01066

4

TELESCOPE ELEMENT See Illustration CONTROL VALVE: TELESCOPIC ELEMENT/ V01067

5

EQUIPMENT ELEMENT See Illustration CONTROL VALVE: ATTACHMENT ELEMENT/ V01068

6

95985-8

SECTION (INTAKE ELEMENT)

7

54367-8

SWITCH, PRESSURE test port

8

95316-6

SEAL KIT For 1 Element

9

95266-3

PLATE

10

97179-6

ROD

11

01697-2

WASHER

12

51851-4

NUT
