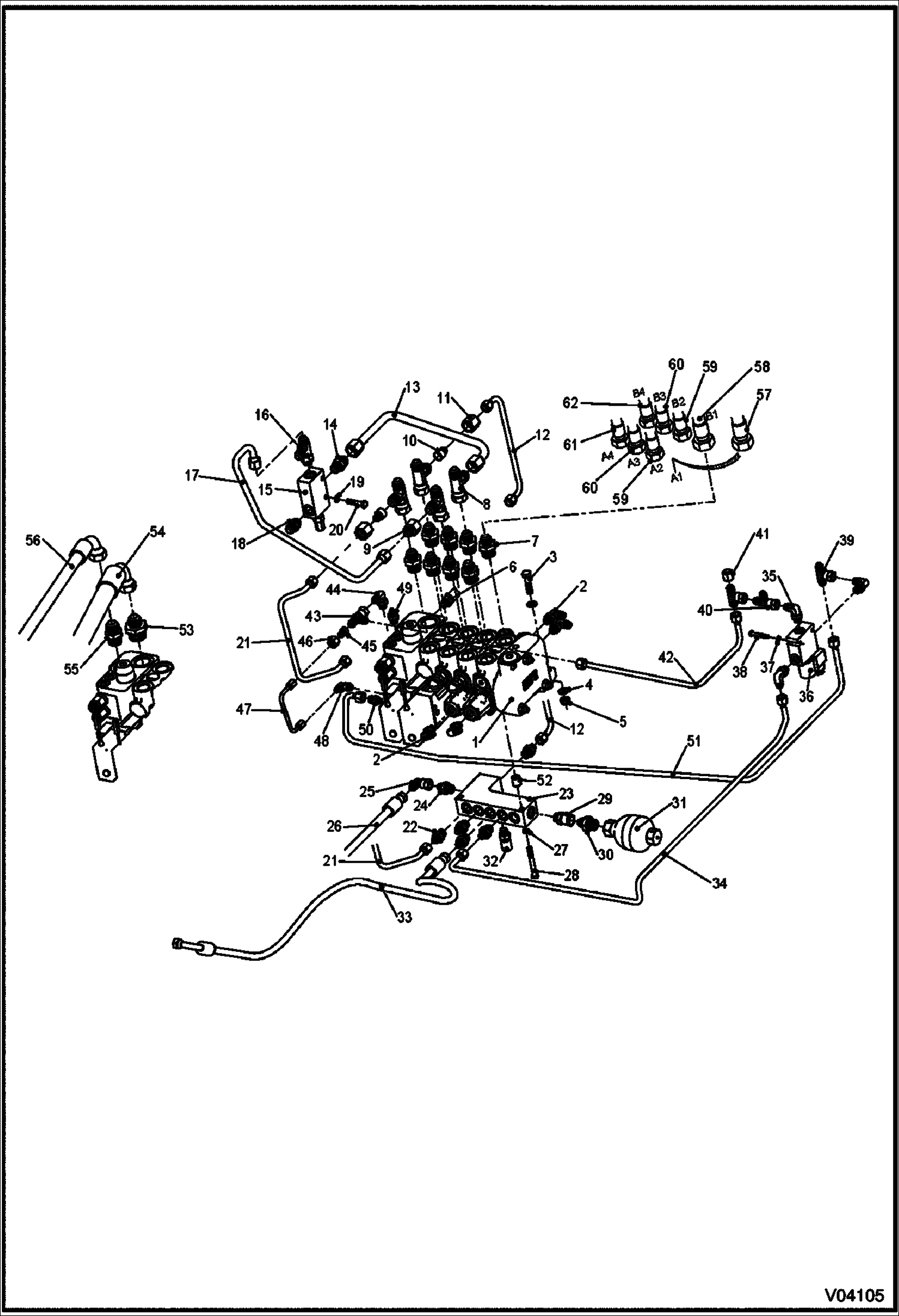

Запчасти Bobcat V518 DISTRIBUTOR ASSY 367013501-13509 367312501-12505 HYDROSTATIC/HYDRAULIC

1

6908552

VALVE, CONTROL See Illustration DISTRIBUTOR: INLET AND OUTLET/ V03055

2

100370-18C

ELBOW PIECE

3

10944-7

SCREW

4

01698-0

WASHER Z 10 U ZJ8

5

100345-09A

NUT

6

54367-8

SWITCH, PRESSURE test port

7

014375-02C

UNION 7/8 JIC 3/4 BSPP

8

008372-28F

UNION

9

100375-43X

REDUCER

10

65236-2

REDUCTION 7/8JIC 9/16JIC (16-10)

11

014345-13D

NUT D16 - 7/8 JIC

12

6910392

PIPE

13

6910426

PIPE

14

100375-39T

UNION 7/8 JIC 3/8 BSP

15

98235-5

BAL.VALVE

16

100372-22Z

UNION

17

6910427

PIPE

18

100375-38S

UNION

19

89519-3

WASHER

20

1CM840

BOLT Was 01599-0 - A

21

6913559

HOSE Was 6910393 - B

22

77013-1

UNION

23

6910660

HYD BLOCK

24

77013-1

UNION

25

100370-29P

ELBOW PIECE

26

96808-1

HOSE See Illustration EXHAUST - LIFTER ARM CIRCUIT/ V04107

27

89519-3

WASHER

28

01511-5

SCREW

29

100375-42W

ADAPTER

30

022375-04U

UNION

31

96365-2

ACCUMULATOR , HYDRAULIC

32

54367-8

SWITCH, PRESSURE test port

33

67198-2

HOSE ASSEM

34

6910430

PIPE

35

100370-18C

ELBOW PIECE

36

95983-3

VALVE 3/2 CE12V 15L 210B

37

94574-1

WASHER

38

000326-25M

SCREW

39

100372-23A

UNION

40

100372-06G

UNION

41

100374-18M

PLUG

42

6910429

PIPE

43

100372-06G

UNION

44

100370-18C

ELBOW PIECE

45

100375-73F

UNION

46

014345-11B

NUT D10 - 9/16 JIC

47

6908629

TUBE , HYDRAULIC

48

85955-3

ELBOW , 7/16 JIC 1/8 BSPP

49

022375-28V

UNION

50

82181-9

UNION 9/16 JIC 1/8 BSPP

51

6910428

PIPE

52

6910771

WASHER

53

68609-7

UNION 1.1/16 JIC 1 BSPP

54

6908559

HOSE TJ1.5/16 25,4 TJ90 1.1/16 2300 See Illustration HYDRAULIC TANK/ V04108

55

100375-40U

UNION

56

6911181

HOSE See Illustration HYDRAULIC TANK/ V04108

57

70224-1

HOSE A1

58

6908571

HOSE TJ 7/8 12,7 TJ 7/8 L865 B1

59

76401-9

HOSE A2-B2

60

76366-4

HOSE + A3-B3

61

6908561

HOSE TJ 7/8 12,7 MJ 7/8 L610 A4

62

76366-4

HOSE + B4
