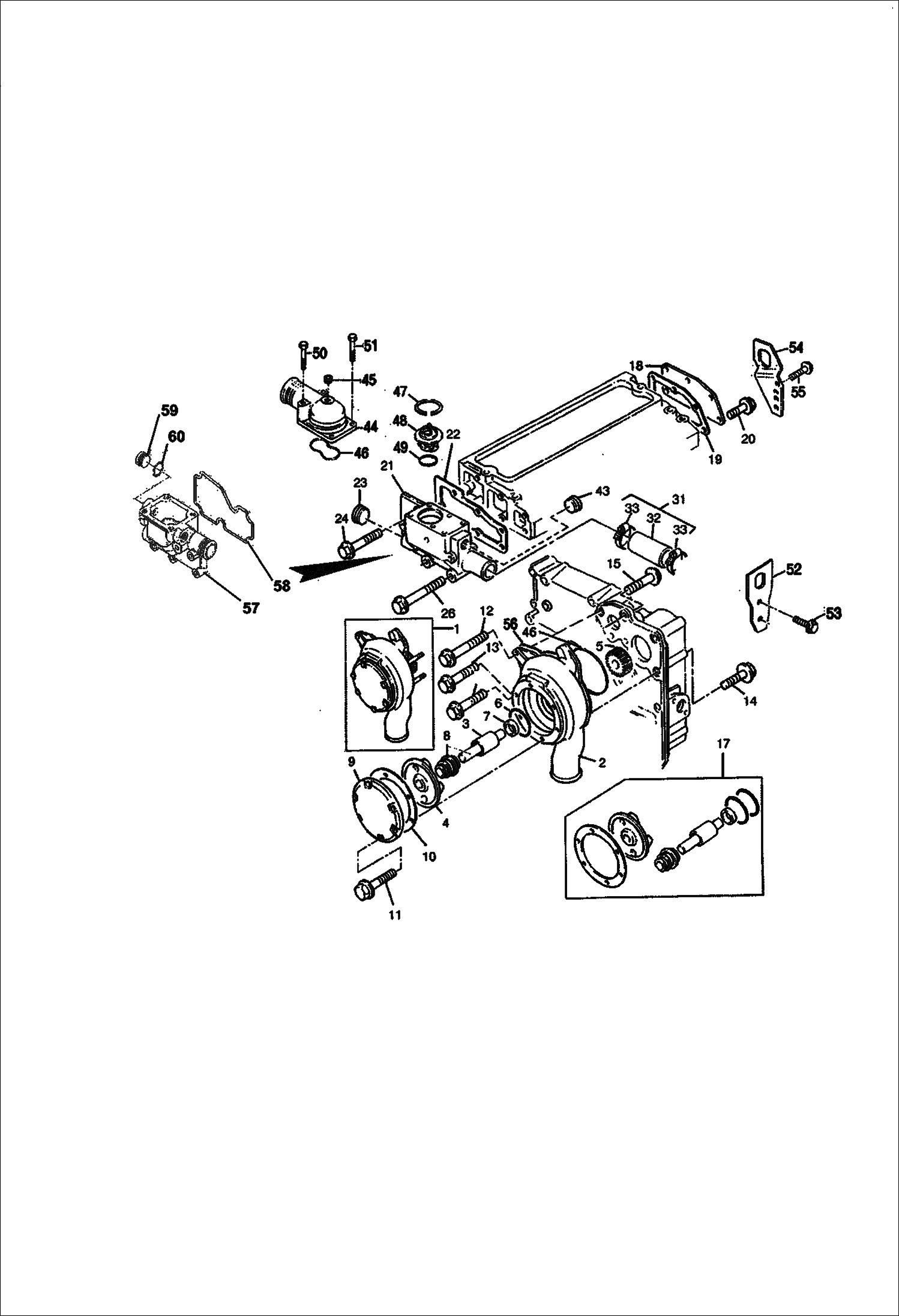

Запчасти Bobcat V518 WATER PUMP AND THERMOSTAT 367013509 AND BELOW 367312505 AND BELOW POWER UNIT

1

93187-3

WATER PUMP W/Ref. 2-11 & 46

2

BODY Order Ref. 1

3

SHAFT Order Ref. 1

4

IMPELLER Order Ref. 1

5

GEAR Order Ref. 1

6

SEAL Order Ref. 1

7

SEAL Order Ref. 1

8

SEAL Order Ref. 1

9

COVER Order Ref. 1

10

SEAL Order Ref. 1

11

SCREW Order Ref. 1

12

71557-3

SCREW

13

71381-8

SCREW

14

93280-6

SCREW

15

93281-4

SCREW

17

93282-2

REPAIR KIT

18

93283-0

COVER PLATE

19

93284-8

SEAL

20

71456-8

SCREW

21

93285-5

HOUSING

22

93286-3

SEAL

23

33219-7

PLUG

24

71343-8

SCREW

26

71335-4

SCREW

31

93288-9

HOSE

32

HOSE

33

93289-7

COLLAR

43

33219-7

PLUG

44

6681941

CONNECTION Was 98689-3 - A

45

93295-4

PLUG

46

93296-2

O RING

47

93297-0

CLIP

48

6672299

THERMOSTAT Was 98690-1 - A

49

93291-3

O RING

50

71343-8

SCREW

51

71338-8

SCREW

52

93328-3

PLATE

53

71346-1

SCREW

54

93329-1

PLATE

55

71346-1

SCREW

56

93279-8

SEAL

57

6677651

HOUSING Include Ref. 57 - 60 - Was 98686-9 - A

58

6677709

O-RING

58

6692743

GASKET

59

98687-7

PLUG Include Ref. 60

60

98688-5

O'RING
