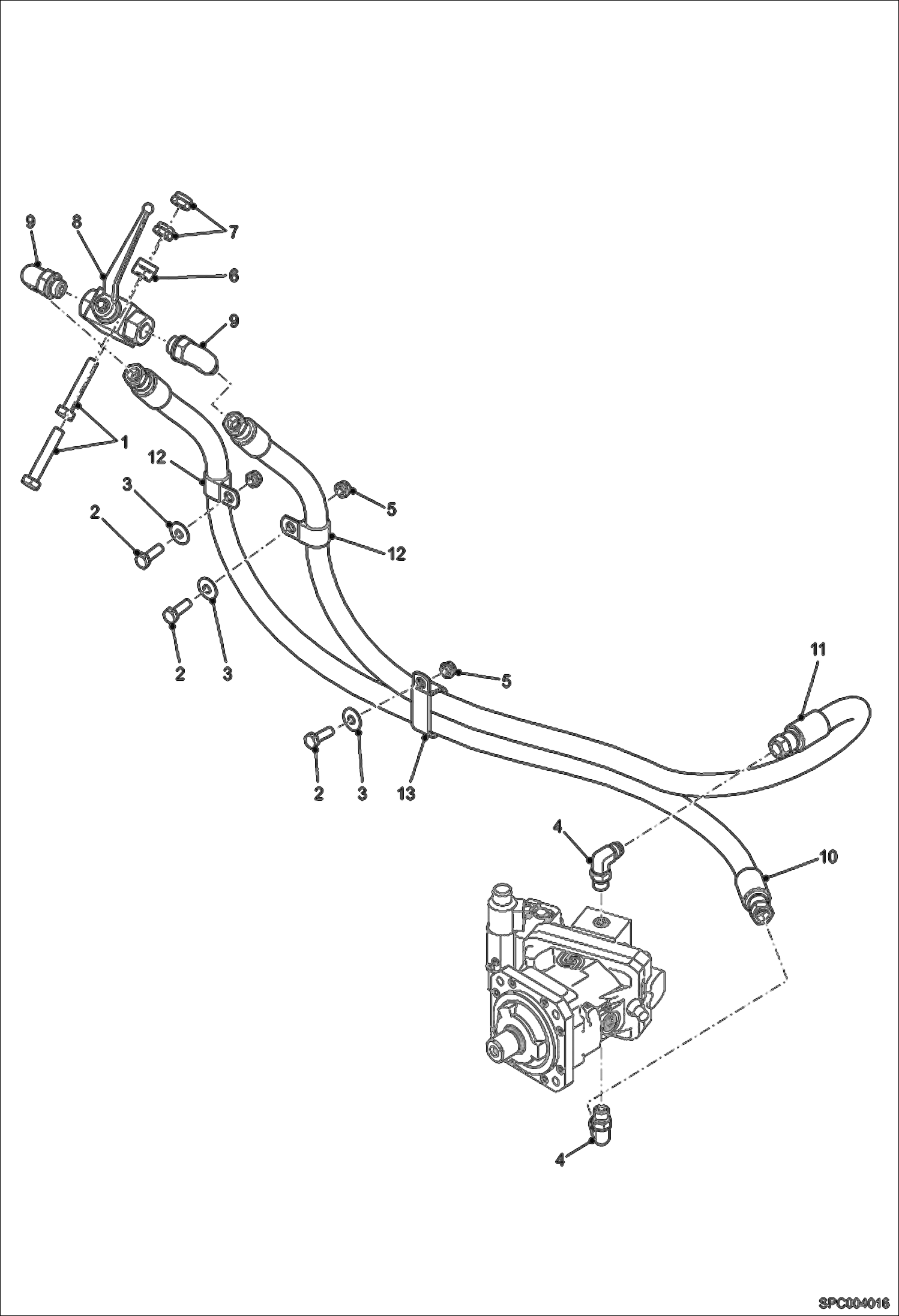

Запчасти Bobcat V417 TOW VALVE INSTALLATION HYDROSTATIC SYSTEM

1

01519-8

SCREW

2

4CM825

BOLT Was 01597-4 - B

3

000350-02V

WASHER Was 000350-02V - B

4

010370-38Q

UNION

5

01681-6

NUT Was 51851-4 - B

6

77014-9

PLATE

7

100345-09A

NUT

8

100378-03F

SHUTOFF auxiliary pressure release

9

6918652

ELBOW UNION

10

6922318

HOSE

11

6922318

HOSE

12

30H46

CLIP

13

31H46

CLAMP
