Запчасти Bobcat V417 HYDRAULIC CIRCUITRY (Control Valve) (S/N A7MK11000 - 11698, A7ML11000 - 11631) HYDRAULIC SYSTEM

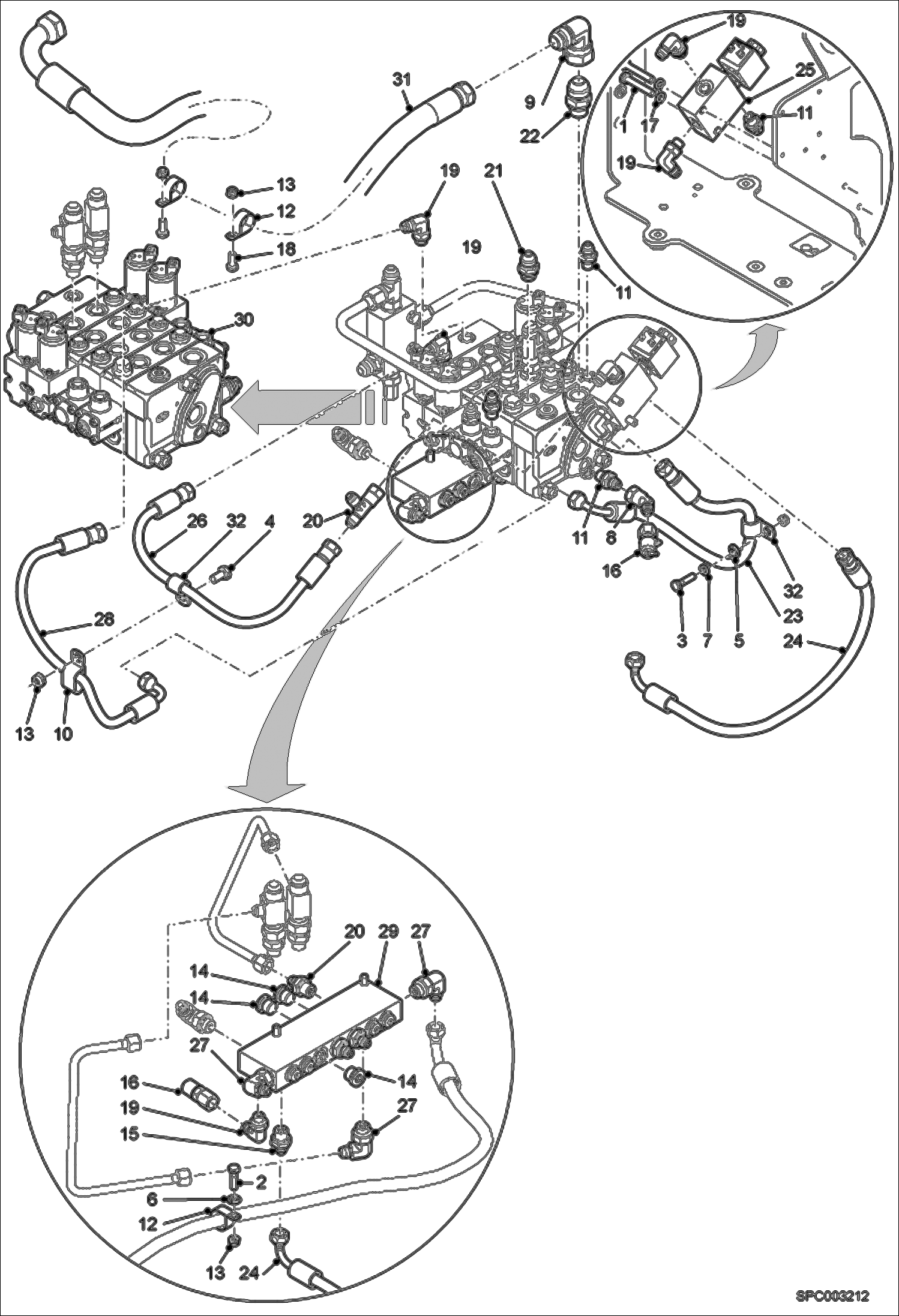

Схема запчастей Bobcat V417 - HYDRAULIC CIRCUITRY (Control Valve) (S/N A7MK11000 - 11698, A7ML11000 - 11631) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

01579-2

SCREW

2

01598-2

SCREW

3

01603-0

SCREW

4

1CM816

BOLT Was 01595-8 - A

5

01698-0

WASHER Z 10 U ZJ8

6

01718-6

WASHER

7

01720-2

WASHER

8

007371-46V

ELBOW UNION

9

008372-14Q

ELBOW

10

31H31

CLIP

11

022375-31Z

UNION

12

30H82

CLAMP INSULATED

13

01681-6

NUT Was 51851-4 - B

14

56029-2

PLUG MALE 3/8 BSP ALLEN

15

77013-1

UNION

16

82170-2

PRESSURE CONNECTOR

17

89519-3

WASHER

18

1CM820

BOLT Was 01596-6 - B

19

100370-18C

ELBOW PIECE

20

100372-06G

UNION

21

100375-38S

UNION

22

100375-67Z

UNION

23

6909434

HOSE , TJ90 9/16 6,4 TJ 9/16 L 520

24

6909434

HOSE , TJ90 9/16 6,4 TJ 9/16 L 520

25

6910208

VALVE 3/2 CE12V

26

6911106

HOSE

27

6918652

ELBOW UNION

28

6920763

HOSE

29

6921314

HYDARULIC BLOK

30

6923669

MAIN VALVE Was 6921438 - B

31

6921908

HOSE

32

30H38

CLIP

Выбрано товаров: 32
