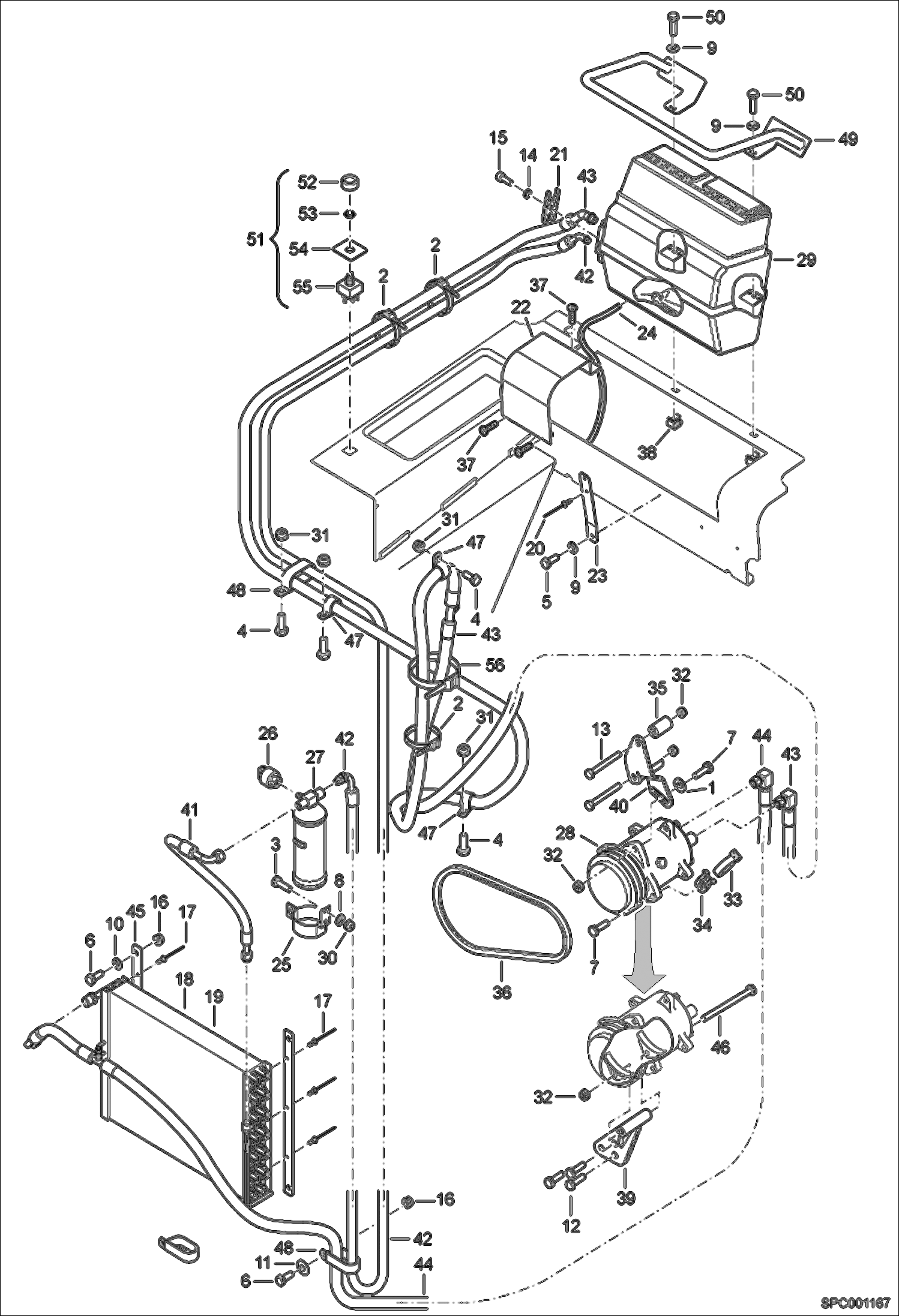

Запчасти Bobcat V417 HEATING/VENTILATION (S/N A7MK11001 & Above) MAIN FRAME

1

000350-21R

WASHER

2

6624289

STRAP, TIE

3

01478-7

SCREW

4

01590-9

SCREW

5

01591-7

SCREW

6

1CM820

BOLT Was 01596-6 - B

7

01607-1

SCREW

8

01695-6

WASHER

9

01696-4

WASHER

10

01697-2

WASHER

11

000350-02V

WASHER

12

006330-26W

SCREW

13

1CM1090

BOLT Was 12597-1 - A

14

13416-3

WASHER

15

15354-4

SCREW

16

01681-6

NUT Was 51851-4 - B

17

43824-2

RIVET Was 66679-2 - A

18

81439-2

CONDENSOR

19

GAS NLA Was 88030-2 - A

20

66679-2

RIVET

21

88826-3

BRACKET

22

88827-1

COVER

23

88830-5

PLATE

24

88848-7

HOSE, WATER 79'' (2 M) LONG

25

89641-5

BRACKET

26

89642-3

CONNECTOR

27

89643-1

FILTER

28

89644-9

COMPRESSOR, A/C

29

96082-3

EVAPORATOR

30

100345-05V

NUT

31

100345-06W

NUT

32

100345-09A

NUT

33

6678669

STRAP

34

6679034

MOUNT

35

6730266

SPACER

36

6730819

BELT

37

6910951

SCREW

38

6914086

NUT

39

6920845

SUPPORT

40

6920848

BRACKET

41

6920919

HOSE ASSY

42

6920924

HOSE

43

6920946

HOSE ASSY

44

6920947

HOSE ASSY

45

6920986

SUPPORT

46

6921337

SCREW

47

30H49

CLAMP

48

31H50

COLLAR

49

6925115

PROTECTOR

50

41821-0

SCREW

51

88825-5

SWITCH W/Ref. 52-55

52

6914433

CLIM BUTTON

53

6925361

NUT

54

6914431

PLATE

55

88825-5

SWITCH Was 6925362 - A

56

7194074

TIE, CABLE Was 001369-22D - A
