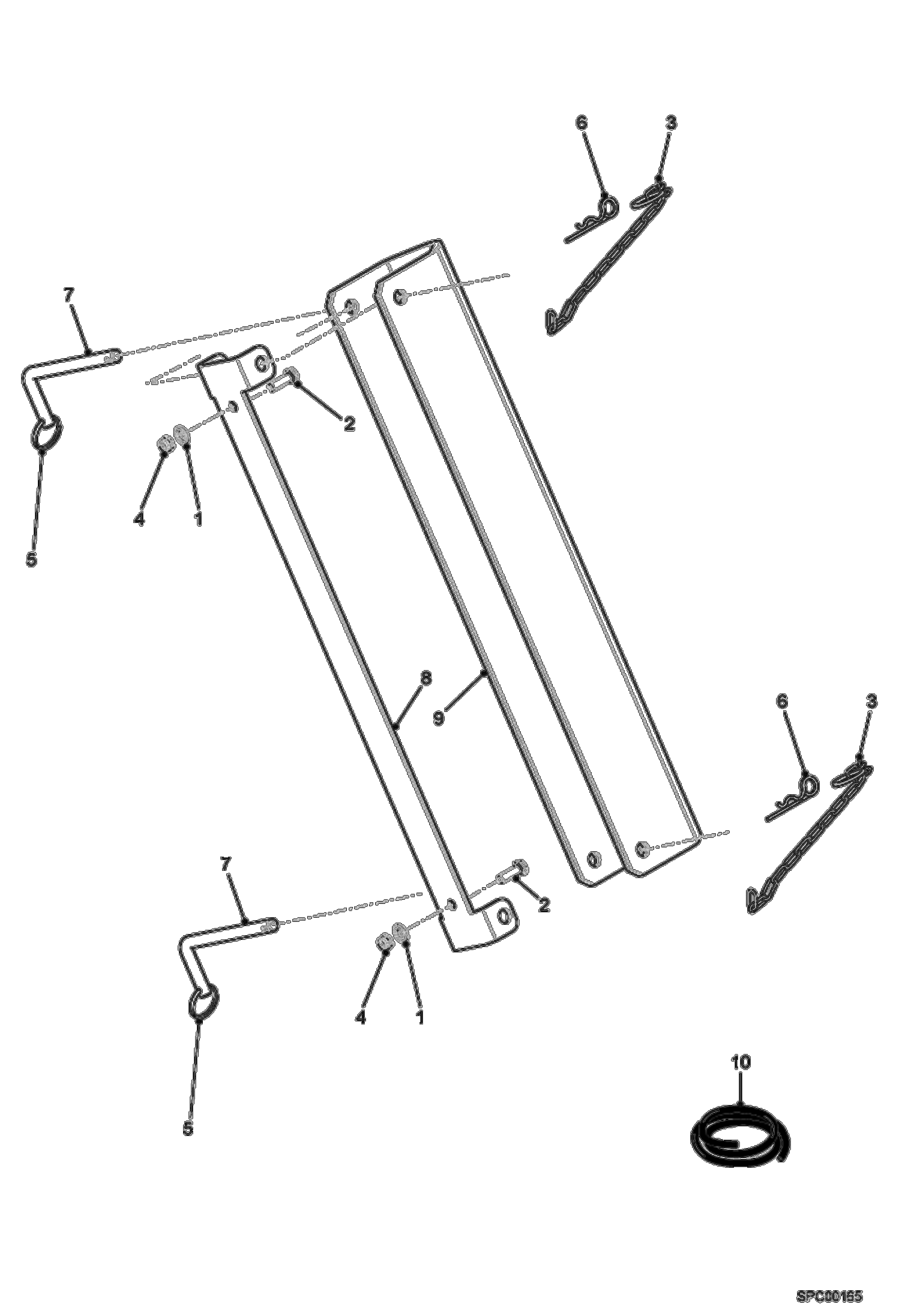

Запчасти Bobcat V417 BOOM STOP MAIN FRAME

1

000350-02V

WASHER

2

4CM825

BOLT Was 01597-4 - B

3

CHAIN NAP - 500 mm (19.68'') long - order Ref. 10

4

01681-6

NUT Was 51851-4 - B

5

7168942

RING Was 58158-7 - B

6

95218-4

PIN

7

7215740

PIN, LOCKING Was 6908976 - A

8

6919345

SUPPORT

9

6919346

ABUTMENT

10

7215741

CHAIN bulk - sold per foot Was 48792-6 - A
