Запчасти Bobcat V417 HYDRAULIC CIRCUITRY (Control Valve) (S/N AC1C11239 - 14999, AC1D12000 - 14999) HYDRAULIC SYSTEM

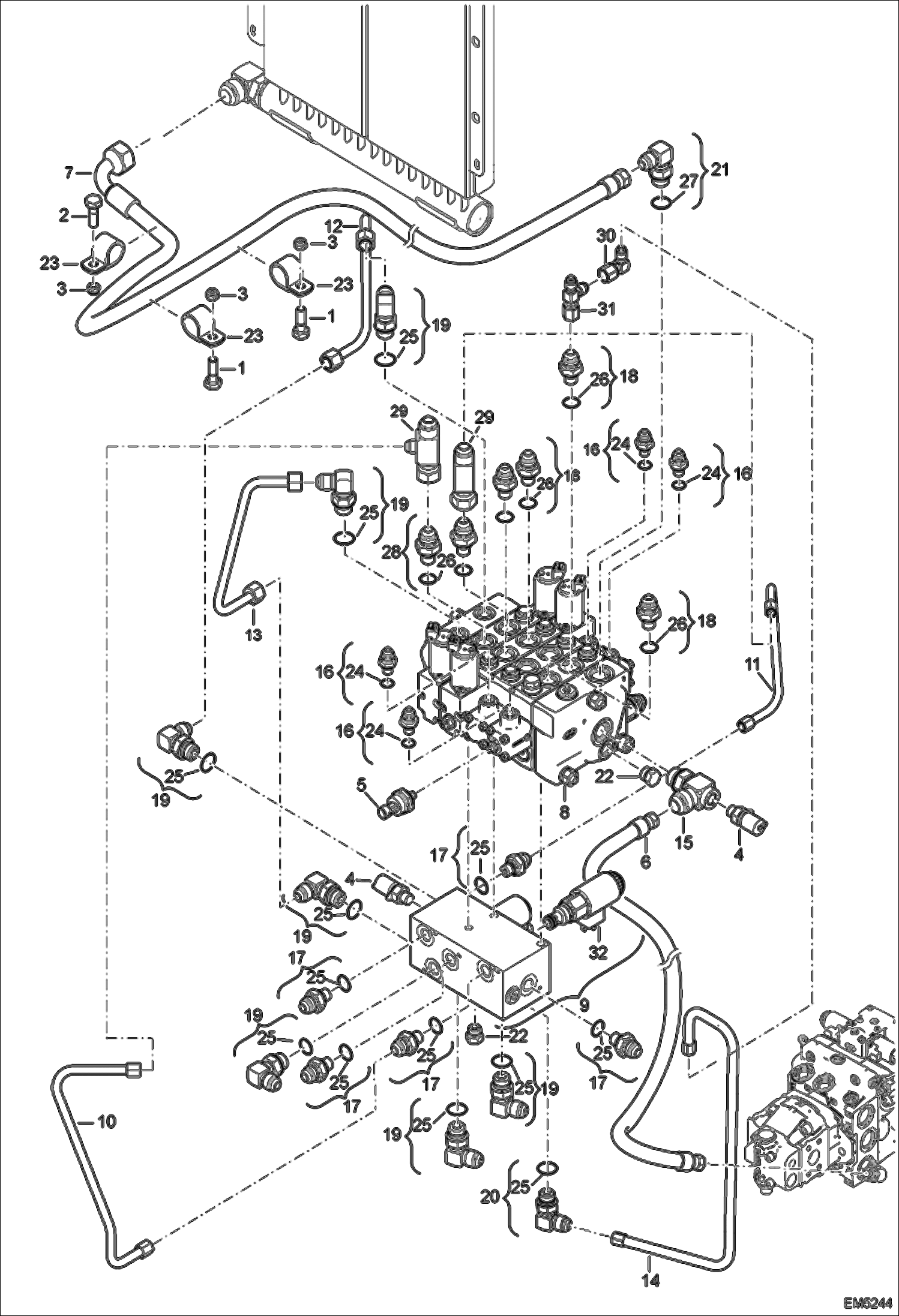

Схема запчастей Bobcat V417 - HYDRAULIC CIRCUITRY (Control Valve) (S/N AC1C11239 - 14999, AC1D12000 - 14999) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

1CM820

BOLT Was 01596-6 - B

2

01598-2

SCREW

3

01681-6

NUT Was 51851-4 - B

4

72065-6

PRESSURE SWITCH W/chain

5

6692934

PRESSURE SWITCH

6

6921240

HOSE

7

6921908

HOSE

8

6926273

MAIN VALVE

9

6927237

MANIFOLD See Illustration HYDRAULIC COLLECTOR/ EM8433 W/Ref. 32

9

6927238

MANIFOLD See Illustration HYDRAULIC COLLECTOR/ EM8434

10

6927263

PIPE

11

6927264

PIPE

12

6927273

PIPE

13

6927274

PIPE

14

6927275

PIPE

15

6927303

FITTING

16

15KB0604

FTG HYD S CONNECTOR W/Ref. 24

17

15KB0606

FITTING, HYD CONNECTOR W/Ref. 25

18

15KB0808

FITTING, HYD CONNECTOR W/Ref. 26

19

17KB0606

FITTING W/Ref. 25

20

17KB0806

FITTING, HYD ELBOW W/Ref. 25

21

17KB1210

FITTING, HYD ELBOW W/Ref. 27

22

24K5

PLUG

23

30H82

CLAMP INSULATED

24

79K4

O RING 10

25

79K6

O RING 10

26

79K8

O RING 10

27

79K10

O RING 10

28

15KB1008

FITTING, HYD CONNECTOR W/Ref. 26

29

6535460

TEE

30

11K6

UNION

31

13K6

TEE

32

6927311

VALVE, SOLENOID

Выбрано товаров: 33
