HYDRAULIC CIRCUITRY (Unlock Valve) (S/N AC1C15000 & Above, AC1D15000 & Above)

Запчасти Bobcat V417 HYDRAULIC CIRCUITRY (Unlock Valve) (S/N AC1C15000 & Above, AC1D15000 & Above) HYDRAULIC SYSTEM

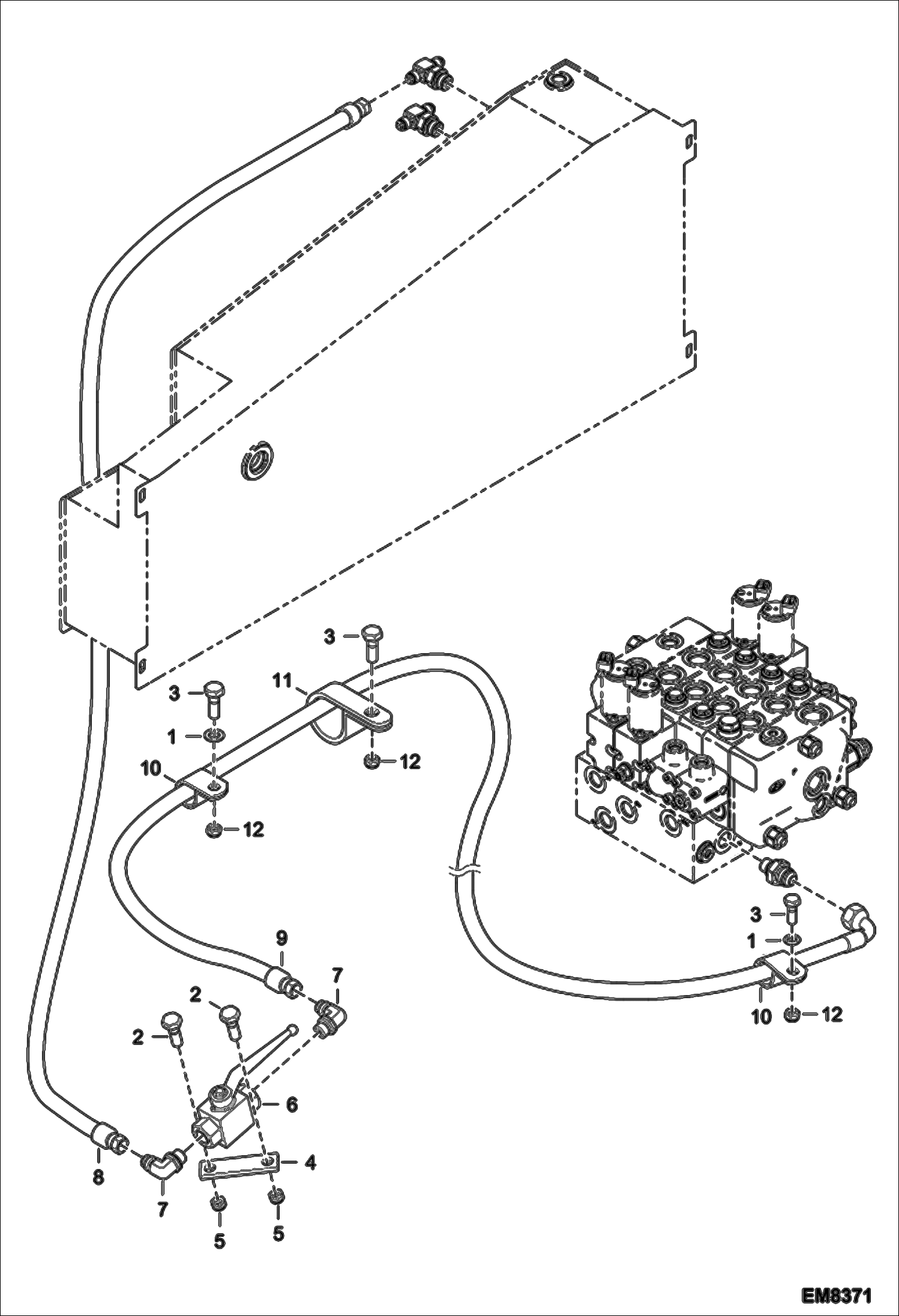

Схема запчастей Bobcat V417 - HYDRAULIC CIRCUITRY (Unlock Valve) (S/N AC1C15000 & Above, AC1D15000 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

000350-02V

WASHER

2

01522-2

SCREW

3

01598-2

SCREW

4

77014-9

PLATE

5

100345-09A

NUT

6

100378-03F

SHUTOFF auxiliary pressure release

7

6918652

ELBOW UNION

8

6933763

HOSE

9

70865-1

HOSE Was 90265-0 - B

10

30H82

CLAMP INSULATED

11

30H94

COLLAR

12

01681-6

NUT Was 51851-4 - B
