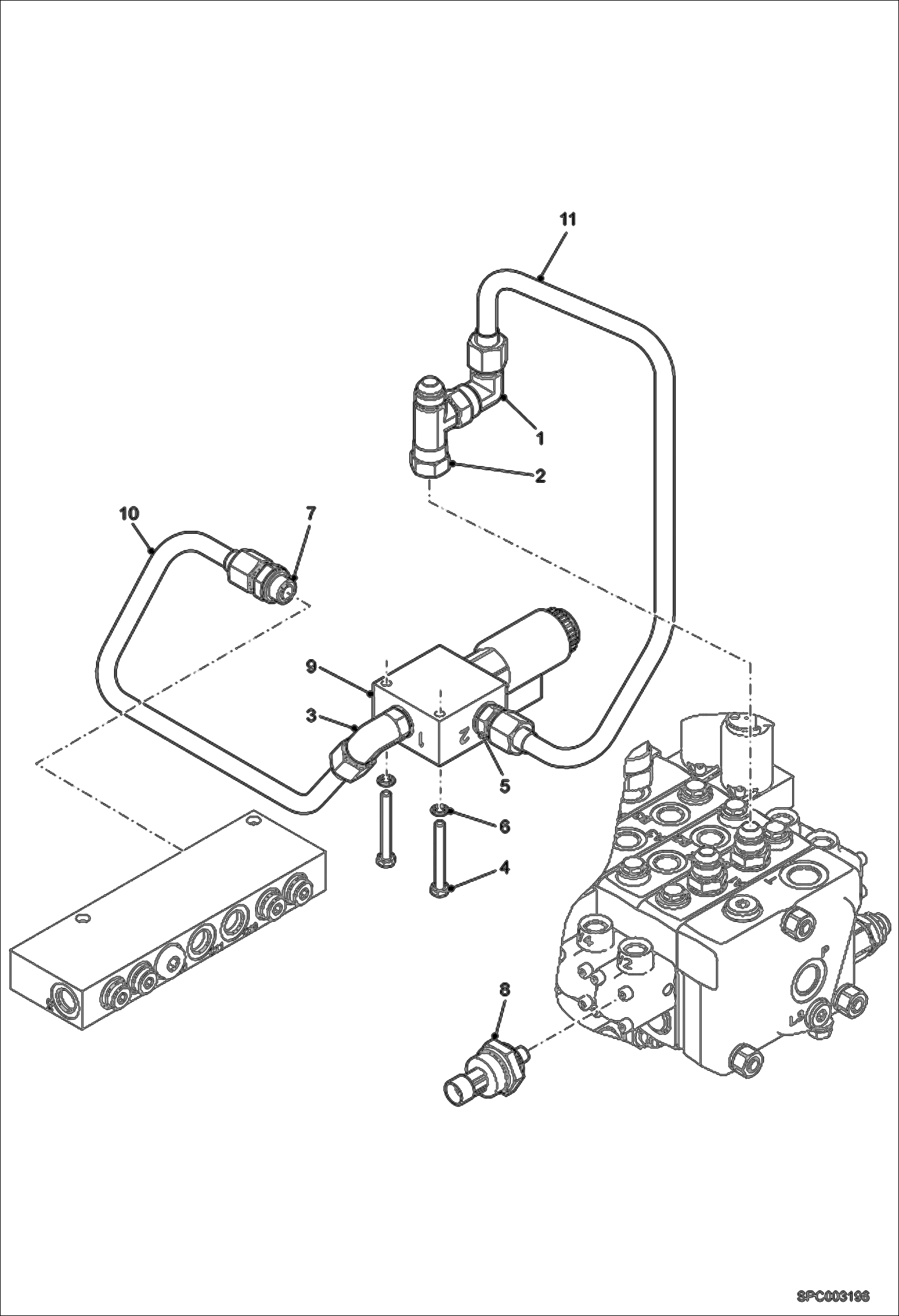

Запчасти Bobcat V417 HYDRAULIC CIRCUITRY (Boom Float) (S/N AC1C11001 - 11238) HYDRAULIC SYSTEM

1

008372-01B

ELBOW PIECE

2

008372-02C

UNION

3

015370-13R

UNION

4

1CM650

SCREW Was 48829-6 - A

5

65723-9

UNION

6

94574-1

WASHER

7

100375-38S

UNION

8

6692934

PRESSURE SWITCH

9

6917734

BLOCK VALVE

10

6922313

PIPE

11

6922407

PIPE
