Запчасти Bobcat V417 HYDRAULIC CIRCUITRY (Parking Brake) (S/N AC1C11001 - 11238, AC1D11001 - 11999) HYDRAULIC SYSTEM

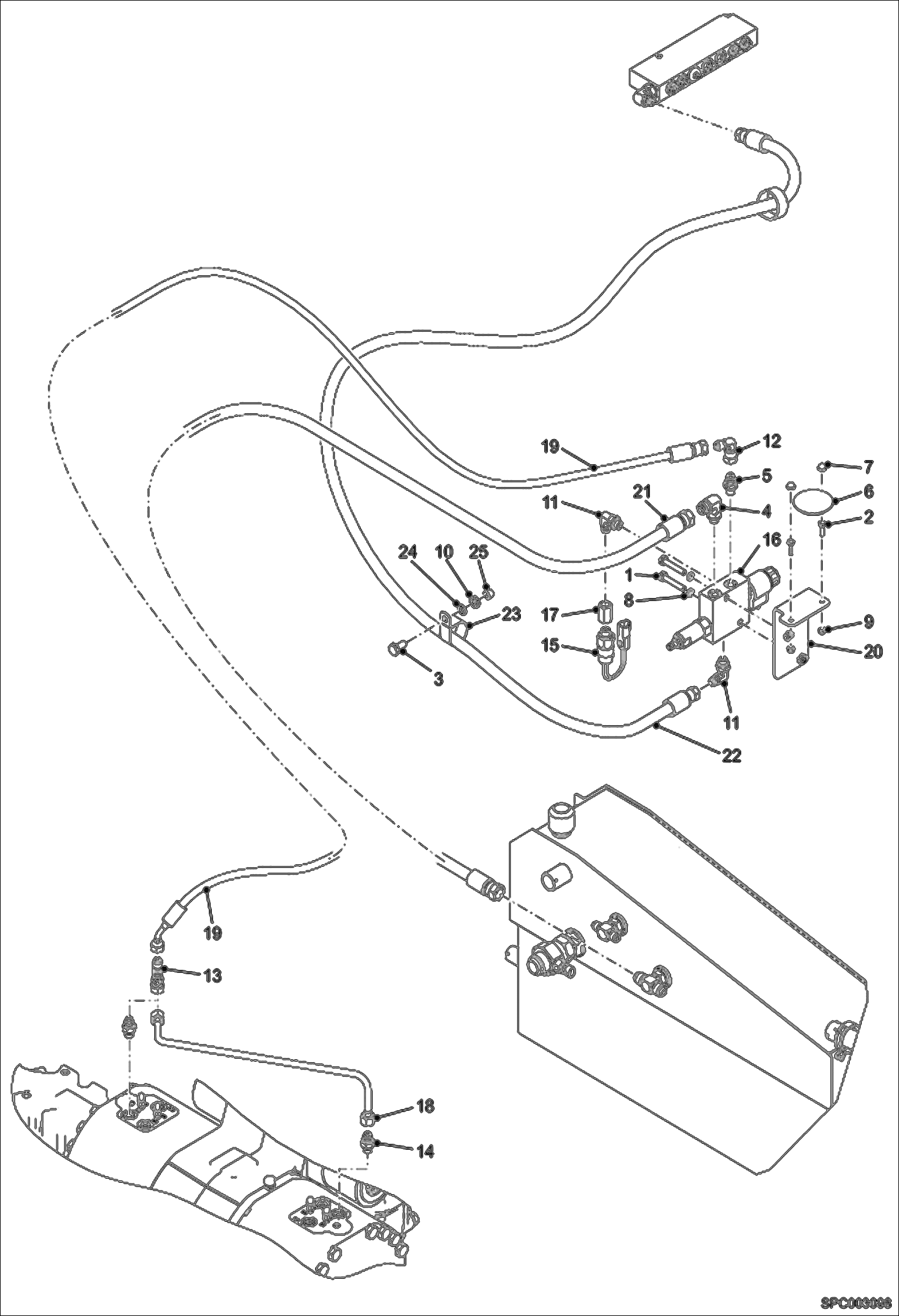

Схема запчастей Bobcat V417 - HYDRAULIC CIRCUITRY (Parking Brake) (S/N AC1C11001 - 11238, AC1D11001 - 11999) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

01579-2

SCREW

2

01591-7

SCREW

3

1CM820

BOLT Was 01596-6 - B

4

015370-13R

UNION

5

022375-31Z

UNION

6

60201-1

PLUG

7

63332-1

CAP

8

89519-3

WASHER

9

100345-06W

NUT

10

01681-6

NUT Was 51851-4 - B

11

100370-18C

ELBOW PIECE

12

100370-29P

ELBOW PIECE

13

100372-06G

UNION

14

90289-0

UNION Was 100375-17U - B

15

6938297

SWITCH, PRESSURE Was 6912465 - A

16

6916596

BLOCK

17

6916745

UNION

18

6920559

HYDRAULIC PIPE

19

6920570

HOSE

20

6921236

SUPPORT

21

6921253

HOSE

22

6921414

HOSE

23

30H84

CLAMP Was 30H60 - A

24

000350-20Q

WASHER

25

96956-8

NUT CAP H M8

Выбрано товаров: 25
