Запчасти Bobcat V417 HYDRAULIC CIRCUITRY (Boom) (S/N AC1C11001 & Above) HYDRAULIC SYSTEM

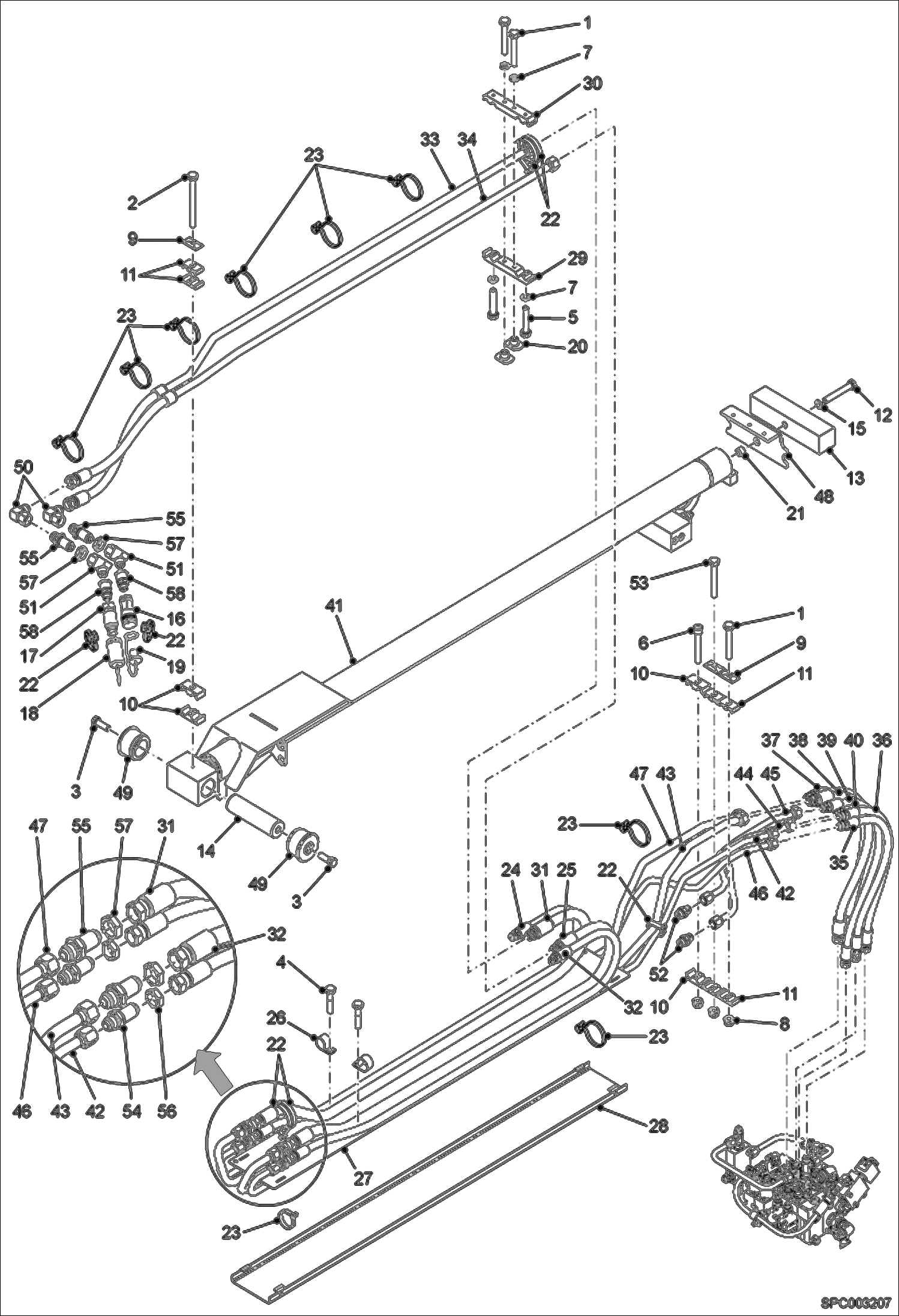

Схема запчастей Bobcat V417 - HYDRAULIC CIRCUITRY (Boom) (S/N AC1C11001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

01508-1

SCREW

2

01512-3

SCREW

3

01549-5

SCREW

4

59CM812

SCREW HX FLNG W/T8.8 Was 29CM820 - B

5

1CM840

BOLT Was 1CM-840 - D

6

10884-5

SCREW

7

11463-7

WASHER

8

01681-6

NUT Was 51851-4 - B

9

54215-9

PLATE

10

55605-0

COLLAR

11

55932-8

COLLAR

12

77492-7

SCREW

13

80366-8

BRACKET

14

80395-7

PIN

15

89518-5

WASHER

16

7186826

COUPLER, QUICK FEMALE Was 95993-2 - A

17

7225159

COUPLER, HYD Was 95994-0 - A

18

7225160

CAP, COUPLER Was 96513-7 - A

19

7225161

CAP, COUPLER Was 96514-5 - A

20

97950-0

NUT

21

100357-03X

PIN

22

6678669

STRAP

23

6915851

COLLAR

24

6927099

HOSE, HYD Was 6927094 - A

25

6927525

HOSE, HYD Was 6927094 - A

26

30H45

CLIP Was 6922838 - B

27

6920204

COVER

28

6920206

COVER

29

6920210

CLAMP

30

6920211

CLAMP

31

6926775

HOSE & HARNESS ASSY Was 6927093 - A

32

6927099

HOSE, HYD Was 6927093 - A

33

6920957

HYDRAULIC HOSE + PIPE

34

6920965

HYDRAULIC HOSE + PIPE

35

6920974

HOSE

36

6920974

HOSE

37

6920977

HOSE

38

6920977

HOSE

39

6920979

HOSE

40

6920979

HOSE

41

6921439

TELESCOPIC CYLINDER

42

6922409

PIPE

43

6922410

PIPE, MALE

44

6922411

PIPE

45

6922412

PIPE

46

6922413

PIPE

47

6922414

PIPE, FEMALE

48

6922419

SUPPORT

49

6965144

BUSHING

50

11K8

ELBOW

51

12K8

ELBOW

52

15KB1010

FITTING, HYD CONNECTOR

53

01602-2

SCREW Was 30H23 - B

54

45K7

CONNECTR

55

45K8

ADAPTOR

56

86F7

LOCK NUT

57

86F8

NUT 5

58

P02613

UNION

Выбрано товаров: 58
