Запчасти Bobcat V417 AIR CONDITIONING (Engine Side) (S/N AC1C13000 & Above) MAIN FRAME

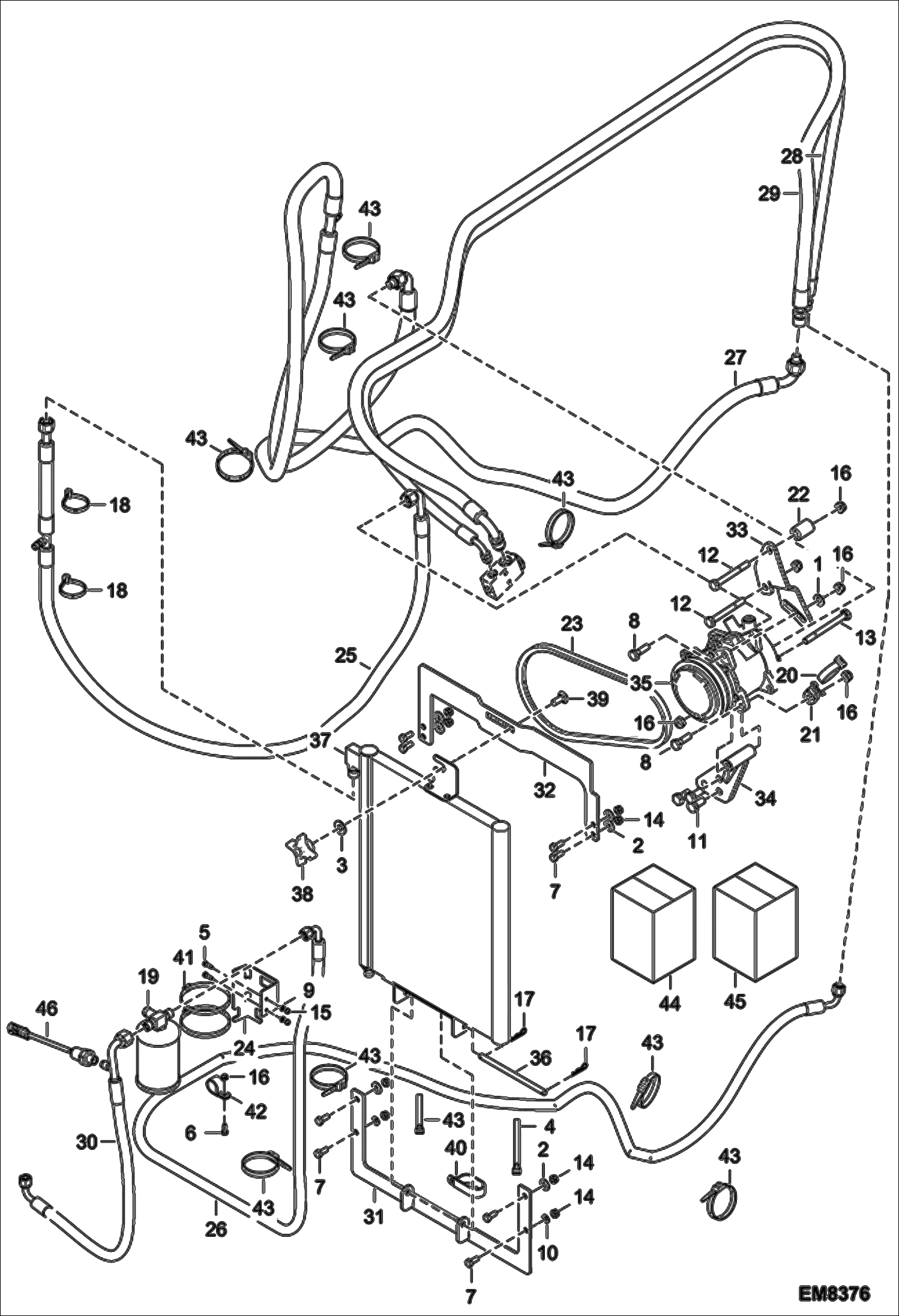

Схема запчастей Bobcat V417 - AIR CONDITIONING (Engine Side) (S/N AC1C13000 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

000350-03W

WASHER

2

000350-20Q

WASHER

3

000350-21R

WASHER

4

7194074

TIE, CABLE Was 001369-22D - A

5

01478-7

SCREW

6

01590-9

SCREW

7

1CM820

BOLT Was 01596-6 - B

8

01607-1

SCREW

9

01695-6

WASHER

10

01697-2

WASHER

11

006330-26W

SCREW

12

1CM1090

BOLT Was 12597-1 - A

13

7CM10110

SCREW Was 43197-3 - A

14

01681-6

NUT Was 51851-4 - B

15

100345-05V

NUT

16

100345-09A

NUT

17

1306637

CLIP

18

6624289

STRAP, TIE

19

6674235

RECEIVER DRIER

20

6678669

STRAP

21

6679034

MOUNT

22

6730266

SPACER

23

6730819

BELT

24

6927639

DRIER BRACKET

25

6927764

HOSE

25

7009977

O-RING

26

6927765

HOSE

26

7009976

O-RING

27

6933892

HOSES Was 6927766 - C

27

7009978

O-RING

28

6927767

HOSE

28

7009976

O-RING

29

6927768

HOSE

29

7009978

O-RING

30

6927772

HOSE W/Ref. 46

30

7009976

O-RING

31

6927774

CONDENSOR BRACKET

32

6927778

PLATE

33

6932024

BRACKET, COMPRESSOR

34

6932025

BRACKET, COMPRESSOR

35

6932227

COMPRESSOR Use Ref. 44-45 repair kits

36

6932961

PIN

37

7003035

CONDENSER, A/C

38

7167576

NUT, WING

39

28CM1025

BOLT

40

31H50

COLLAR

41

42HS48

CLAMP

42

30H49

CLAMP

43

6624289

STRAP, TIE

44

7015473

CLUTCH ASSEMBLY KIT all parts needed to replace the clutch (armature, rotor, field coil, accessory kit)

45

7015474

ROTOR/ARMATURE KIT all parts needed to replace the clutch armature and rotor pulley (field coil not included)

46

6675779

SWITCH, PRESS

Выбрано товаров: 52
