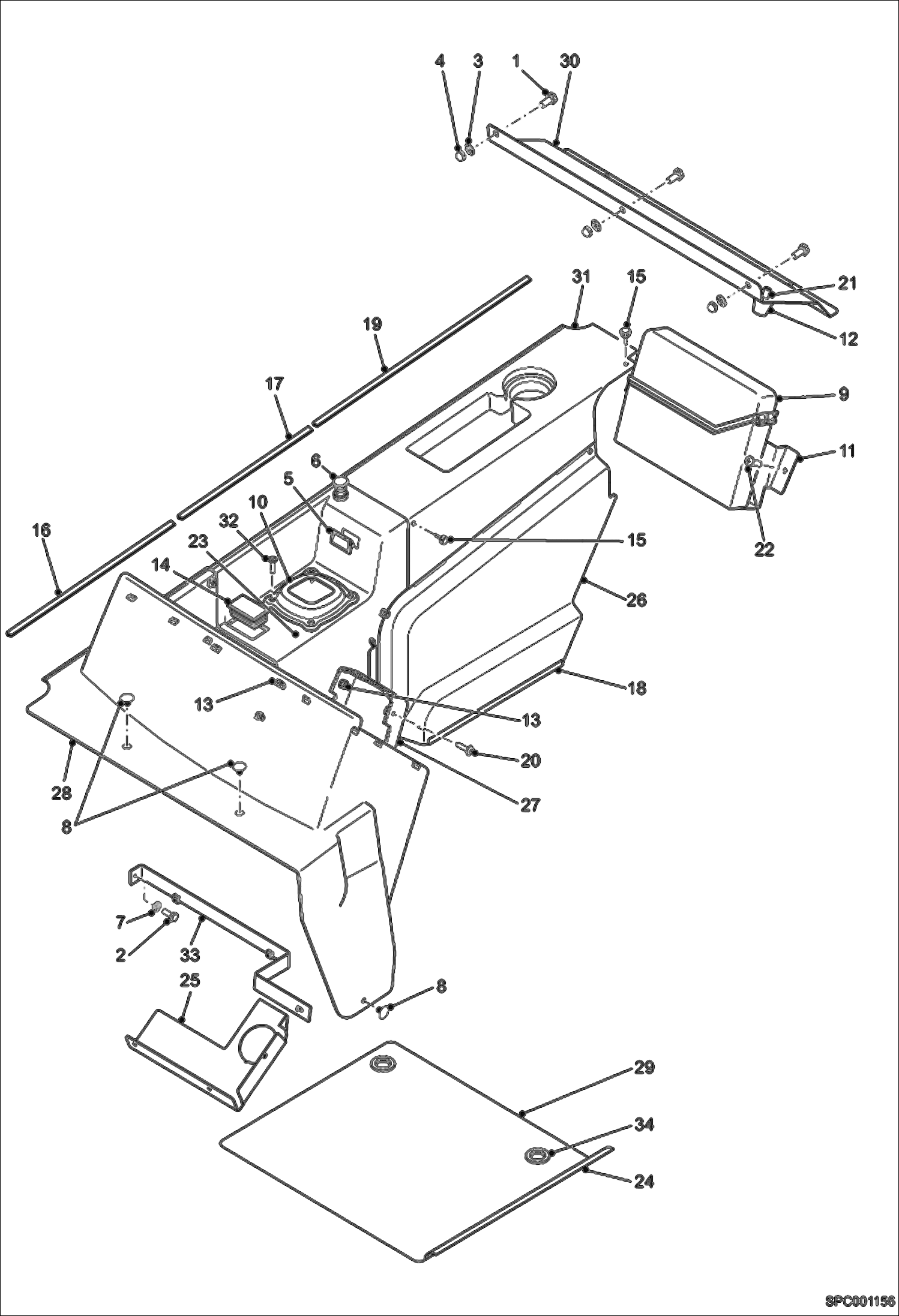

Запчасти Bobcat V417 COWLING INSTALLATION (S/N AC1D11001 - 12999) MAIN FRAME

1

01575-0

SCREW

2

01590-9

SCREW

3

01717-8

WASHER

4

63332-1

CAP

5

65784-1

CAP

6

92299-7

PLUG

7

94574-1

WASHER

8

6674895

RETAINER

9

6708827

CONTAINER

10

6909205

COVER , DUST

11

6909786

MANUAL HOLDER BRACKETT

12

6909902

ABUTMENT

13

6909903

CLIPS

14

6909904

COVER

15

7228977

NUT, BUTTON Was 97098-8 - B

16

TRIM, EDGE NAP - Order 430 mm of 78826.5 Was 6909930 - D

17

TRIM, EDGE NAP - Order 360 mm of 78826.5 Was 6909931 - D

18

TRIM, EDGE NAP - Order 400 mm of 78826.5 Was 6909932 - D

19

TRIM, EDGE NAP - Order 530 mm of 78826.5 Was 6909934 - D

20

6910505

SCREW

21

6910932

INSERT M8

22

6910937

SCREW

23

6912458

COWLING

24

6915508

NON SKID

25

6916983

SUPPORT

26

6917000

FUSE PANEL SIDE COWLING

27

6917132

STEERING COLUMN COWLING

28

6917152

DASH COWLING

29

6917429

MAT

30

6917534

ROOF COWLING

31

6918140

REAR COWLING

32

6918688

SCREW

33

6918874

REINFORCEMENT

34

6922849

GROMMET
