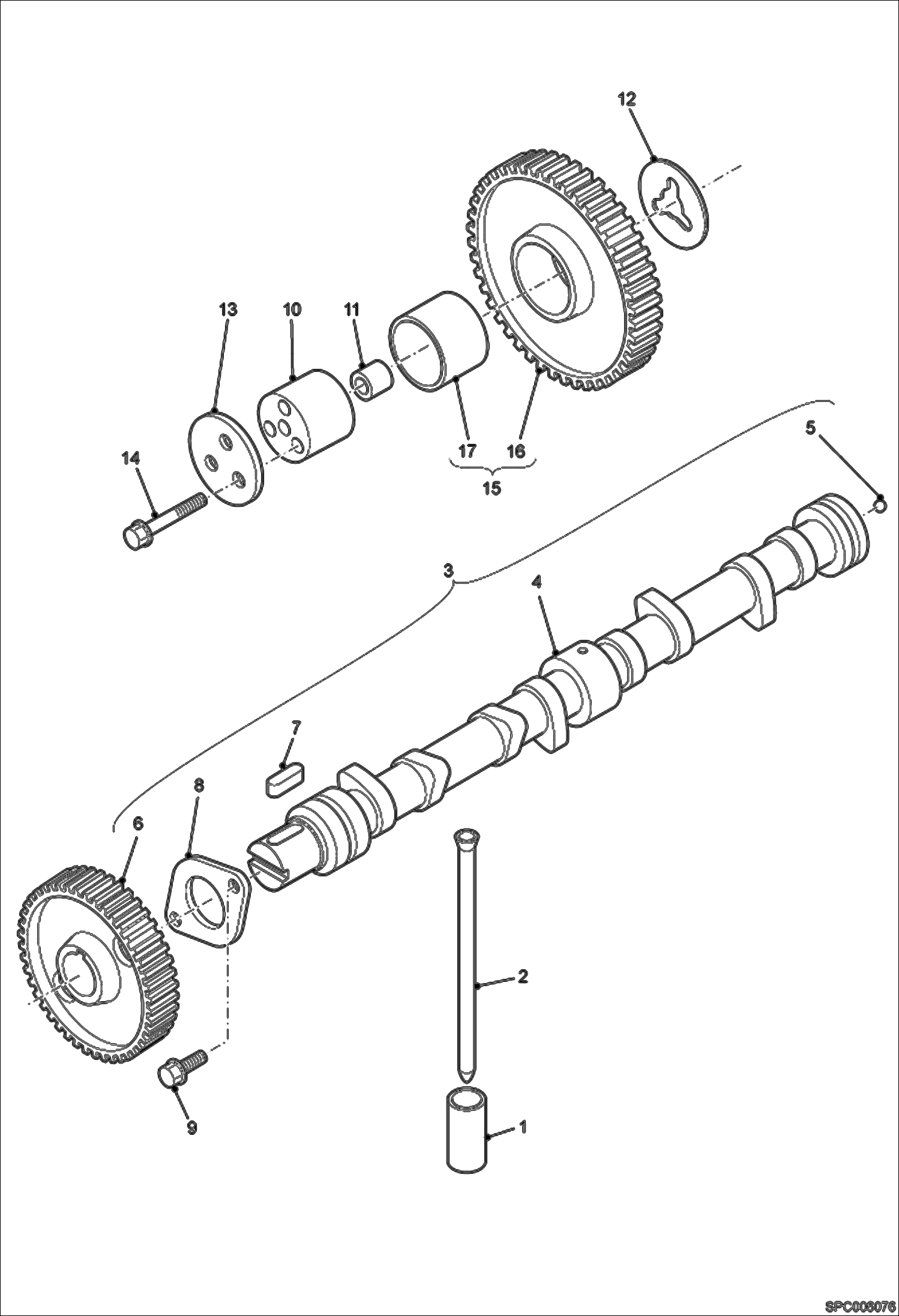

Запчасти Bobcat V417 CAMSHAFT AND IDLER GEAR SHAFT POWER UNIT

1

6680707

TAPPET

2

6680708

PUSH ROD

3

7017203

CAMSHAFT, VALVE W/Ref. 4-8 Was 6680709 - A

4

CAMSHAFT NAP - Order Ref. 3

5

6680710

BALL

6

7017197

GEAR, CAMSHAFT Was 6680711 - D

7

6652679

KEY

8

6680712

FLANGE

9

6680662

BOLT

10

6680714

SHAFT

11

6680715

PIN

12

6680716

COLLAR

13

6680717

COLLAR

14

6680685

BOLT

15

7017200

GEAR, IDLER W/Ref. 16-17 Was 6685932 - A

16

GEAR. IDLER NAP - Order Ref. 15

17

7024250

BUSHING, IDLE GEAR
