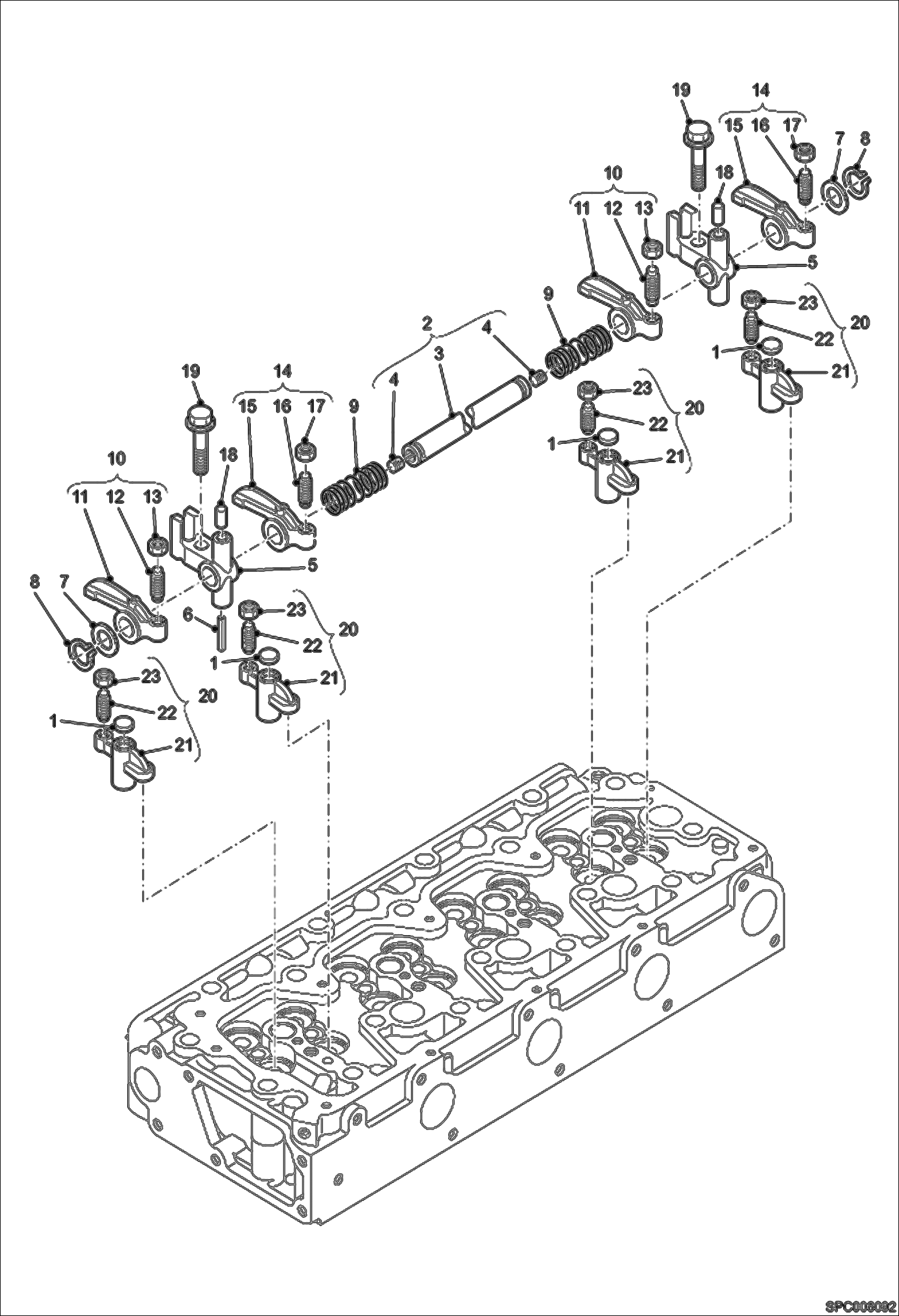

Запчасти Bobcat V417 VALVE AND ROCKER ARM POWER UNIT

1

7000665

PAD, WEAR Was 6680882 - A

2

6680868

SHAFT W/Ref. 3-4

3

SHAFT NAP - Order Ref. 2

4

25GM8010

SCREW

5

6680869

BRACKET

6

6667461

PIN

7

6680870

WASHER

8

6680871

SNAP RING external

9

6680872

SPRING

10

6680873

ROCKER ARM W/Ref. 11-13

11

ARM, ROCKER NAP - Order Ref. 10

12

3974920

SCREW

13

6680874

NUT

14

6680875

ROCKER ARM W/Ref. 15-17

15

ARM, ROCKER NAP - Order Ref. 14

16

3974920

SCREW

17

6680874

NUT

18

6680877

PIN

19

6680878

BOLT

20

6698524

ARM, VALVE BRIDGE W/Ref. 21-23 Was 6680879 - A

21

ARM, BRIDGE NAP - Order Ref. 20

22

6680880

SCREW

23

6657507

NUT
