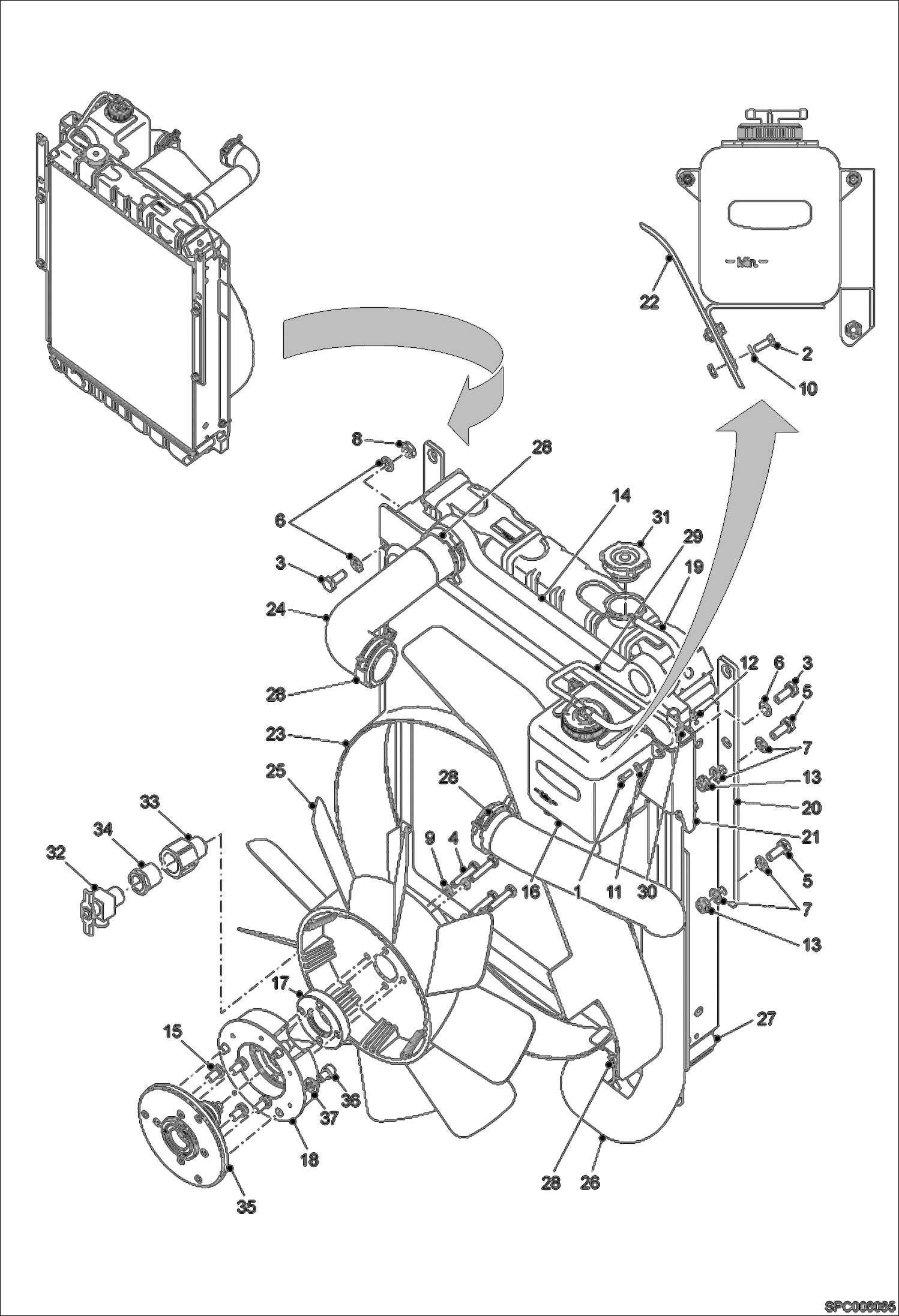

Запчасти Bobcat V417 COOLING SYSTEM INSTALLATION POWER UNIT

1

01478-7

SCREW

2

01590-9

SCREW

3

4CM825

BOLT Was 01597-4 - B

4

1CM840

BOLT Was 1CM-840 - D

5

01605-5

SCREW

6

01697-2

WASHER

7

01698-0

WASHER Z 10 U ZJ8

8

01681-6

NUT Was 51851-4 - B

9

89519-3

WASHER

10

94574-1

WASHER

11

98180-3

WASHER

12

100345-05V

NUT

13

100345-09A

NUT

14

6816530

SEAL

15

6918863

SCREW

16

6919508

EXPANSION TANK

17

6920525

SPACER

18

6920666

COUPLING W/Ref. 35-37

19

6921609

HOSE

20

6921690

SUPPORT

21

6923371

HOLDER

22

6923428

PLATE

23

6965504

HOUSING

24

6965506

HOSE

25

6965507

FAN, 9-BLADE

26

6965509

HOSE

27

6965531

RADIATOR W/Ref. 31-34

28

5HM58

CLAMP

29

6910264

HOSE D7L400

30

30H33

CLIP

31

6925304

PRESSURE CAP

32

6925305

DRAIN COOK ASSY

33

6925306

ADAPTER

34

6925307

BUSHING

35

7023227

FLANGE

36

7023230

BOLT

37

7023229

WASHER
