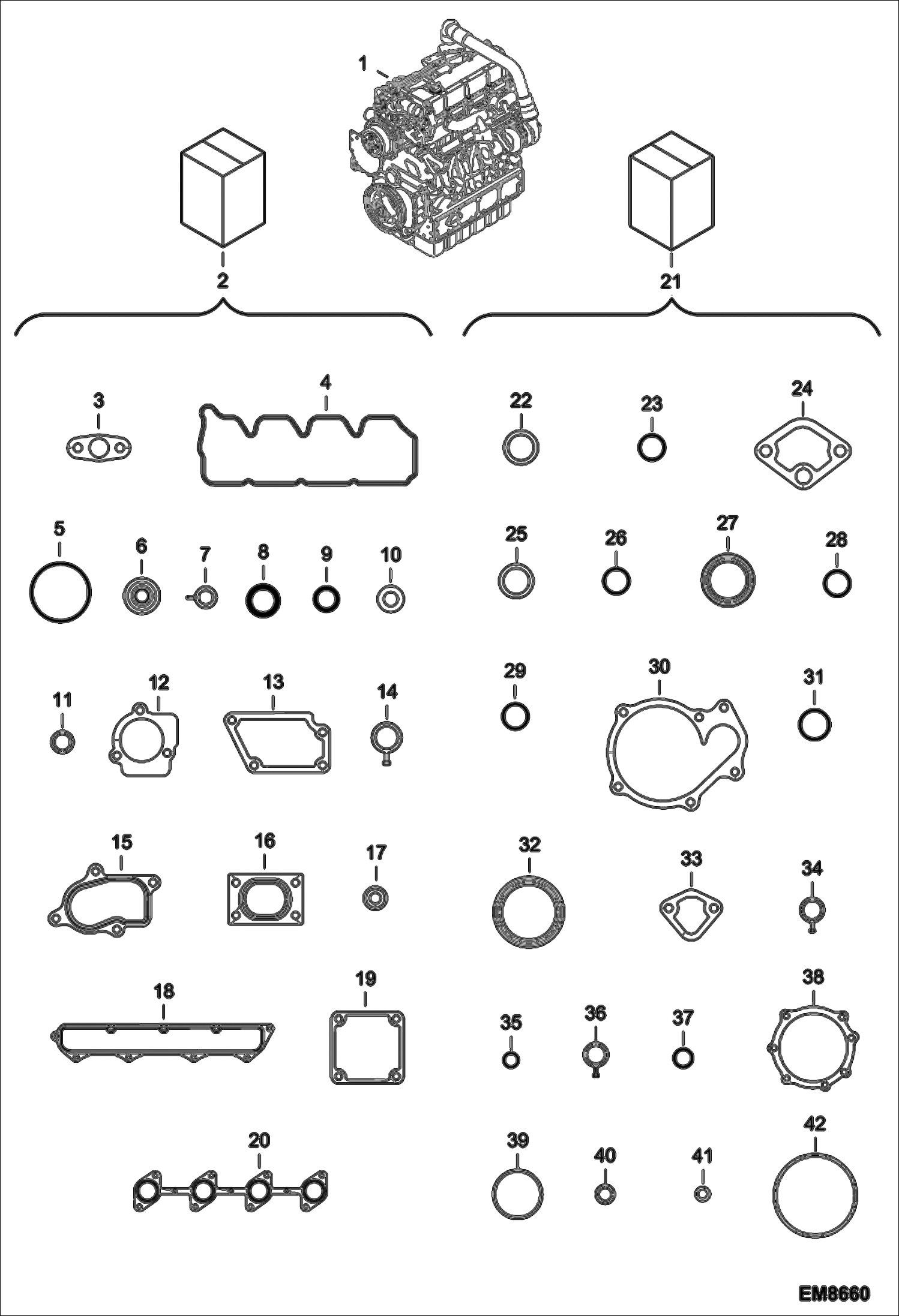

Запчасти Bobcat V417 ENGINE & GASKET KITS POWER UNIT

1

6920830

ENG, V3300DIT 74.9 HP EPA T2 / EU STG II for details: see following pages

1

6920830REM

ENGINE, KUBOTA V3300 DI-T-E2CB V417 for details: see following pages

2

6689756

KIT, GASKET ENG UPPER W/Ref. 3-20

3

6685964

GASKET

4

6680690

GASKET

5

6680691

O-RING

6

6680695

SEAL

7

6685498

GASKET

8

6670769

O-RING

9

6680778

O-RING

10

6680779

GASKET

11

3974095

MET-GASK Was 6680792 - B

12

6685955

GASKET

13

6680849

GASKET

14

6685962

WASHER, SEALING ALUMINUM

15

6685950

BEARING, BALL RADIAL & THRUST

16

7008514

GASKET, TURBO Was 6680893 - B

17

6672436

SEAL

18

6680884

GASKET

19

6689302

GASKET, A/C FLANGE

20

6680891

GASKET

21

6689755

KIT, GASKET ENG LOWER W/Ref. 22-42

22

6652751

GASKET

23

6684782

O-RING

24

6685923

GASKET

25

6670347

GASKET

26

6680661

O-RING

27

6680680

SEAL

28

6680681

O-RING

29

6680682

O-RING

30

6680853

GASKET

31

6680855

O-RING

32

6680705

SEAL

33

6670782

GASKET

34

6689331

GASKET

35

6683023

O-RING

36

6685962

WASHER, SEALING ALUMINUM

37

6685971

O-RING

38

6685948

GASKET

39

6680816

O-RING

40

3974095

MET-GASK Was 6680792 - B

41

3974972

GASKET

42

6680829

GASKET
