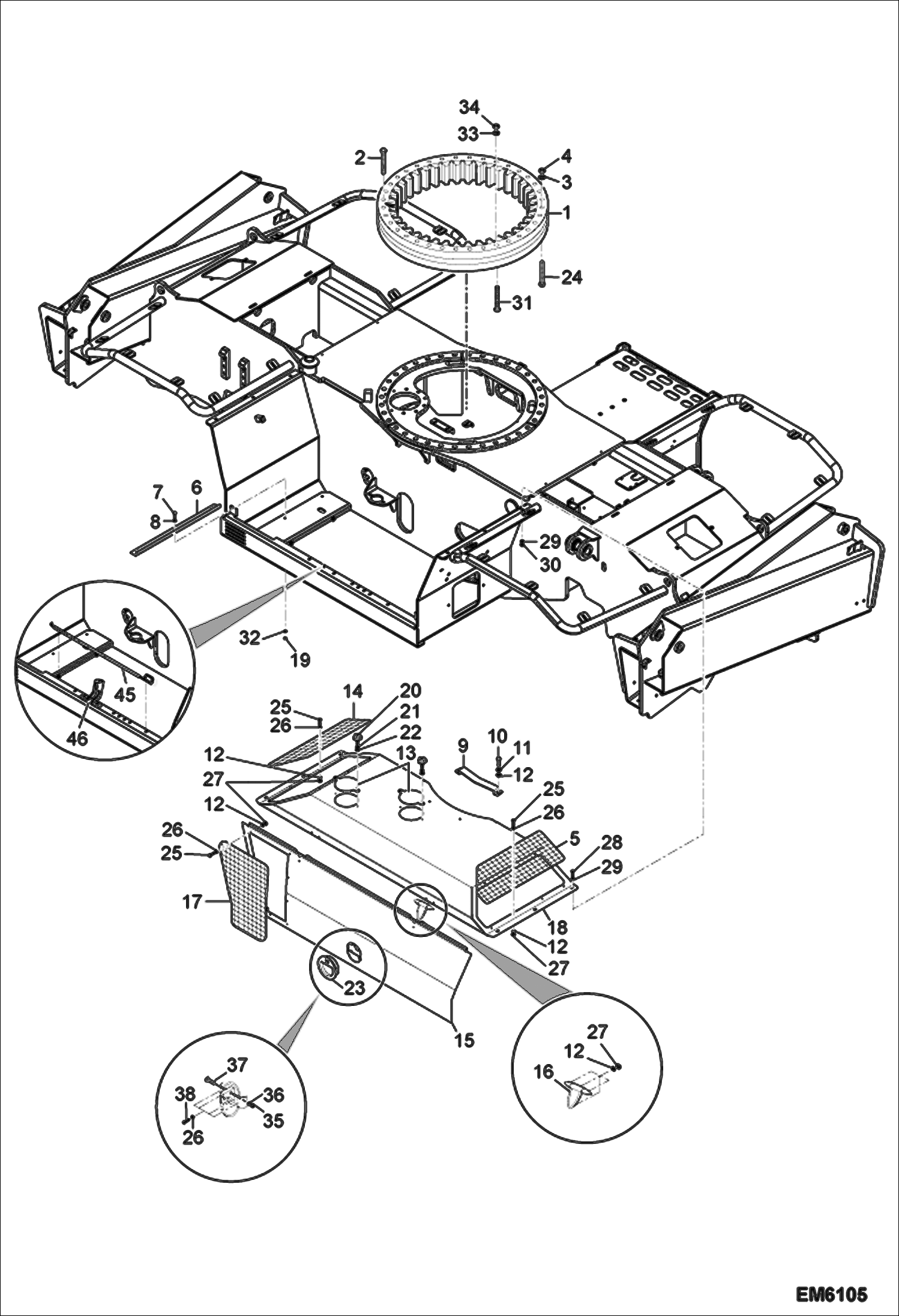

Запчасти Bobcat TR50210 COWLING, SUPPORTS & BEARING (Standard Frame) UNDERCARRIAGE

1

7014953

BEARING, BALL

2

7021438

SCREW

3

7020206

WASHER

4

7014563

NUT, SELF LOCKING

5

7015008

GRID

6

7015035

PLATE, CLAMPING

7

7014535

SCREW

8

7018162

WASHER

9

7015014

PLATE, ROTATION LIMIT

10

7018098

SCREW

11

7019738

WASHER

12

7018133

WASHER

13

7015020

COVER Was 7021591 - B

14

7015009

GRID

15

7019757

COWL Was 7014576 - A

16

7014992

HINGE

17

7015010

HOUSING

18

7019760

COWL Was 7014575 - A

19

NUT NLA Was 7014561 - A

20

7014971

HANDLE

21

7018133

WASHER

22

7020209

WASHER, LOCK

23

7014973

HANDLE

24

7021439

SCREW

25

7018098

SCREW

26

7019747

WASHER

27

7018059

NUT

28

7014535

SCREW

29

7018162

WASHER

30

NUT NLA Was 7014561 - A

31

7021440

SCREW Was 8021440 - B,D

32

7018061

WASHER

33

7020206

WASHER

34

7014563

NUT, SELF LOCKING

35

NUT NLA Was 7014561 - A

36

7018061

WASHER

37

7019726

SCREW

38

7020142

SCREW

45

7015195

ROD, BONNET SUPPORT

46

7014603

SUPPORT
