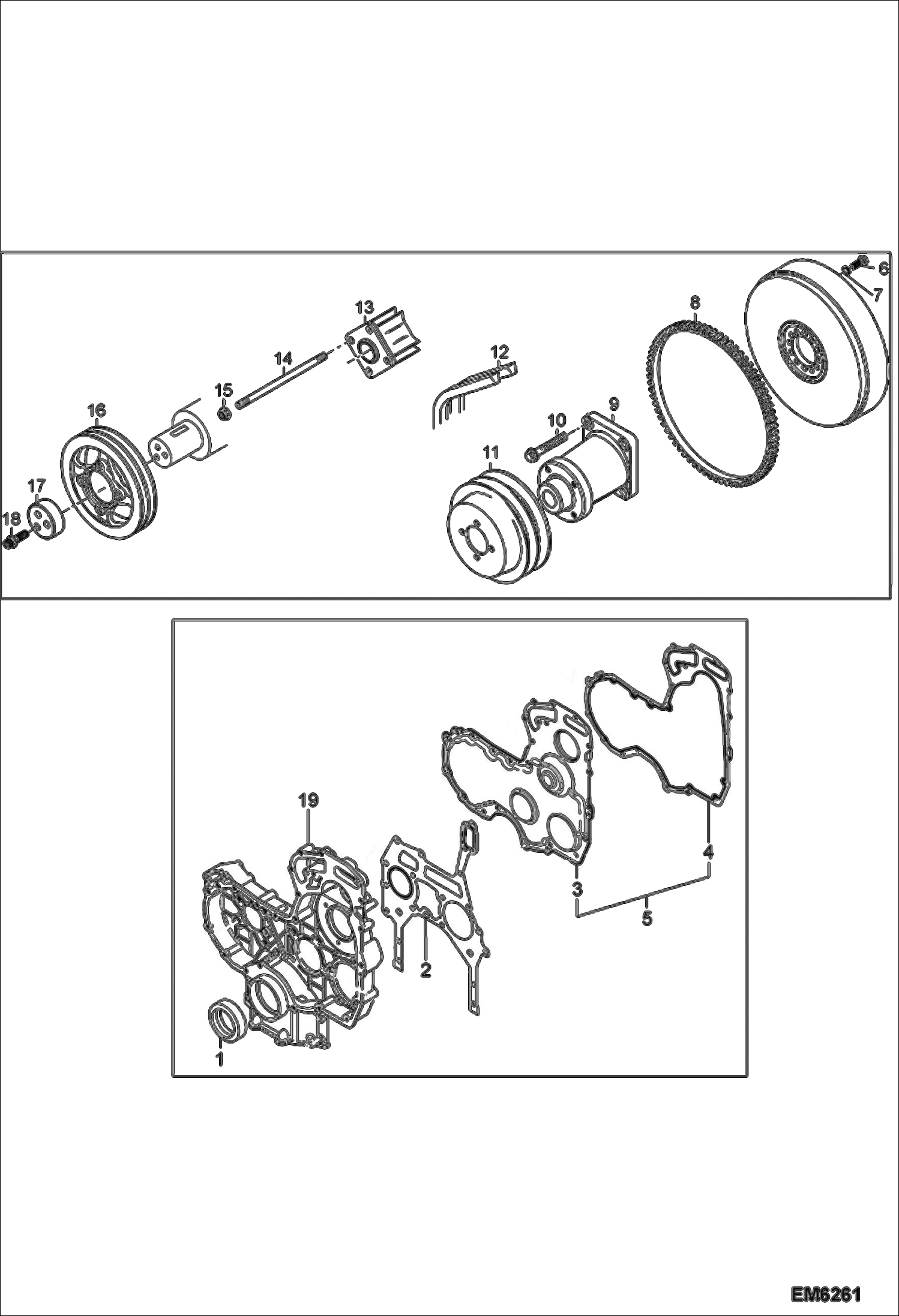

Запчасти Bobcat TR50210 GEARCASE & PULLEYS POWER UNIT

1

6924348

FRONT OIL SEAL Was 7014181 - C

2

6924902

GASKET - TIMING CASE Was 7014255 - C

3

HOUSING NLA - Order Ref. 5

4

6911972

COVER JOINT Was 7014254 - C

5

7014286

KIT, HOUSING Ref. 3-4

6

93213.7

SCREW Was 7014129 - C

7

7022444

WASHER Was 71307.3 - A

8

6515771

RING GEAR Was 55698.5 - A

9

7014278

SPACER

10

81082.0

SCREW Was 7014150 - C

11

92638.6

PULLEY Was 7014204 - C

12

7025275

BELT Was 7014187 - A

13

6670651

EXTENSION Was 7014268 - C

14

7014141

STUD

15

6514984

NUT-LOCK Was 7014160 - A

16

7014205

PULLEY

17

81037.4

Washer Was 7014220 - C

18

81036.6

Screw Was 7014213 - C

19

7014267

HOUSING
