Запчасти Bobcat TR50210 OIL PAN & CYLINDER HEAD POWER UNIT

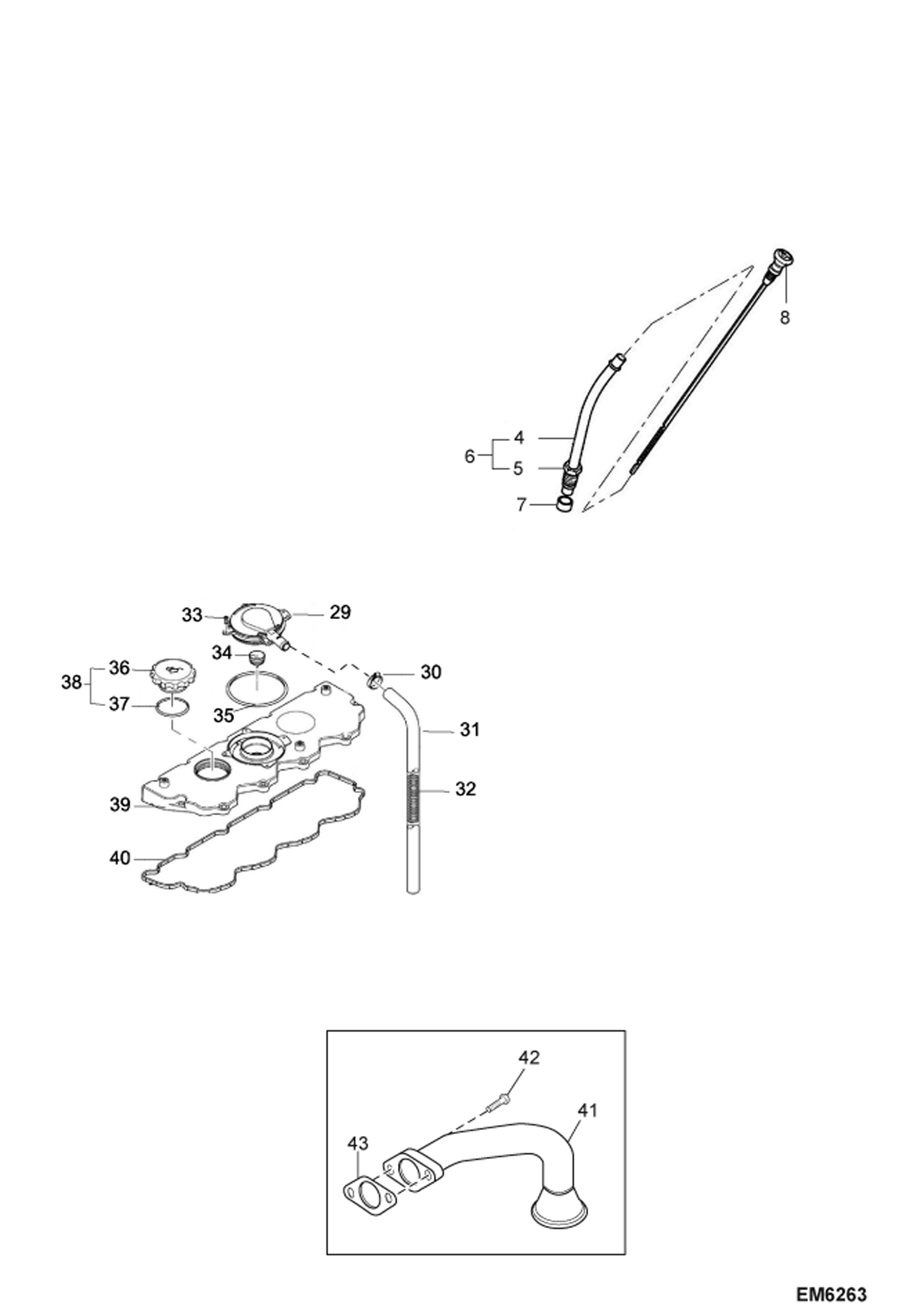

Схема запчастей Bobcat TR50210 - OIL PAN & CYLINDER HEAD POWER UNIT

Артикул

Название

Примечание

Количество

4

TUBE NLA - Order Ref. 6

5

7025273

NUT Was 71465.9 - A

6

7025274

TUBE, DIPSTICK Ref. 4-5 Was 81067.1 - A

7

6668485

SEAL Was 71466.7 - A

8

6668496

DIPSTICK Was 7014212 - C

29

CAP, BREATHER NLA Was 7014231 - A

30

6670940

CLIP Was 7014184 - C

31

6911950

HOSE Was 7014234 - C

32

7014211

SPRING

33

SCREW NLA Was 7014137 - A

34

CAP NLA Was 7014233 - A

35

7014179

GASKET

36

PLUG NLA - Order Ref. 38

37

6911879

O RING Was 7014164 - C

38

7022458

CAP, OIL FILLER Ref. 36-37 Was 81026.7 - B,D

39

7014289

HOUSING

40

7014251

GASKET

41

7014244

TUBE

42

6668278

SCREW Was 7022446 - A

43

7014260

GASKET

Выбрано товаров: 20
