Запчасти Bobcat TR50210 ENGINE & ATTACHING PARTS POWER UNIT

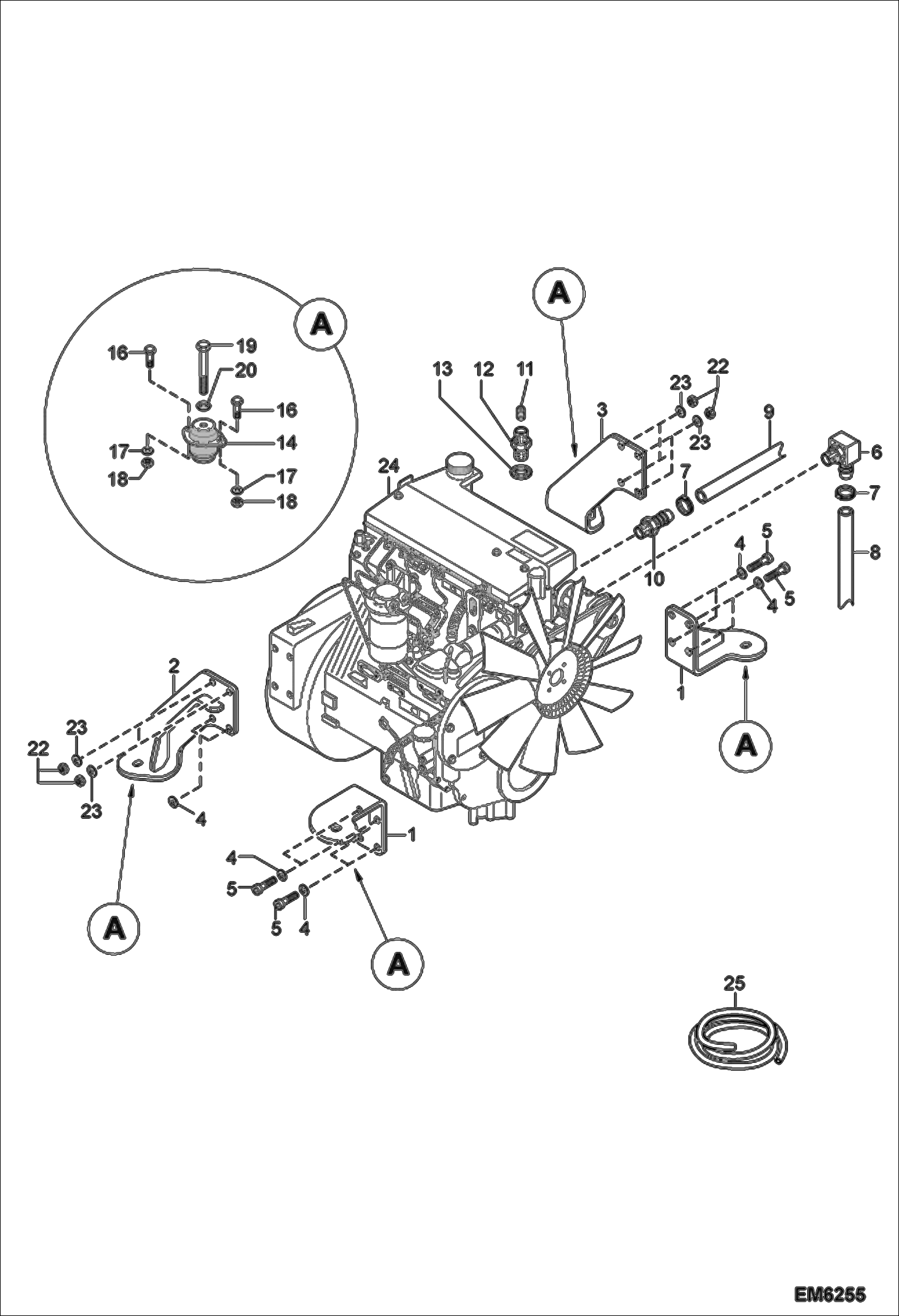

Схема запчастей Bobcat TR50210 - ENGINE & ATTACHING PARTS POWER UNIT

Артикул

Название

Примечание

Количество

1

7014600

BRACKET

2

7014602

BRACKET

3

7014601

BRACKET

4

7020214

WASHER

5

7019716

SCREW

6

FITTING, HYD In Coding Phase

7

7014975

CLAMP, HOSE

8

HOSE, HYD 1850 mm (72.84'') long - Order Ref. 30

9

HOSE, HYD 2100 mm (82.68'') long - Order Ref. 30

10

FITTING, HYD In Coding Phase

11

7014709

PIN, DOWEL

12

7021488

FITTING, HYD

13

7018145

WASHER, SEAL

14

7014974

BLOCK, SILENT

16

7019674

SCREW

17

7019748

WASHER

18

7014562

NUT

19

7019683

SCREW

20

7019742

WASHER

22

7014562

NUT

23

7019741

WASHER

24

7014892

MOTOR

25

7014832

HOSE bulk - sold per foot

Выбрано товаров: 23
