Запчасти Bobcat TR45190 AXLE OSCILLATING SUPPORTS DRIVE SYSTEM

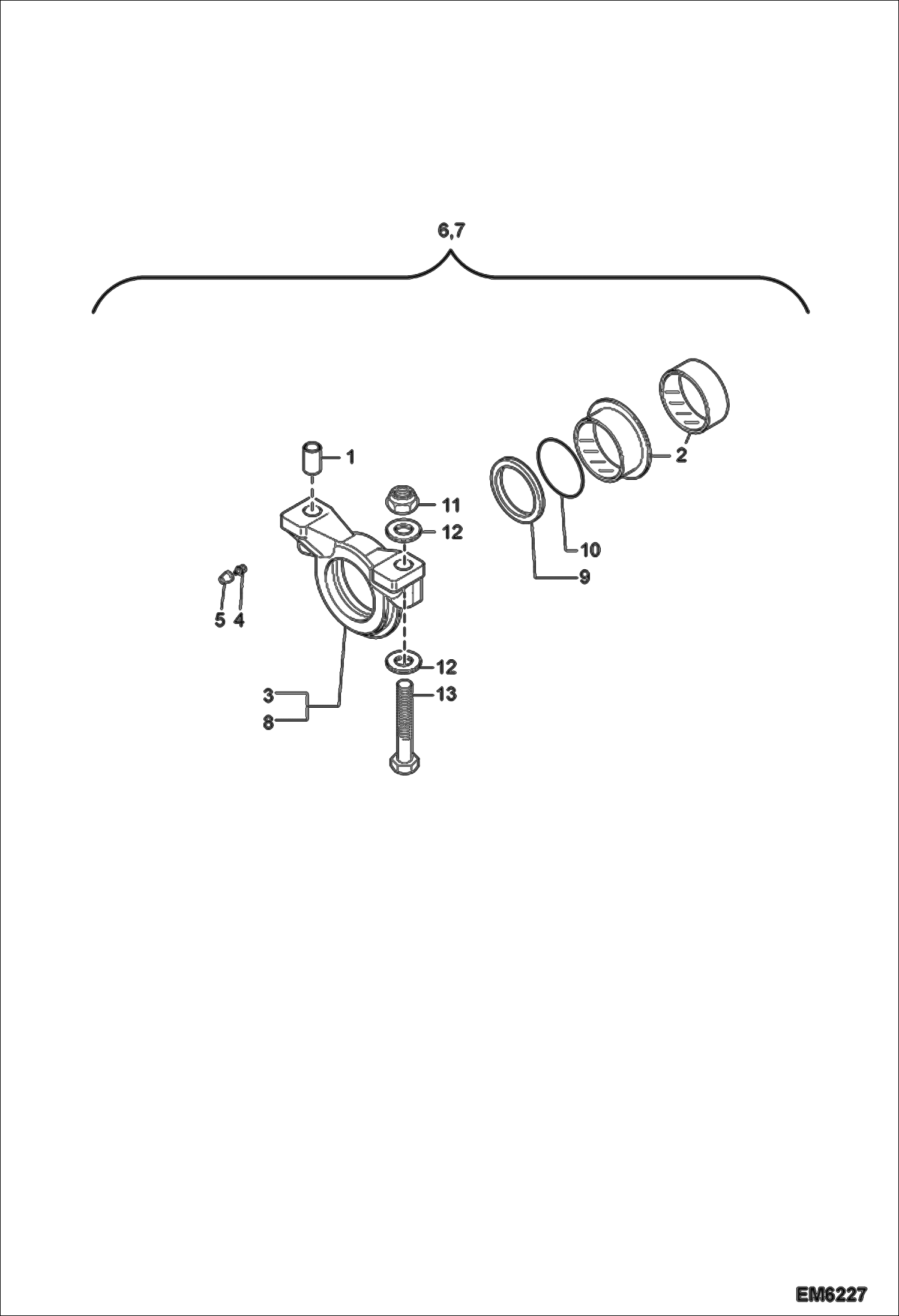

Схема запчастей Bobcat TR45190 - AXLE OSCILLATING SUPPORTS DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

6912681

BUSH Was 7014473 - B

2

6912827

BUSH Was 7014474 - B

3

6912879

SUPPORT Was 7014472 - B

4

6912700

LUBRICATOR Was 7014341 - B

5

6912629

PLUG Was 7014509 - B

6

6912880

SUPPORT front - W/Ref. 1-5 & 8-13 Was 7014475 - B

7

6912880

SUPPORT Rear - W/Ref. 1-5 & 8-13 Was 7014475 - B

8

6912879

SUPPORT Was 7014472 - B

9

SPACER NSS

10

O-RING NSS

11

7014542

NUT, LOCK

12

7020206

WASHER

13

7014560

SCREW
