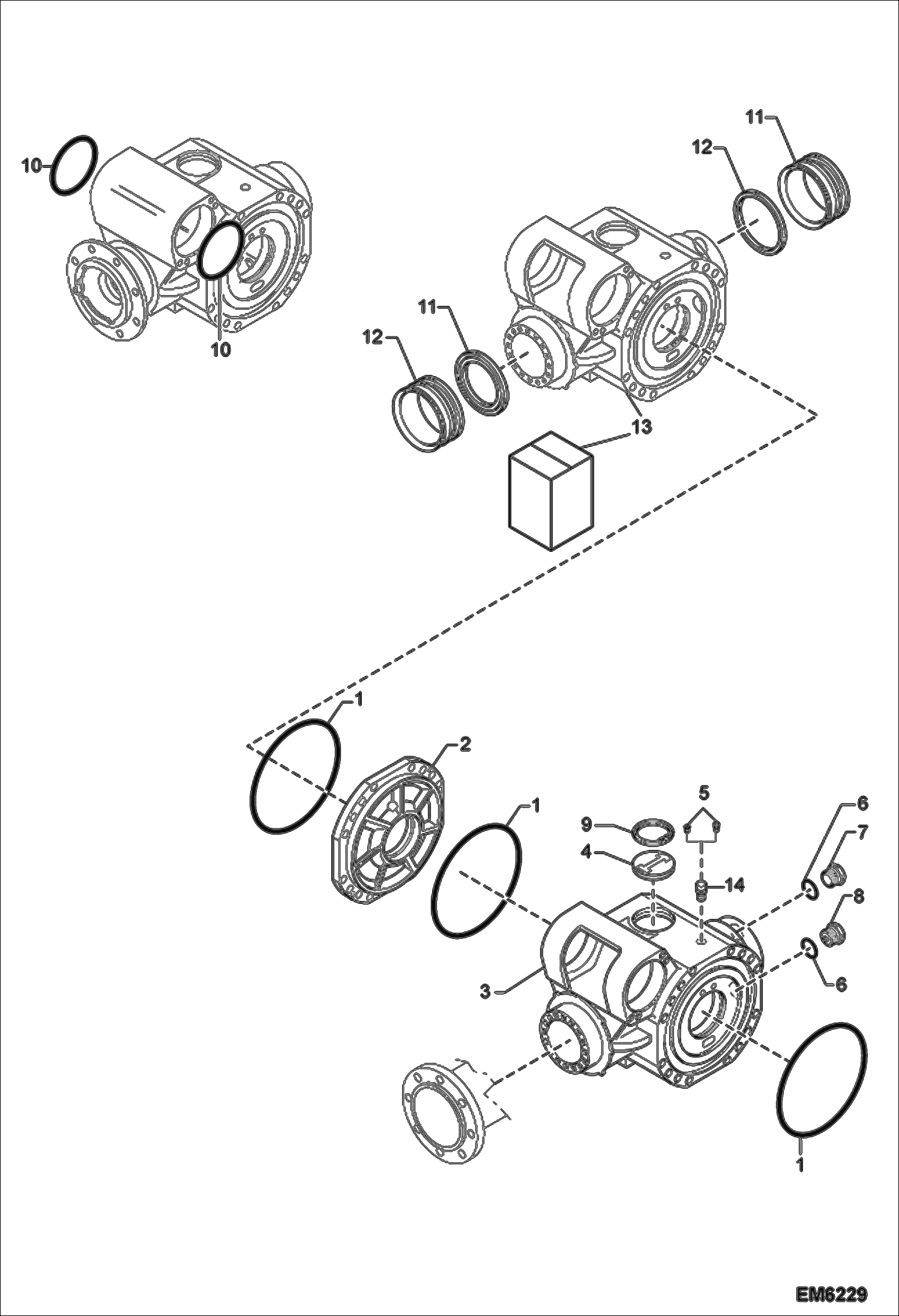

Запчасти Bobcat TR45190 FRONT AXLE DIFFERENTIAL INSTALLATION DRIVE SYSTEM

1

6912715

O'RING Was 7014309 - B

2

6912813

COVER Was 7014384 - B

3

7017793

HOUSING Was 7014429 - C

4

6912626

PLUG Was 7014425 - B

5

7010887

VENT Was 6912732 - A

6

O-RING NSS

7

6912625

PLUG Was 7014386 - B

8

7014387

PLUG, MAGNETIC

9

7014322

CIRCLIP

10

O-RING NSS

11

SPACER NSS

12

SPACER NSS

13

KIT NSS - W/Ref. 3 & 11-12

14

PLUG NSS
