Запчасти Bobcat TR45190 REAR AXLE DISC BRAKES DRIVE SYSTEM

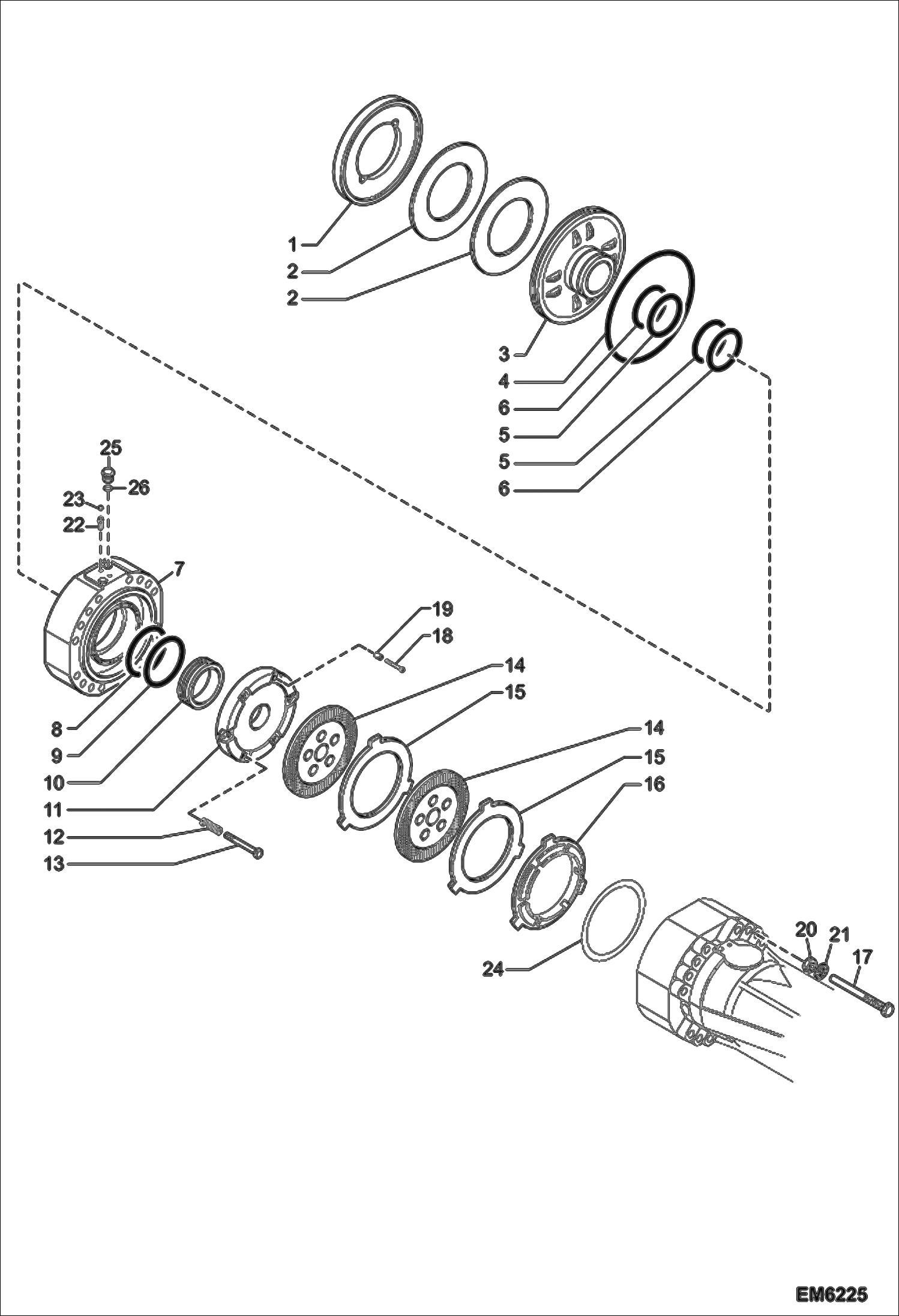

Схема запчастей Bobcat TR45190 - REAR AXLE DISC BRAKES DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

6912838

SPACER Was 7014452 - B

2

6912866

SPRING Was 7014427 - B

3

6912857

PISTON Was 7014445 - B

4

6912854

O'RING Was 7014316 - B

5

6912849

O'RING Was 7014306 - B

6

6912780

RING, BACK-UP Was 7014447 - B

7

7021402

RING, DISTANCE Was 7014452 - B

8

6912850

O'RING Was 7014307 - B

9

6912781

RING, BACK-UP Was 7014448 - B

10

6912858

PISTON Was 7014449 - B

11

7031276

BRAKE DISC, INTERMEDIATE Was 7014412 - B

12

6912865

SPRING Was 7014426 - B

13

6912897

SCREW Was 7014423 - B

14

7024652

DISC, BRAKE Was 7014421 - B

15

6912915

INTERMEDIATE DISC Was 7014413 - B

16

6912837

SPACER Was 7014446 - B

17

7014450

SCREW

18

6921027

ADJUSTING BOLT Was 7014420 - B

19

6912864

SPRING Was 7014411 - B

20

6912831

NUT Was 7014338 - B

21

6912867

WASHER Was 7014348 - B

22

6912775

SCREW Was 7014508 - B

23

6912629

PLUG Was 7014509 - B

24

6912799

SHIM 0,20MM 0,20 mm Was 7014364 - B

24

6912800

SHIM 0,30MM 0,30 mm Was 7014365 - B

24

6912801

SHIM 0,50MM 0,50 mm Was 7014366 - B

25

6912768

SCREW Was 7014379 - B

26

6912705

SEAL Was 7014344 - B

Выбрано товаров: 28
