Запчасти Bobcat TR45190 TWO SPEED REDUCER AND DISTRIBUTOR DRIVE SYSTEM

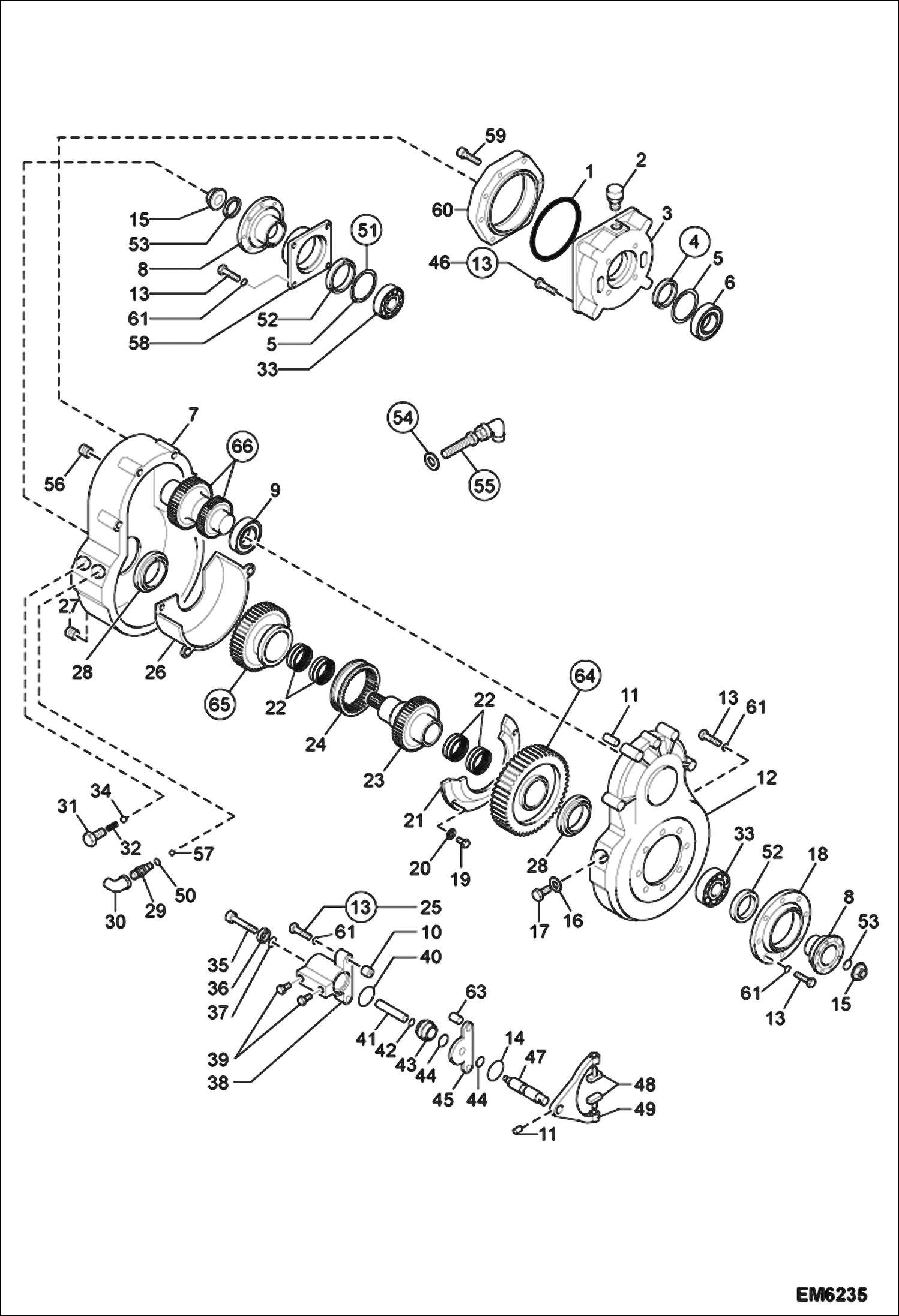

Схема запчастей Bobcat TR45190 - TWO SPEED REDUCER AND DISTRIBUTOR DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

6912717

O'RING Was 7014312 - B

2

7022224

VENT Was 7014483 - C

3

7014485

COVER

4

7022236

SEAL, SHAFT optional Was 7014302 - C

5

6912635

SHIM 0,10 mm Was 7014351 - B

5

6912636

SHIM 0,30 mm Was 7014352 - B

5

6912637

SHIM 0,40 mm Was 7014353 - B

5

6912790

SHIM 0,15MM 0,15 mm Was 7014354 - B

5

6912642

SHIM 0,20 mm Was 7014363 - B

6

6912871

BEARING Was 7014326 - B

7

7014484

COVER

8

7014501

FLANGE

9

7022230

BEARING, BALL Was 7014327 - C

10

7022244

PIN, ROLL Was 7014369 - C

11

7022232

PIN Was 7014368 - C

12

7014504

HOUSING

13

7014371

BOLT optional

14

7022231

O-RING Was 7014313 - C

15

6912834

NUT optional Was 7014500 - B

16

7014346

WASHER

17

7014380

BOLT

18

7014494

COVER

19

7022238

BOLT Was 7014370 - C

20

7022239

WASHER, LOCK Was 7014343 - C

21

7022240

COVERPLATE Was 7014499 - C

22

7022241

BEARING Was 7014331 - C

23

7014493

SHAFT

24

7014482

SLEEVE, SELECTOR

25

7014372

BOLT

26

7022245

PLATE, FLOW REGULATOR Was 7014498 - C

27

7023791

VALVE, RELIEF Was 7022246 - A

28

7022237

SPACER Was 7014489 - C

29

7022250

SWITCH, SECURITY Was 7014515 - C

30

7022249

BOOT Was 7014514 - C

31

7022251

BOLT Was 7014506 - C

32

7022252

SPRING Was 7014505 - C

33

7022719

BEARING, BALL Was 7022253 - A

34

6912621

BALL Was 7014350 - B

35

7022258

BOLT Was 7014374 - C

36

7022260

SEAL Was 7014319 - C

37

7022259

O-RING Was 7014320 - C

38

7014495

CYLINDER

39

7014383

PLUG

40

7022269

O-RING Was 7014315 - C

41

7022262

ROD, PISTON Was 7014497 - C

42

7022263

O-RING Was 7014317 - C

43

7022268

PISTON Was 7014496 - C

44

7031275

O-RING Was 7014314 - C

45

7022267

COVERPLATE Was 7014492 - C

46

SCREW NLA

47

7022266

SHAFT, SELECTOR Was 7014491 - C

48

7022264

PIN Was 7014481 - C

49

7022265

FORK, SELECTOR Was 7014490 - C

50

7022248

WASHER, SEAL Was 7014345 - C

51

SHIM NLA - optional

52

7022254

SEAL Was 7014303 - C

53

7022257

O-RING Was 7014305 - C

54

WASHER NLA - optional

55

CONNECTOR NLA - optional

56

7022227

PLUG Was 7014512 - C

57

7022247

O-RING Was 7014311 - C

58

7014486

COVER

59

SCREW NLA - optional

60

COVER NLA - optional

61

7022271

WASHER Was 7014342 - C

63

7022278

BOLT Was 7014378 - C

64

GEAR See Illustration GEARS/ EM6236

65

GEAR See Illustration GEARS/ EM6236

66

GEAR See Illustration GEARS/ EM6236

Выбрано товаров: 69
