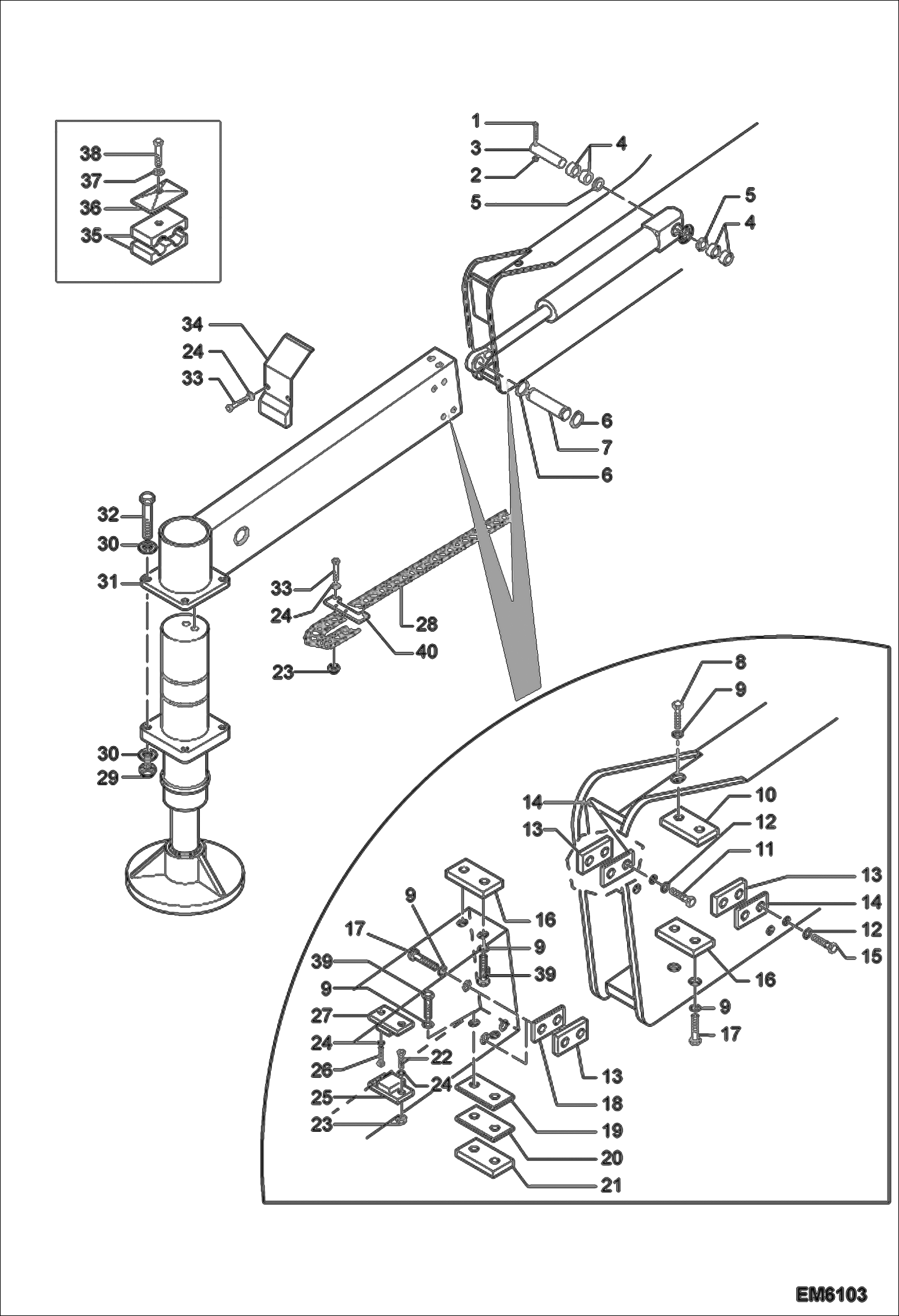

Запчасти Bobcat TR45190 STABILIZERS UNDERCARRIAGE

1

7021429

SCREW

2

7014562

NUT

3

7014896

PLUG

4

7021540

BUSHING

5

7021593

WASHER

6

7021573

RING, SNAP

7

7014895

PIN

8

7019681

STUD, HOLLOW

9

7020214

WASHER

10

7021583

PAD, WEAR

11

7019673

SCREW

12

7019741

WASHER

13

7021546

PAD, WEAR

14

7021579

SPACER

15

7018129

SCREW

16

7021549

PAD, WEAR

17

7018129

SCREW

18

7021578

SPACER

19

7021580

SPACER

20

7021581

SPACER

21

7021576

PAD, WEAR

22

7019725

SCREW

23

NUT NLA Was 7014561 - A

24

7018061

WASHER

25

7021547

PAD, WEAR

26

7021447

SCREW

27

7021548

PAD, WEAR

28

7014985

CHAIN

29

7014559

NUT

30

7021457

WASHER

31

7021478

STABILIZER Was 7014598 - A

32

7021431

BOLT

33

7014535

SCREW

34

7021577

HOUSING

35

7014979

SUPPORT

36

7014982

PLATE, SAFETY

37

7018061

WASHER

38

7014537

SCREW

39

7019684

SCREW

40

7015016

PLATE SAFETY
