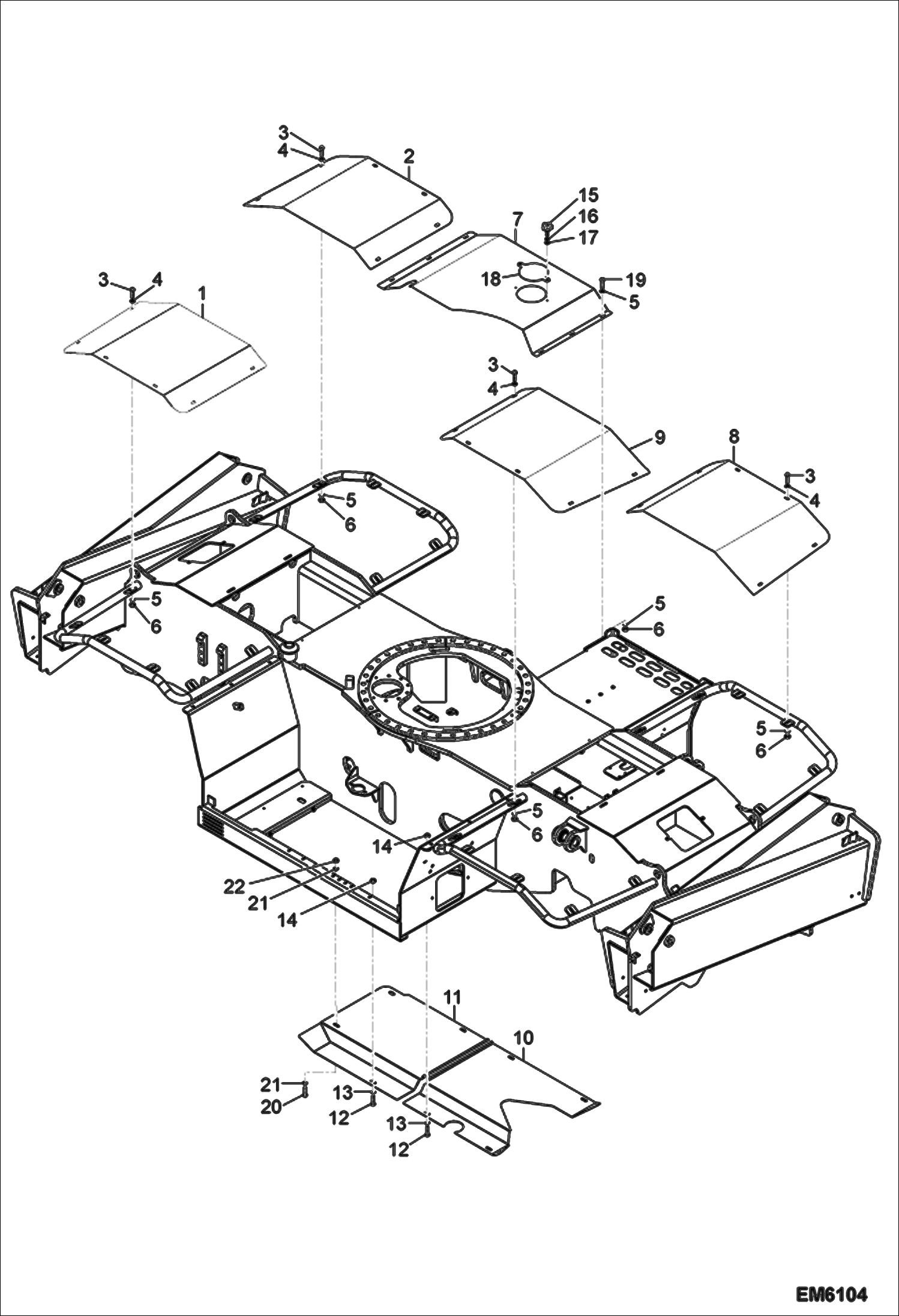

Запчасти Bobcat TR45190 COWLING & HOUSING (Standard Frame) UNDERCARRIAGE

1

7021585

HOUSING Was 7015025 - A

2

7021586

HOUSING Was 7015031 - A

3

7014555

SCREW

4

7014564

WASHER

5

7018162

WASHER

6

NUT NLA Was 7014561 - A

7

7019758

HOUSING Was 7014577 - A

8

7021585

HOUSING Was 7015025 - A

9

7021586

HOUSING Was 7015026 - A

10

7020164

HOUSING Was 7015030 - A

11

7021584

HOUSING Was 7015029 - A

12

7019673

SCREW

13

7019748

WASHER

14

7019735

NUT

15

7014971

HANDLE

16

7018133

WASHER

17

7020209

WASHER, LOCK

18

7015020

COVER Was 7021591 - B

19

7014534

SCREW

20

7019674

SCREW

21

7019748

WASHER

22

7014562

NUT
