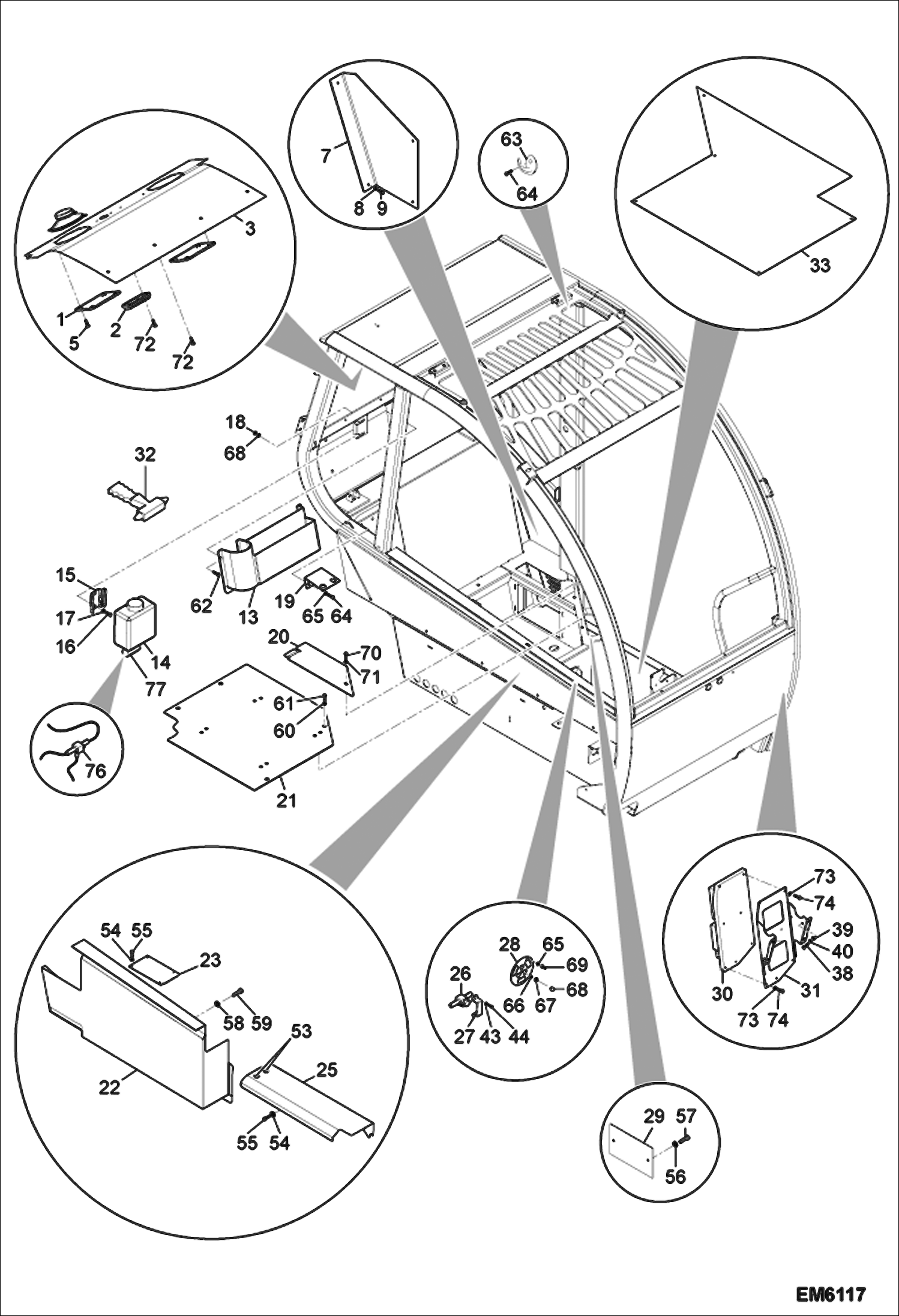

Запчасти Bobcat TR45190 OPERATOR CAB (Interior) MAIN FRAME

1

7013779

HOUSING

2

7013768

LIGHT, CEILING

3

7013796

COVER

5

7013914

SCREW

7

7013784

COVER

8

WASHER In coding phase

9

SCREW In coding phase

13

7013809

LINING

14

7013764

CONTAINER W/Ref. 77

15

7013767

HINGE

16

7013881

SCREW

17

7021456

WASHER Was 7018133 - B

18

7013895

NUT

19

7013840

PLATE

20

7013838

PLATE

21

7013836

PLATE

22

7013846

COVER

23

7013935

PLATE

25

7013933

PLATE

26

7019487

LEVER Was 7013936 - B,D

27

7013832

GUARD

28

7013830

ADAPTER

29

7013843

PLATE

30

7013935

PLATE

31

7013841

SUPPORT

32

7014524

HAMMER

33

7013785

PLATE, FOOTSTEP

38

7013874

SCREW

39

7020209

WASHER, LOCK Was 7013906 - B,D

40

7018133

WASHER Was 7013903 - B

43

WASHER In coding phase

44

SCREW In coding phase

53

7013797

GROMMET

54

7018133

WASHER Was 7013903 - B

55

7013860

SCREW

56

7013883

WASHER

57

7019747

WASHER Was 7013898 - B

58

7018162

WASHER Was 7013904 - B

59

7013862

SCREW

60

7013905

WASHER

61

7013865

SCREW

62

7013914

SCREW

63

7013808

HOOK

64

7013915

SCREW

65

7013908

WASHER

66

7013913

WASHER

67

7013924

NUT

68

7013803

NUT, COVER

69

7013818

SCREW

70

7013865

SCREW

71

7013905

WASHER

72

7013914

SCREW

73

7013896

WASHER

74

7013880

SCREW

76

7013763

FITTING

77

SCREW NLA - Order Ref. 14
