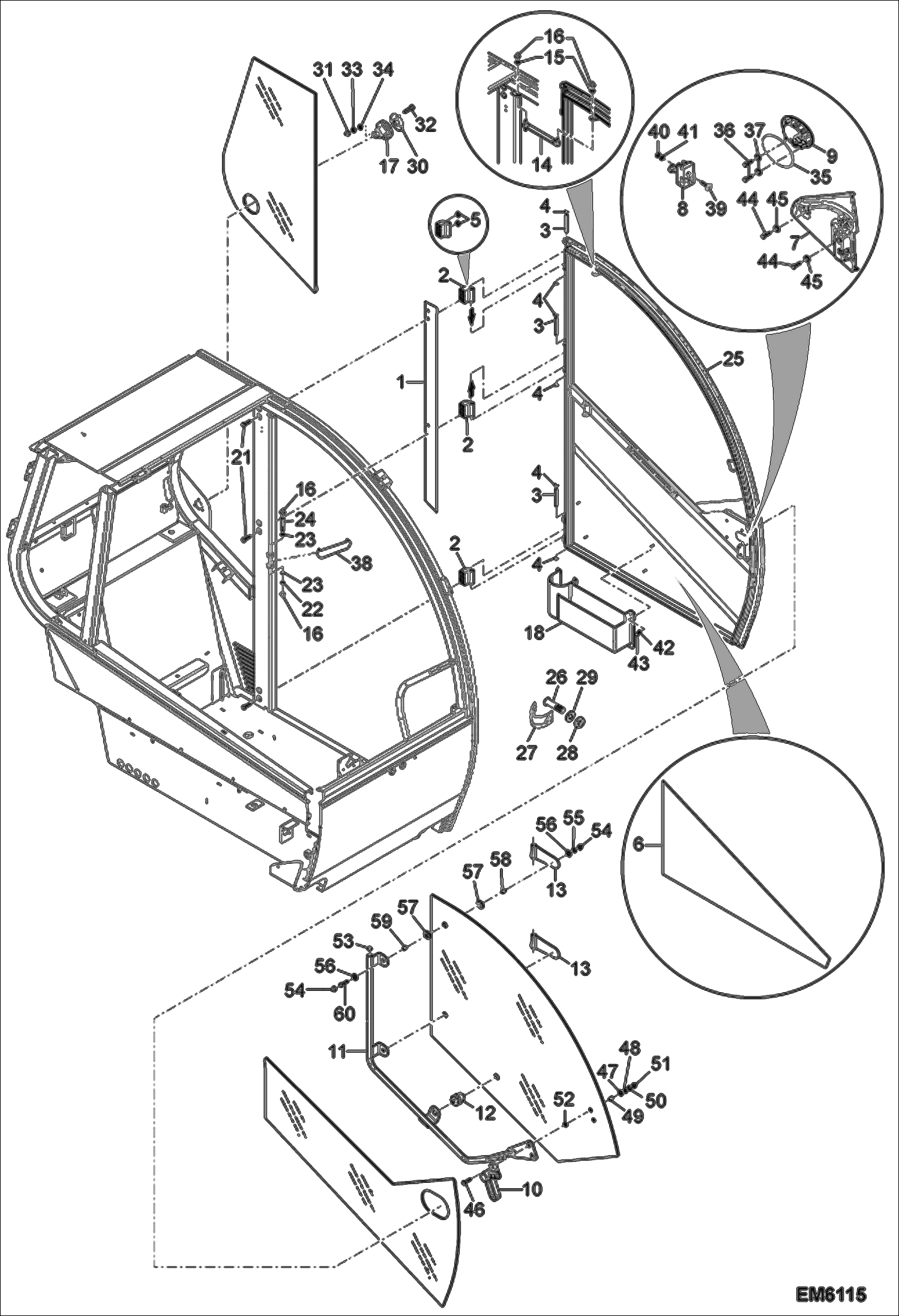

Запчасти Bobcat TR45190 OPERATOR CAB (Door) MAIN FRAME

1

7013926

HOUSING

2

7013752

HINGE

3

7013831

SCREW

4

7013917

WASHER

5

7013893

NUT

6

7013786

LINING

7

7013795

LINING

8

7013744

LOCK

9

7013739

GASKET

10

7013740

HANDLE

11

7013834

HANDLE

12

7013750

SPACER

13

7013835

HINGE

14

7013753

SPRING, GAS

15

7013893

NUT

16

7013804

NUT, COVER

17

7013748

STOP, DOOR

18

7013809

LINING

21

7021428

SCREW Was 7013867 - B,D

22

7013893

NUT

23

7018061

WASHER Was 7013899 - B,D

24

7021428

SCREW Was 7013867 - B,D

25

7013925

DOOR ASSY

26

7013745

SCREW, BLOCKING

27

7013746

GUARD

28

7013747

NUT

29

7013901

WASHER

30

7013749

GASKET

31

7013803

NUT, COVER

32

7018045

SCREW Was 7013861 - B,D

33

7018059

NUT Was 7013894 - B,D

34

7019747

WASHER Was 7013898 - B,D

35

7020666

GASKET

36

7014554

SCREW Was 7013887 - B,D

37

7020209

WASHER, LOCK Was 7013906 - B,D

38

7013807

CLAMP

39

7021447

SCREW Was 7013876 - B,D

40

7013885

NUT

41

7013907

WASHER

42

7013891

SCREW

43

7013803

NUT, COVER

44

7013666

SCREW

45

7013916

WASHER

46

7013882

SCREW

47

7020668

WASHER

48

7018133

WASHER Was 7013902 - C

49

7013820

SPACER

50

7013892

NUT

51

7013802

NUT, COVER

52

7013824

WASHER

53

7013806

PLUG

54

7013804

NUT, COVER

55

7013893

NUT

56

7013904

WASHER

57

7013821

WASHER

58

7013823

SPACER

59

7013811

SPACER

60

7013871

SCREW
