Запчасти Bobcat TR45190 FUEL & OIL TANK INSTALLATION POWER UNIT

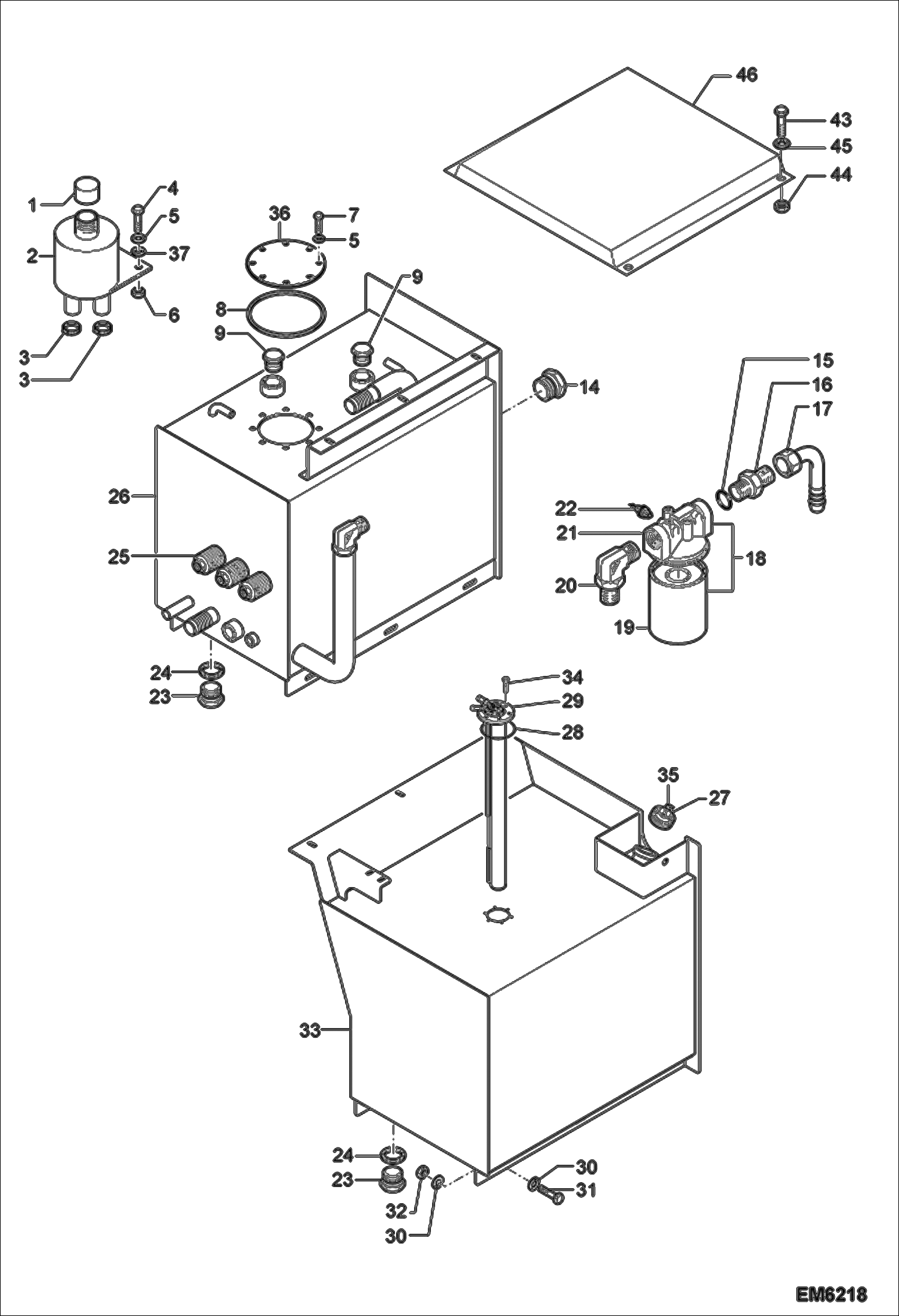

Схема запчастей Bobcat TR45190 - FUEL & OIL TANK INSTALLATION POWER UNIT

Артикул

Название

Примечание

Количество

1

7014737

PLUG

2

7014606

VENT

3

7020106

CLAMP

4

7014535

SCREW

5

7018061

WASHER

6

NUT Was 7014561 - A

7

7021426

BOLT

8

7020059

GASKET Was 7014913 - C

9

7019895

PLUG

14

7019894

PLUG, OIL LEVEL

15

7020669

O-RING

16

7021491

FITTING, HYD

17

7021495

FITTING, ELBOW

18

7014685

FILTER ASSY, HYD OIL W/Ref. 19 & 21

19

7014687

CARTRIDGE, HYD OIL FILTER

20

7019853

FITTING, HYD ELBOW

21

7014688

HEAD

22

7014689

GAUGE, OIL FILTER

23

7019831

PLUG

24

7018154

WASHER

25

7014684

FILTER, HYD MESH

26

7014585

TANK, OIL Was 7021462 - B,D

27

7014738

PLUG

28

7014952

GASKET

29

7014951

TUBE, SUCTION

30

7019748

WASHER

31

7019674

SCREW

32

7014562

NUT

33

7014583

TANK, FUEL

34

7018127

SCREW

35

7014083

KEY

36

FLANGE In Coding Phase

37

7018162

WASHER

43

7014534

SCREW

44

NUT Was 7014561 - A

45

7018162

WASHER

46

7019758

HOUSING

Выбрано товаров: 37
