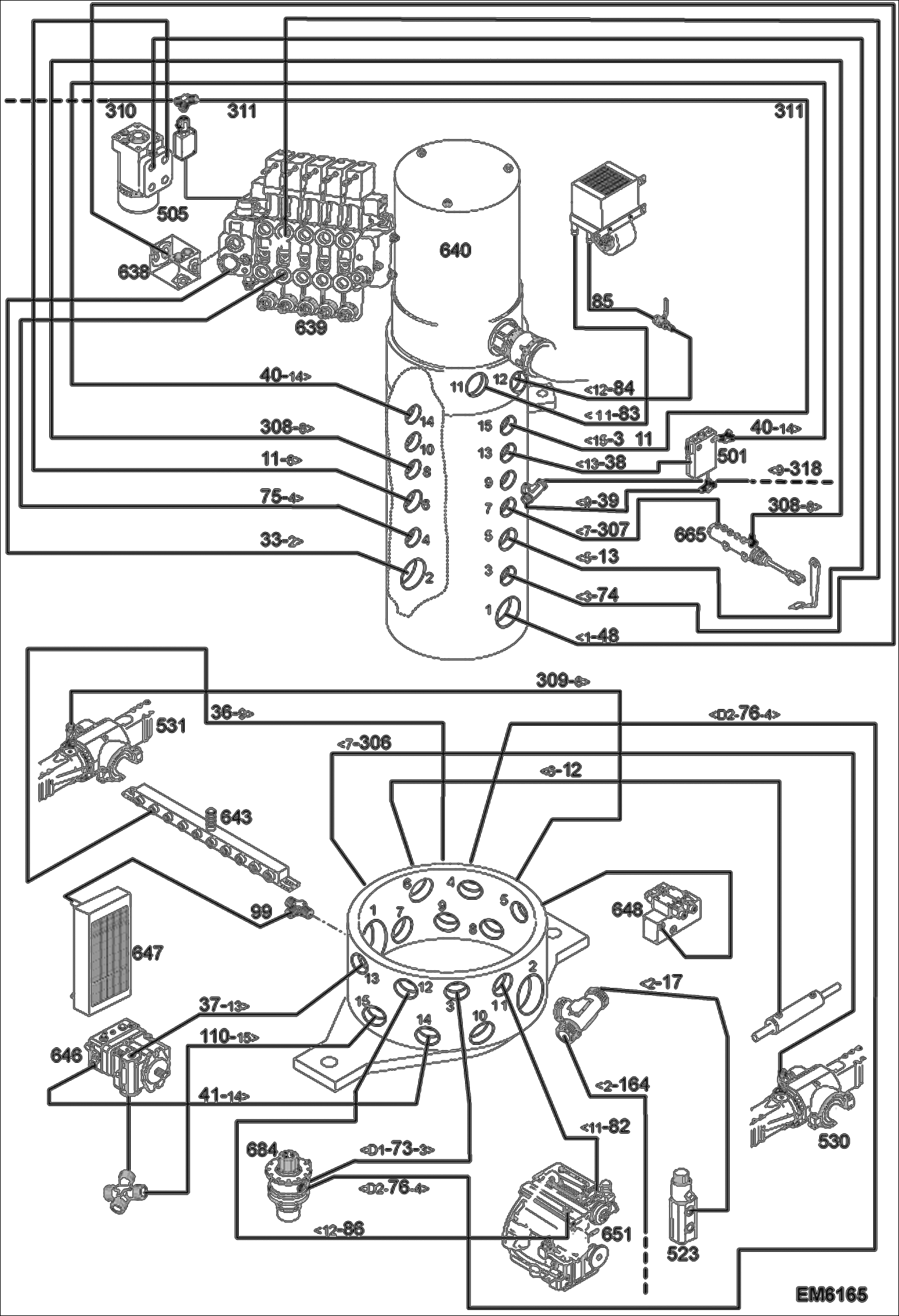

Запчасти Bobcat TR40250 HYDRAULIC CIRCUITRY (Swivel) (S/N & Below) HYDRAULIC SYSTEM

11

7014850

HOSE ASSY

12

7015223

HOSE ASSY

13

7014852

HOSE ASSY

17

7015259

HOSE, HYD

33

7015252

HOSE ASSY Was 7015253 - A

36

7021608

HOSE, HYD Was 7015211 - A

37

7015206

HOSE ASSY

38

7014848

HOSE ASSY

39

7014849

HOSE ASSY

40

7015215

HOSE ASSY

41

7015205

HOSE ASSY

48

7020211

HOSE, HYD

73

7015233

HOSE ASSY

74

7015236

HOSE ASSY Was 7015238 - A

75

7015235

HOSE ASSY Was 7015237 - A

76

7015234

HOSE ASSY

82

7014673

HOSE ASSY

83

7014831

HOSE ASSY

84

7014830

HOSE ASSY

85

7014829

HOSE ASSY

86

7014673

HOSE ASSY

99

7014865

HOSE ASSY

110

7015200

HOSE, HYD

164

7021626

HOSE, HYD

306

7014844

HOSE ASSY

307

7014845

HOSE ASSY

308

7014845

HOSE ASSY

309

7014844

HOSE ASSY

311

7021599

HOSE, HYD Was 7015210 - A

318

7021607

HOSE, HYD

501

7014698

SWITCH, INCHING

505

7014736

VALVE, HYDRAULIC STEERING

505

7025620

VALVE, STEERING

523

7014676

SWITCH, HYDRAULIC

530

7014457

AXLE, FRONT

531

7014456

AXLE, REAR

638

7014825

MANIFOLD

639

7014679

CONTROL VALVE ASSY See Illustration VALVE SECTION/ EM6202

640

7014683

SWIVEL JOINT See Illustration SWIVEL JOINT INSTALLATION/ EM6200

643

7014824

MANIFOLD See Illustration MANIFOLD INSTALLATION/ EM6215

646

7014695

PUMP See Illustration PUMPS & MOTORS/ EM6192

647

7014944

COOLING

648

7014720

SOLENOID VALVE ASSY

651

7014892

MOTOR

665

7014654

CYLINDER, BRAKE MASTER See Illustration STEERING, INCHING & BRAKE/ EM6194

684

7014891

REDUCER See Illustration SLEW MOTOR INSTALLATION/ EM6219
