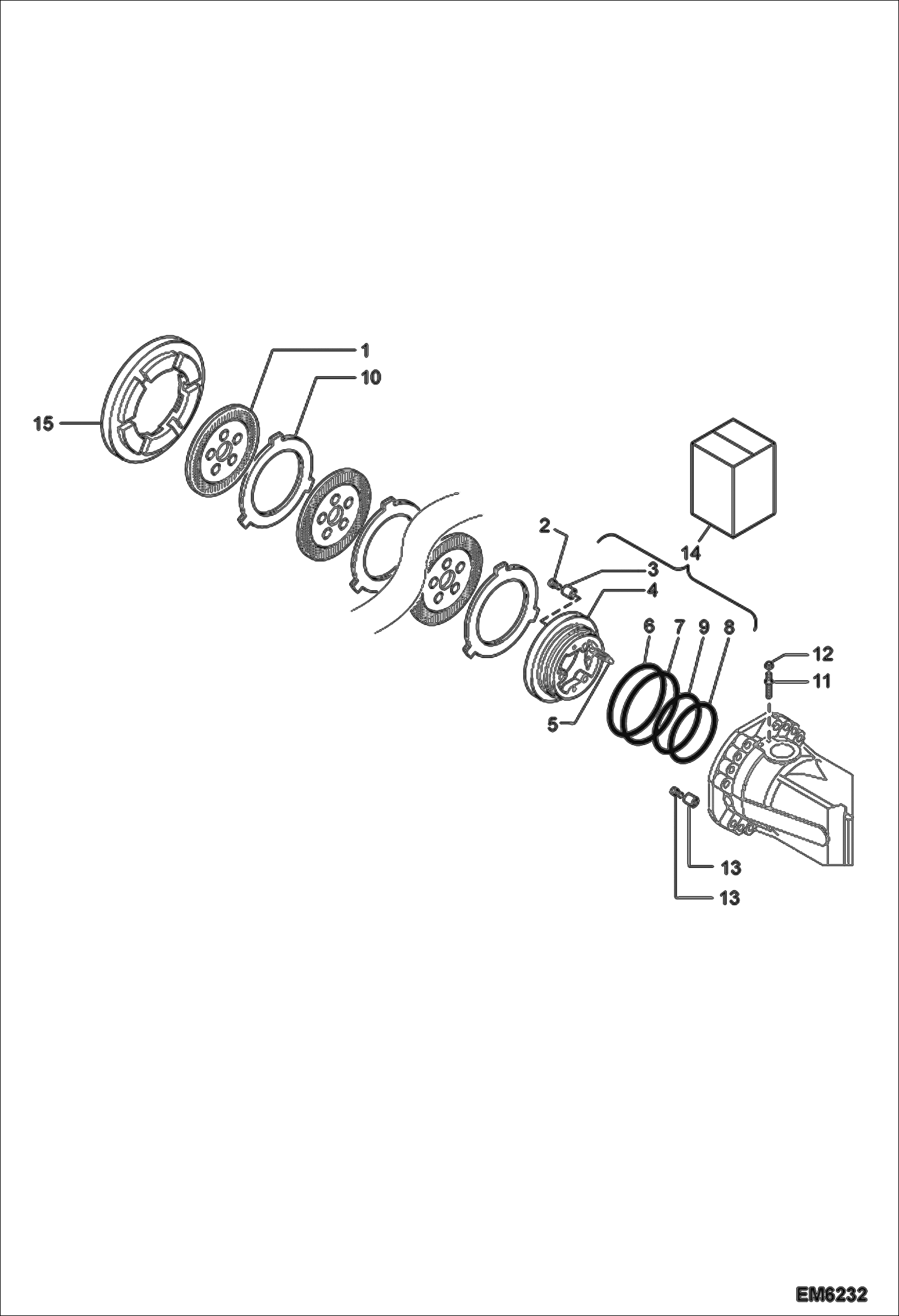

Запчасти Bobcat TR40250 FRONT AXLE DISC BRAKES DRIVE SYSTEM

1

7024652

DISC, BRAKE Was 7014421 - B

2

7014419

BOLT, ADJUSTING

3

6912864

SPRING Was 7014411 - B

4

7017802

PISTON Was 7014414 - C

5

7017803

SPRING Was 7014428 - C

6

7017804

RING, BACK-UP Was 7014418 - C

7

7017805

O-RING Was 7014416 - C

8

7017806

RING, BACK-UP Was 7014417 - C

9

7017807

O-RING Was 7014415 - C

10

6912915

INTERMEDIATE DISC Was 7014413 - B

11

6912775

SCREW Was 7014508 - B

12

6912629

PLUG Was 7014509 - B

13

7017808

PIN Was 7014367 - C

14

7017809

KIT, PISTON ASSY W/Ref. 3-4 & 6-9 Was 7014422 - C

15

7014451

SPACER
