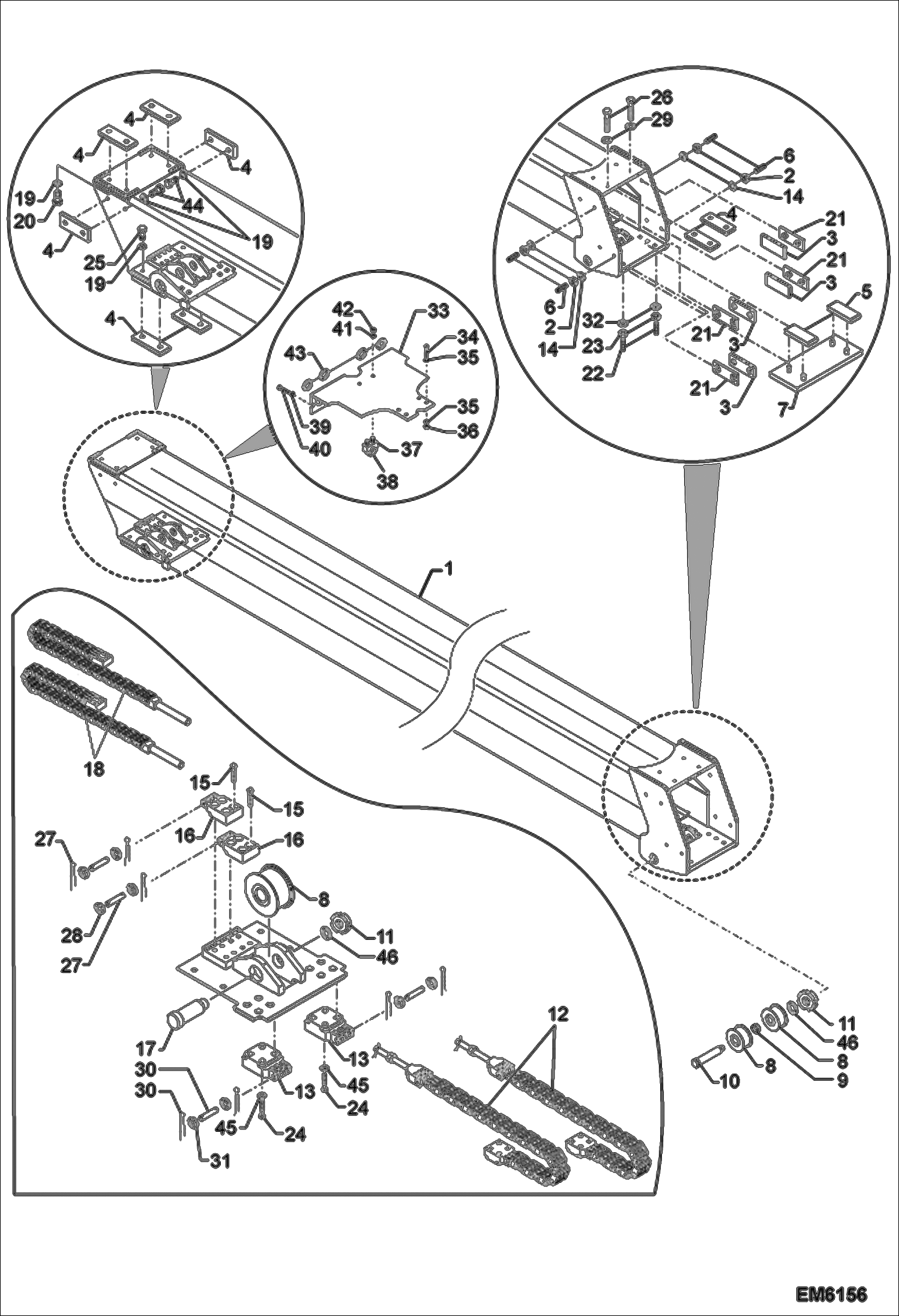

Запчасти Bobcat TR40250 2ND INTERMEDIATE BOOM MAIN FRAME

1

7014587

BOOM

2

7019729

NUT

3

7020577

PAD, WEAR

4

7020055

PAD, WEAR

5

7020578

PAD, WEAR

6

7020579

PIN, DOWEL

7

7020576

PLATE

8

7014942

PULLEY

9

7015191

BUSHING

10

7014899

PIN

11

7014565

NUT, CAGED

12

7014963

CHAIN

13

7014966

CONNECTOR

14

7020580

WASHER

15

7021436

SCREW

16

7014967

CONNECTOR

17

7014897

PIN

18

7014965

CHAIN

19

7020214

WASHER

20

7019682

SCREW

21

7020575

SPACER

22

7020581

PIN, DOWEL

23

7020582

NUT

24

7020590

SCREW

25

7019685

SCREW

26

7019682

SCREW

27

7021564

PIN, LOCK

28

7018061

WASHER

29

7020214

WASHER

30

7021565

PIN, LOCK

31

7018287

WASHER

32

7020583

WASHER

33

7015039

HOUSING

34

7014547

SCREW

35

7018133

WASHER

36

7018059

NUT

37

7014969

COLLAR

38

7014980

CLAMP

39

7019741

WASHER

40

7019675

SCREW

41

7018061

WASHER

42

NUT NLA Was 7014561 - A

43

7021574

GROMMET

44

7019683

SCREW

45

7020580

WASHER

46

7020205

WASHER
