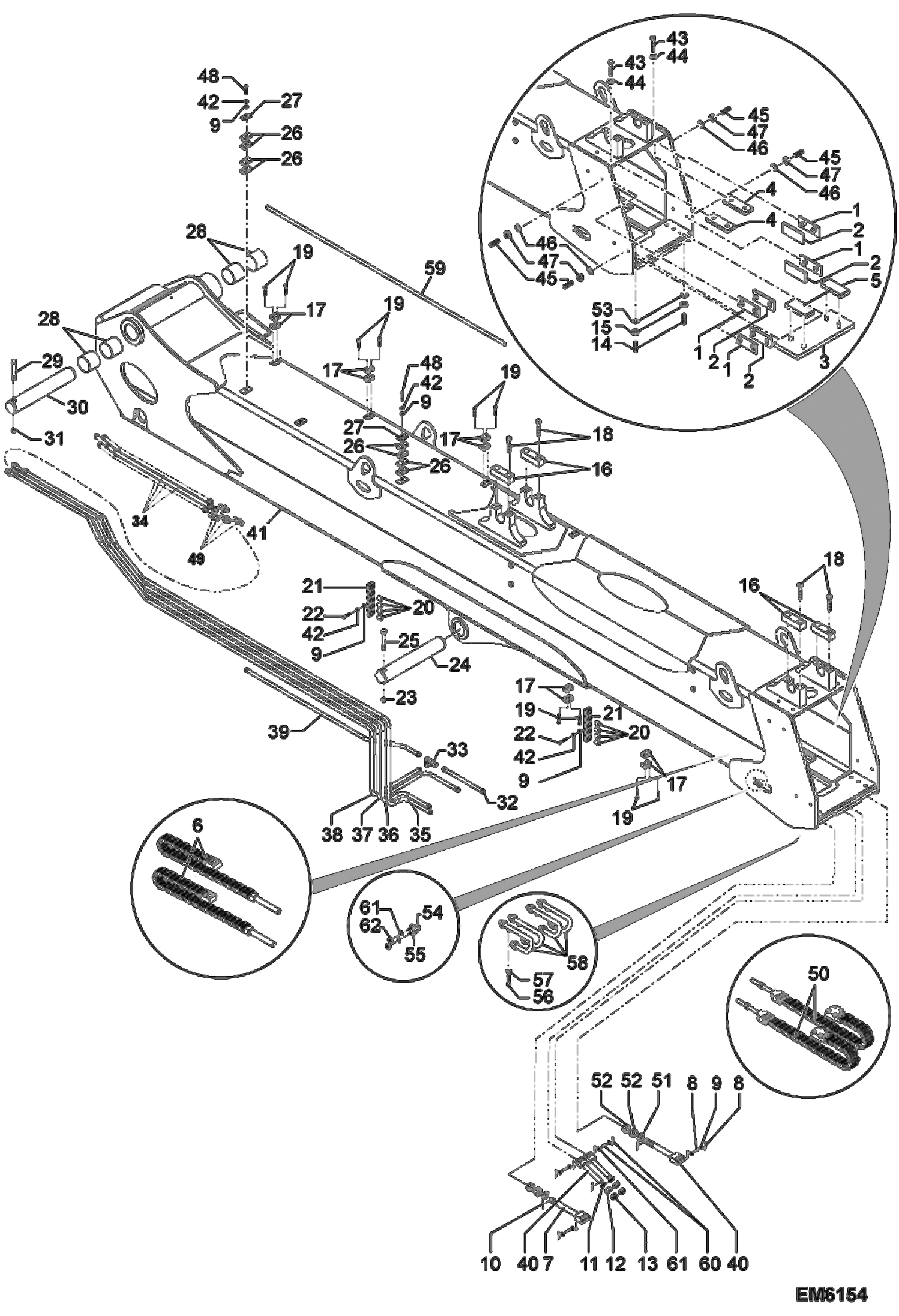

Запчасти Bobcat TR40250 FIXED BOOM MAIN FRAME

1

7020575

SPACER

2

7020577

PAD, WEAR

3

7020588

PLATE

4

7020589

PAD, WEAR

5

7020585

PAD, WEAR

6

7014965

CHAIN

7

7021563

TENSIONER, CHAIN

8

7021565

PIN, LOCK

9

7018287

WASHER

10

7021572

PIN, COTTER

11

7020206

WASHER

12

7020582

NUT

13

7021449

NUT

14

7020581

PIN, DOWEL

15

7020582

NUT

16

7015045

PLATE, SAFETY

17

7021569

COLLAR

18

7020590

SCREW

19

7018324

SCREW

20

7014984

BUSHING

21

7014983

BRACKET

22

7019670

SCREW

23

7014559

NUT

24

7014906

PIN

25

7014539

SCREW

26

7014978

COLLAR

27

7014982

PLATE, SAFETY

28

7015006

BUSHING

29

7014541

SCREW

30

7014908

PIN

31

7014560

SCREW

32

7014874

PIPE

33

7021419

FITTING, HYD TEE

34

7014875

PIPE

35

7014887

PIPE

36

7014885

PIPE

37

7014889

PIPE

38

7014884

PIPE

39

7014878

PIPE

40

7021562

TENSIONER, CHAIN

41

7014589

BOOM, FIXED

42

7019739

WASHER

43

7019682

SCREW

44

7020214

WASHER

45

7020579

PIN, DOWEL

46

7020580

WASHER

47

7019729

NUT

48

7021428

SCREW

49

7021417

FITTING, HYD

50

7014964

CHAIN

51

7020205

WASHER

52

7021450

NUT

53

7020583

WASHER

54

7014980

CLAMP

55

7014969

COLLAR

56

7019675

SCREW

57

7019741

WASHER

58

7014872

PIPE

59

7015190

PIPE

60

7021564

PIN, LOCK

61

7018061

WASHER

62

7021452

NUT
