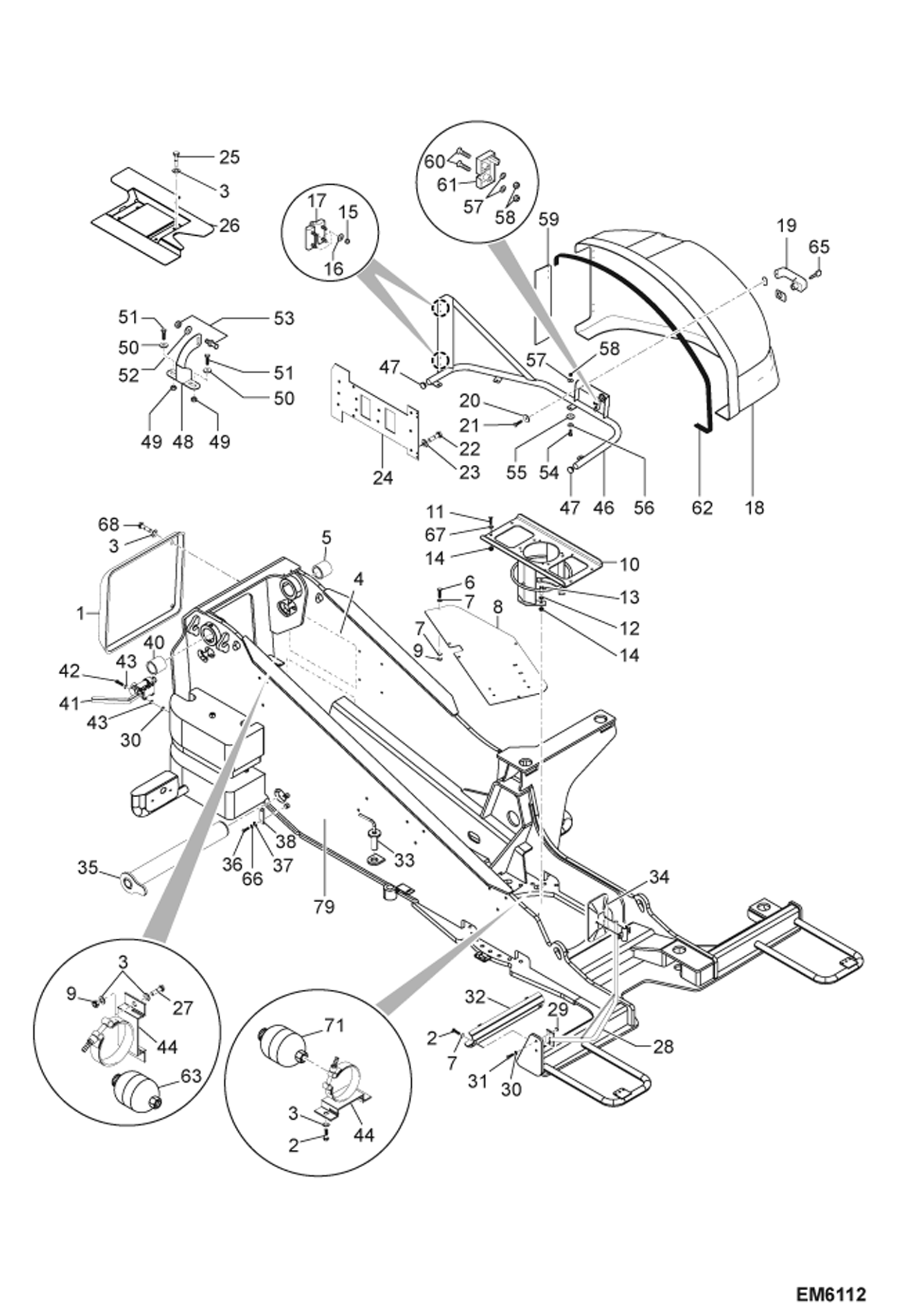

Запчасти Bobcat TR40250 FRAME, SUPPORTS & COWLING MAIN FRAME

1

7019783

COWL, REAR Was 7014617 - C

2

7014534

SCREW

3

7018162

WASHER

4

7021459

COUNTERWEIGHT, LH

5

7021541

BUSHING

6

7014535

SCREW

7

7018162

WASHER

8

7020170

BOARD, FOOT Was 7015021 - B

9

NUT NLA Was 7014561 - A

10

7021474

SUPPORT Was 7014594 - B

11

7019684

SCREW

12

7019749

WASHER

13

7018131

SCREW

14

7018132

NUT

15

7018059

NUT

16

7018133

WASHER

17

7014970

HINGE

18

7020066

COWL Was 7014924 - B

19

7014972

HANDLE

20

7019753

WASHER

21

7019667

SCREW

22

7018129

SCREW

23

7018287

WASHER

24

7019768

SUPPORT Was 7014599 - B

25

7014534

SCREW

26

7021461

HOUSING Was 7014579 - B

27

BOLT NLA Was 7014536 - A

28

7019779

SUPPORT Was 7014609 - A

29

7014562

NUT

30

7018287

WASHER

31

7019676

SCREW

32

7015034

SUPPORT

33

7014610

PIN

34

7014651

MIRROR, REAR VIEW

35

7014907

PIN

36

7014535

SCREW

37

7018162

WASHER

38

7015022

PLATE, SAFETY

40

7021542

BUSHING

41

7014950

PUMP

42

7019711

SCREW

43

7018287

WASHER

44

7014987

SUPPORT

44

7031296

CLAMP

46

7020143

FRAME Was 7014595 - B

47

7020049

PLUG

48

7019767

PIN

49

NUT, SELF LOCKING NLA Was 7014561 - A

50

7018162

WASHER

51

7014535

SCREW

52

7020214

WASHER

53

7020041

BRACKET

54

7014535

SCREW

55

7020208

WASHER, RUBBER

56

7018162

WASHER

57

7018061

WASHER

58

NUT Was 7014561 - A

59

7020067

HOUSING Was 7014925 - B

60

7019726

SCREW

61

7014910

LOCK

62

7022926

SEAL Was 7014915 - C

63

7014657

ACCUMULATOR

63

7031295

ACCUMULATOR

65

7014083

KEY

66

7019739

WASHER

67

7019742

WASHER

68

7019668

SCREW

71

7014656

ACCUMULATOR

79

7031299

FRAME Was 7014592 - A

79

7031265

FRAME
