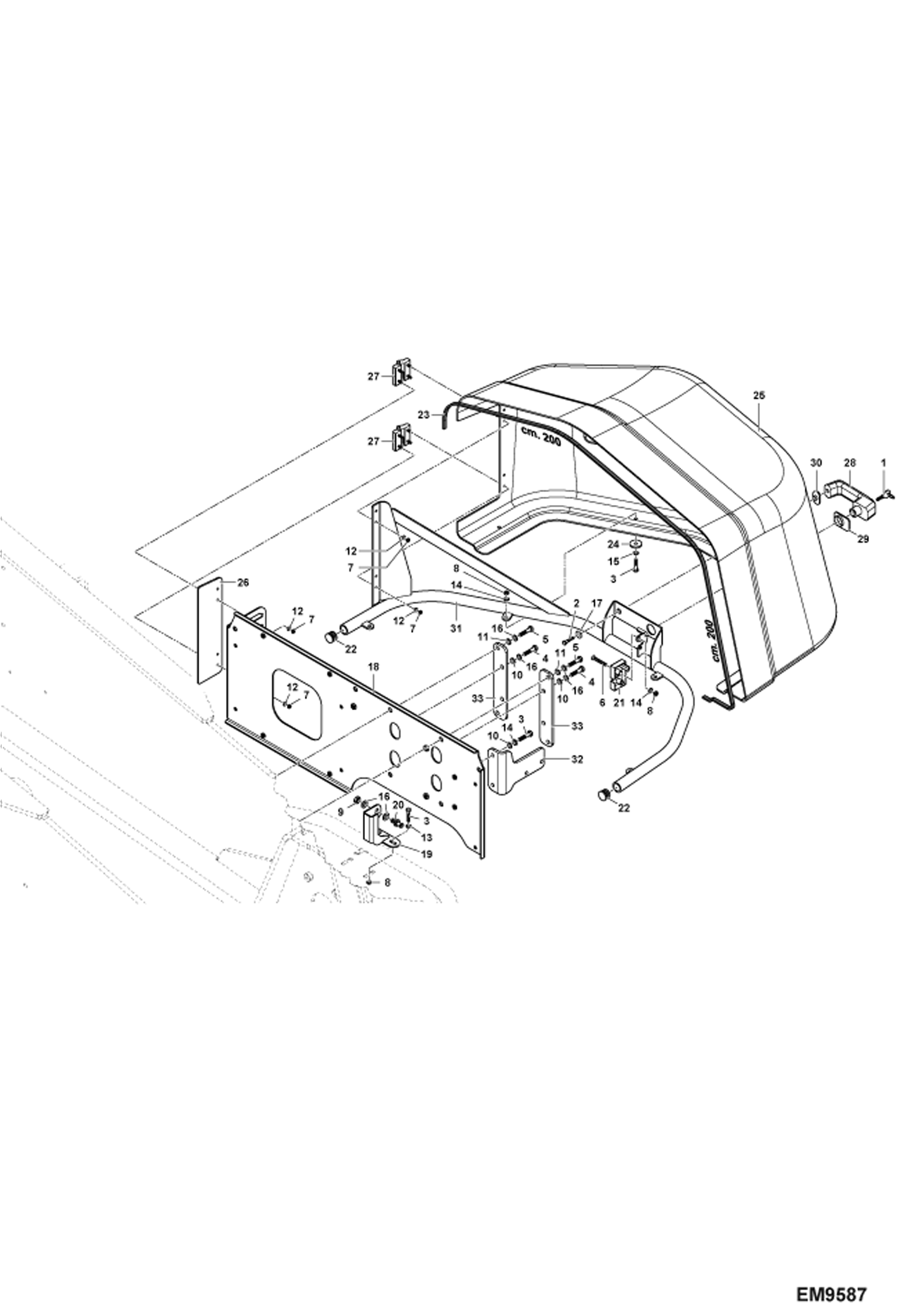

Запчасти Bobcat TR38160 BONNET MAIN FRAME

1

7014083

KEY

2

7019667

SCREW

3

7014535

SCREW

4

7019681

STUD, HOLLOW

5

7019682

SCREW

6

7019726

SCREW

7

7018059

NUT

8

NUT, SELF LOCKING NLA Was 7014561 - A

9

7018132

NUT

10

7019739

WASHER

11

7019740

WASHER

12

7018133

WASHER

13

7018162

WASHER

14

7018061

WASHER

15

7019748

WASHER

16

7019749

WASHER

17

7019753

WASHER

18

7019768

SUPPORT

19

7014603

SUPPORT

20

7020041

BRACKET

21

7014910

LOCK

22

7020049

PLUG

23

7022926

SEAL

24

7020208

WASHER, RUBBER

25

7020066

COWL

26

7020067

HOUSING

27

7014970

HINGE

28

7014972

HANDLE

29

7026768

GASKET

30

7026769

GASKET

31

7020143

FRAME

32

7027023

SUPPORT

33

7026920

PLATE
