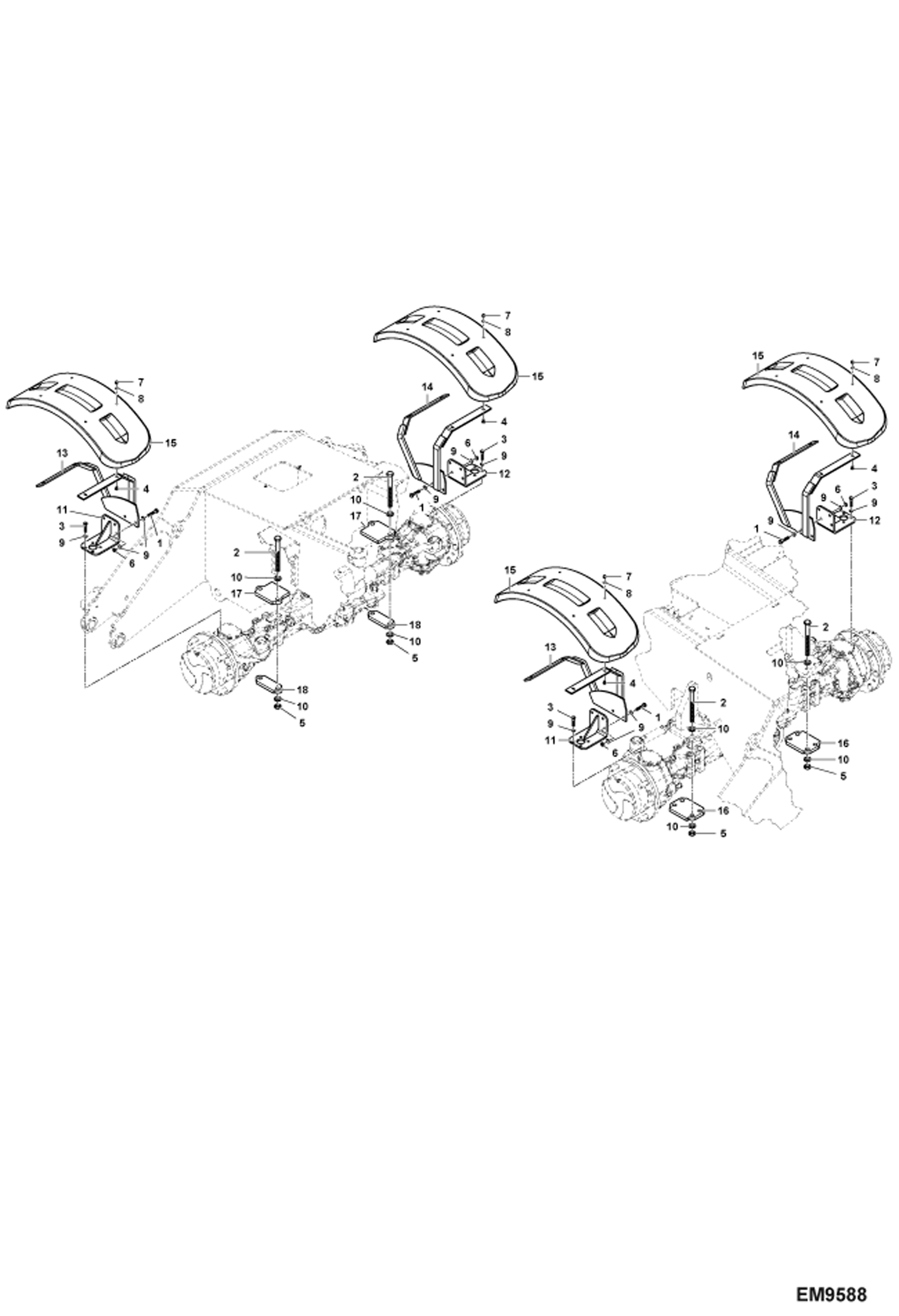

Запчасти Bobcat TR38160 MUDGUARD MAIN FRAME

1

7019684

SCREW

2

7019689

SCREW

3

7019692

SCREW

4

7019727

SCREW

5

7019732

NUT, SELF LOCKING

6

7018132

NUT

7

7019736

NUT

8

7018162

WASHER

9

7019749

WASHER

10

7020207

WASHER

11

7019777

SUPPORT, FRAME FRONT RIGHT MUDGUARD

12

7019778

SUPPORT, FRAME FRONT LEFT MUDGUARD

13

7019780

SUPPORT, RIGHT

14

7019781

SUPPORT, LEFT

15

7020058

FENDER

16

7020171

PLATE

17

7020172

PLATE

18

7020173

PLATE
