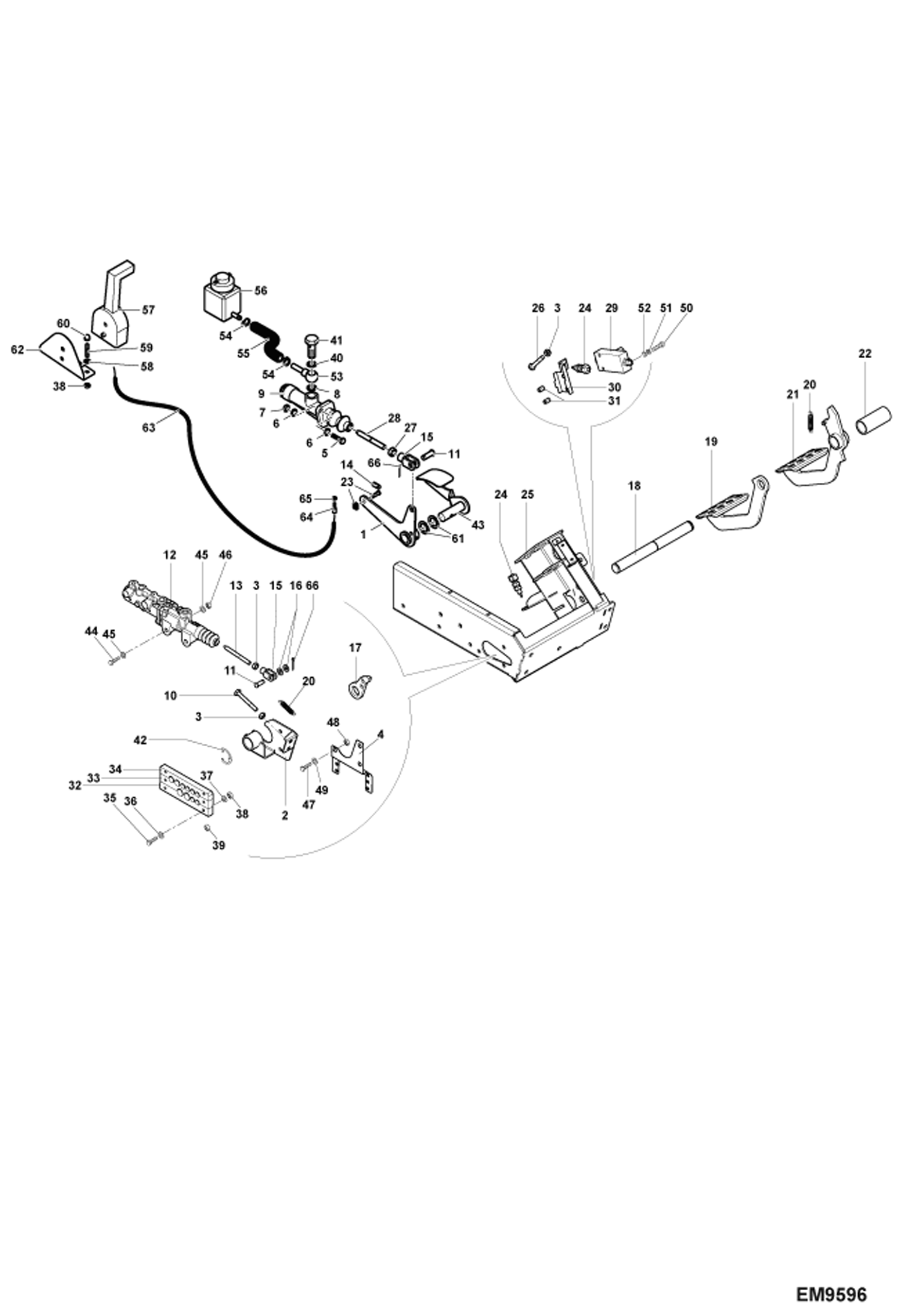

Запчасти Bobcat TR38160 PEDALS MAIN FRAME

1

7023850

ROD

2

7013859

PLATE, SUPPORT

3

7013888

NUT

4

7013932

PLATE

5

BOLT NLA Was 7014536 - A

6

7018061

WASHER

7

7023838

NUT

8

7018219

WASHER

9

7023857

PUMP

10

7013863

SCREW

11

7013755

PIN

12

7014654

CYLINDER, BRAKE MASTER

13

7013839

PIN

14

7023855

CLAMP

15

7013754

YOKE

16

7013919

WASHER

17

7013931

PLATE

18

7013930

PIN

19

7013844

PEDAL

20

7013825

SPRING

21

7013845

PEDAL

22

7013928

PIN

23

7023856

CLAMP

24

7014643

SWITCH

25

7013927

HOUSING

26

7013869

SCREW

27

7023854

NUT

28

7023853

SHAFT

29

7014698

SWITCH, INCHING

30

7013929

HOUSING

31

7013920

SPACER

32

7013814

BRACKET

33

7013815

BRACKET

34

7013816

BRACKET

35

7018045

SCREW

36

7019747

WASHER

37

7013910

WASHER

38

7018059

NUT

39

7013801

PLUG

40

7023839

WASHER

41

7019818

BOLT, BANJO

42

7013918

WASHER

43

7023852

PEDAL

44

7013870

SCREW

45

7013901

WASHER

46

7013890

NUT

47

7013868

SCREW

48

7013889

NUT

49

7013909

WASHER

50

7013866

SCREW

51

7013864

WASHER

52

7013907

WASHER

53

7023840

FITTING

54

7021566

CLAMP, HOSE

55

7023841

HOSE

56

7023842

TANK

57

7024686

LEVER

58

7018133

WASHER

59

7023844

RIVET

60

7013803

NUT, COVER

61

7023851

BUSHING

62

7023845

HOLDER

63

CABLE NLA Was 7023846 - C

64

7023847

SCREW

65

7023848

NUT

66

7023849

PIN, COTTER
