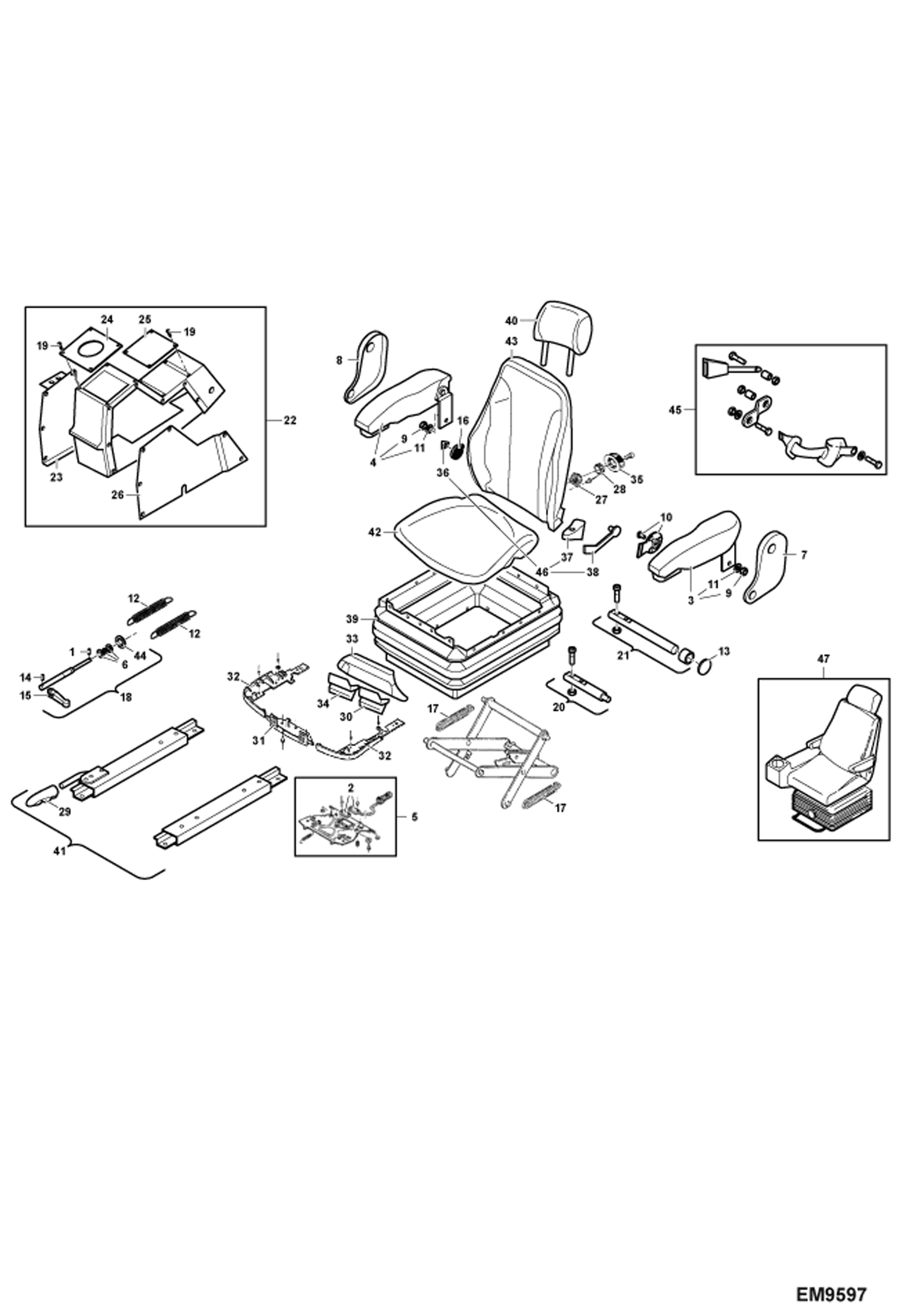

Запчасти Bobcat TR38160 SEAT MAIN FRAME

1

PIN NLA Was 7013669 - A

2

7027024

SWITCH

3

7013670

ARM, LH W/Ref. 9-11

4

7013671

ARM, RH W/Ref. 9-11

5

7026814

KIT, MICRO

6

WASHER NLA Was 7013673 - A

7

7013674

HOUSING, LH

8

7013675

HOUSING, RH

9

7013676

NUT

10

STOP NLA Was 7013677 - A

11

7013678

WASHER

12

7013679

SPRING

13

7013680

STOP

14

PIN NLA Was 7013682 - A

15

7013685

LEVER

16

7013686

STOP

17

7027000

SPRING

18

7013687

DAMPER W/Ref. 1, 6, 14-15 & 44

19

SCREW NLA Was 7013688 - A

20

7013689

BRACKET

21

7013690

BRACKET

22

7026653

HOUSING

23

7013694

PLATE

24

7015043

PLATE

25

PLATE NLA Was 7013696 - A

26

7013699

PLATE

27

SPRING, BRAKE NLA Was 7026654 - A

28

GEAR NLA Was 7026777 - A

29

7013701

NUT, RING

30

7013702

PLATE

31

7026652

BRACKET W/Ref. 13

32

7026707

COVER

33

7013703

PLATE

34

7013704

PLATE

35

7026786

HANDLE

36

PIN NLA Was 7013705 - A

37

7013706

LEVER

38

7013707

LEVER

39

7013708

BELLOW

40

7013709

REST, HEAD

41

7013710

SLIDER W/Ref. 29

42

7013711

SEAT

43

7013712

SEAT, BACK

44

WASHER NLA Was 7027049 - A

45

7026979

KIT, SEAT BELT

46

7020396

KIT, LEVER Ref. 36-38

47

7014931

SEAT, COMPLETE standard
